Karl mayer ZM - SP 1700/1000, ELC-O-TENS 170 Cm

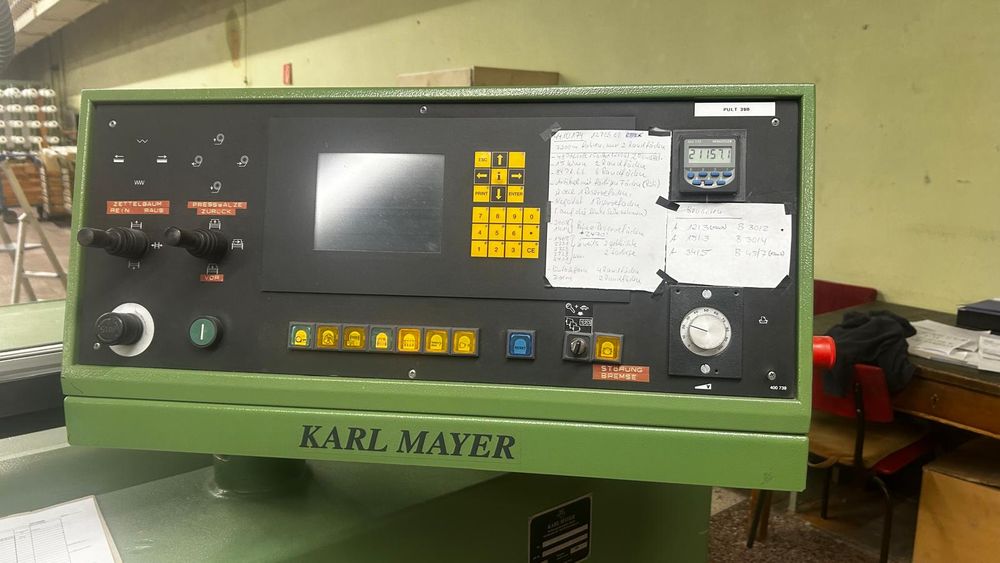

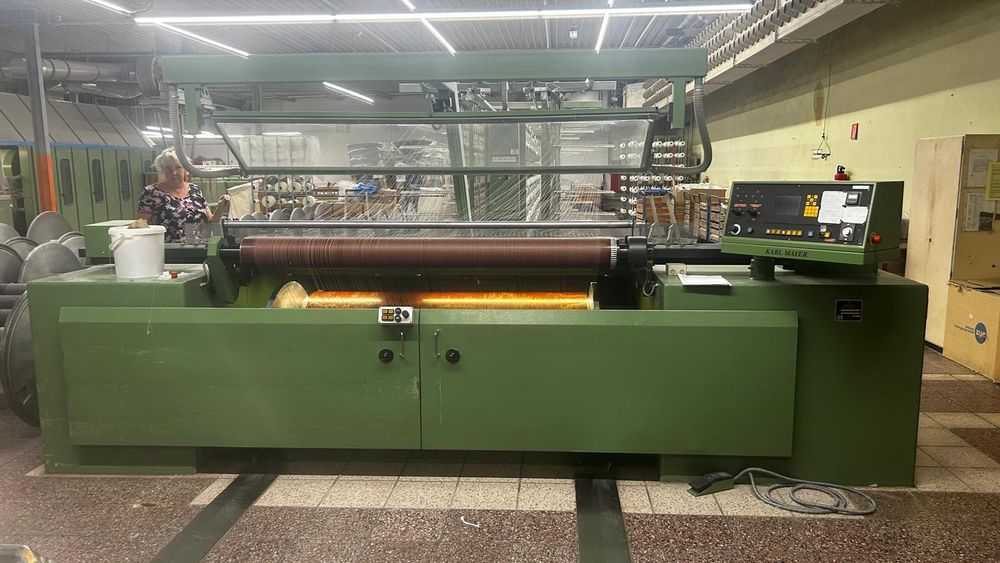

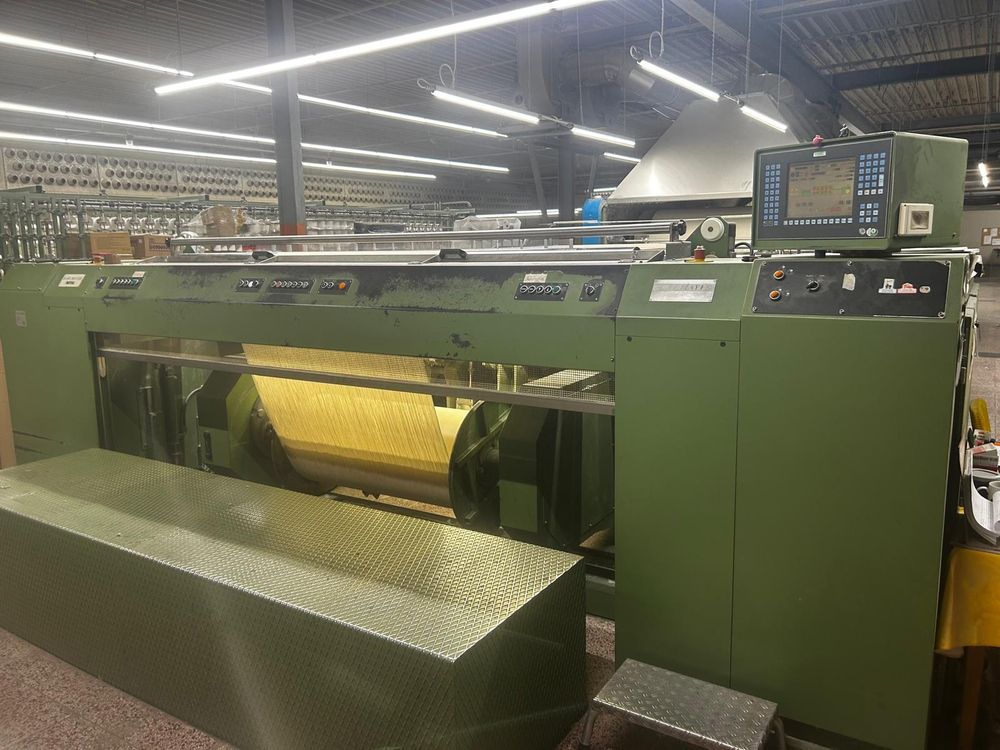

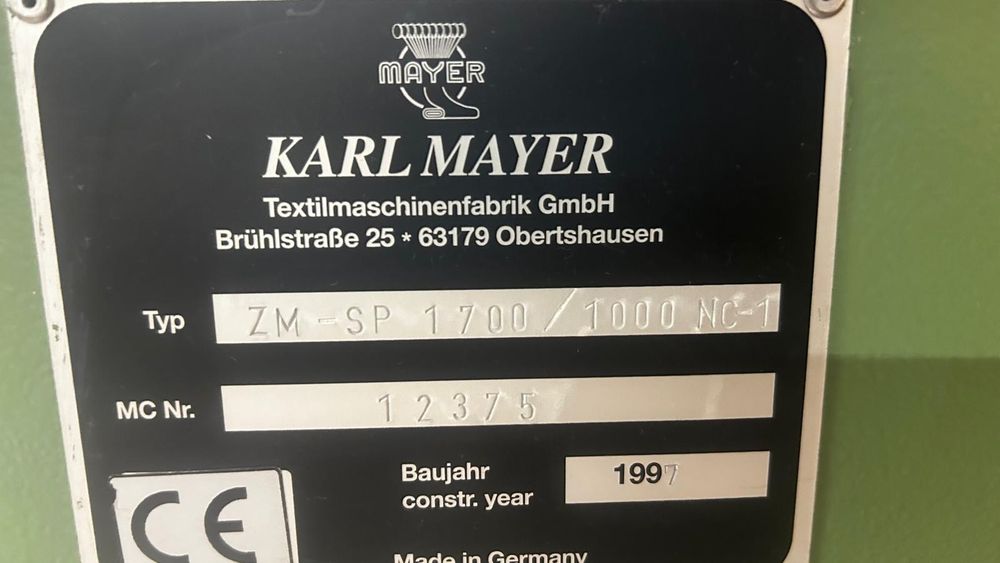

1x Karl Mayer Direct Warper – ZM – SP 1700/1000
year 1997, working width 170 cm
max. beam flange diam. 1.016 mm
with

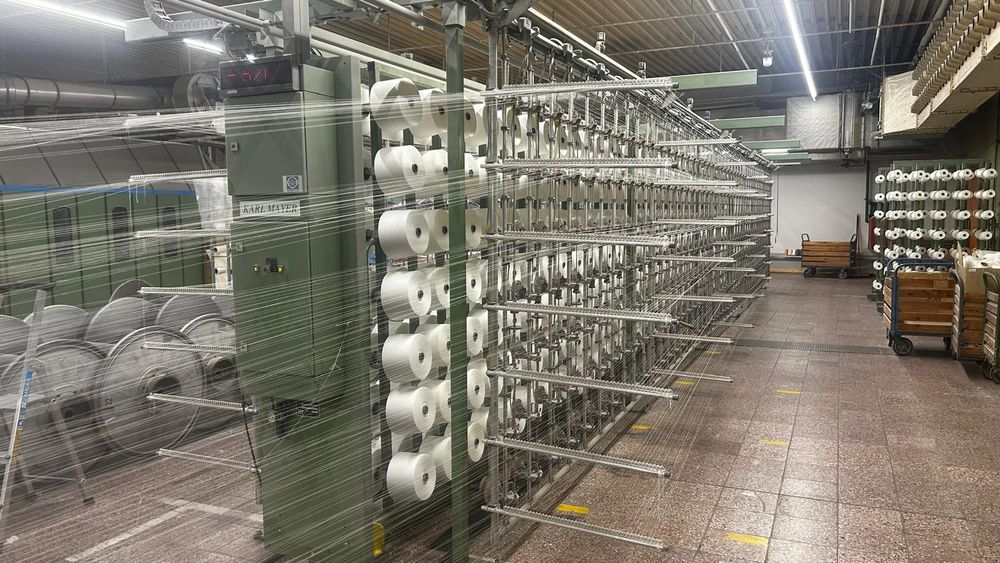

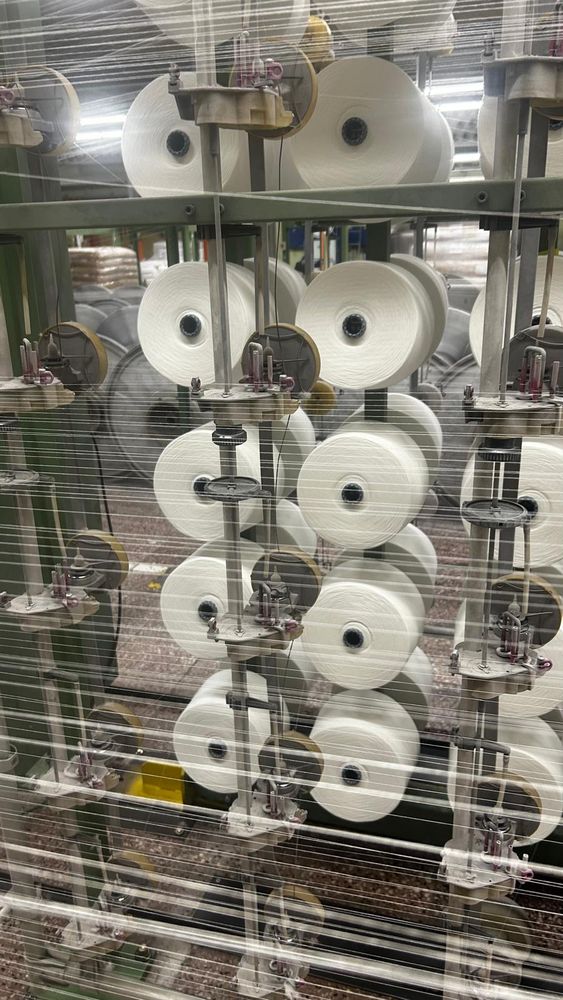

1 Karl Mayer warping creel, H-type, 630 creeling positions

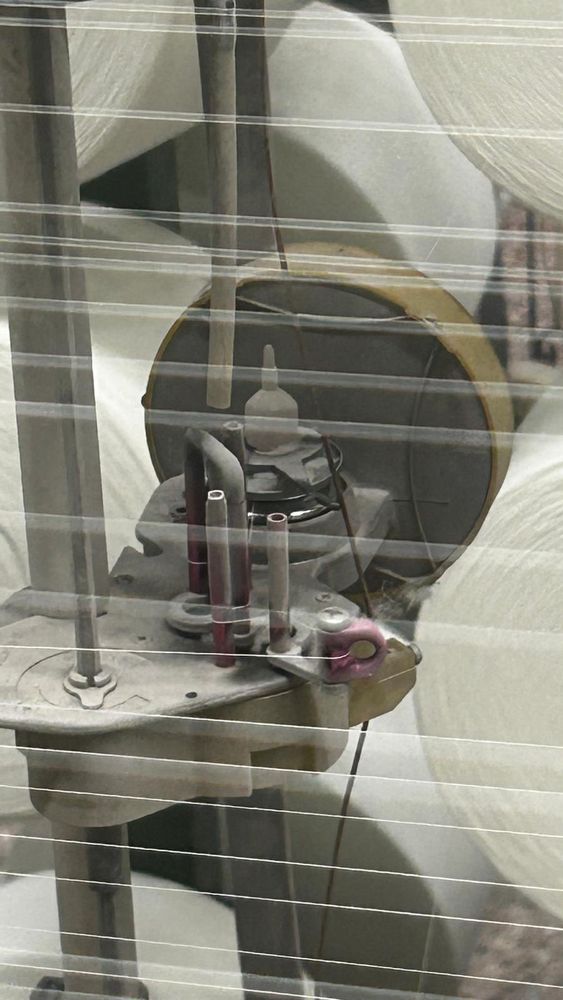

disc brakes, electr. stop motion
pitch 30 cm – adjustable

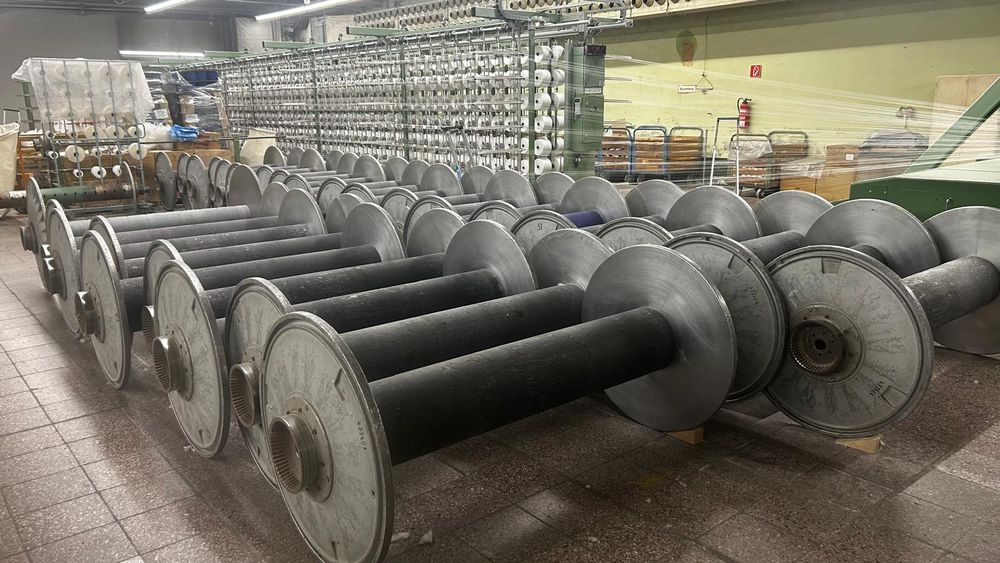

abt. 60-70 fractional beams (for direct warper and sizing)

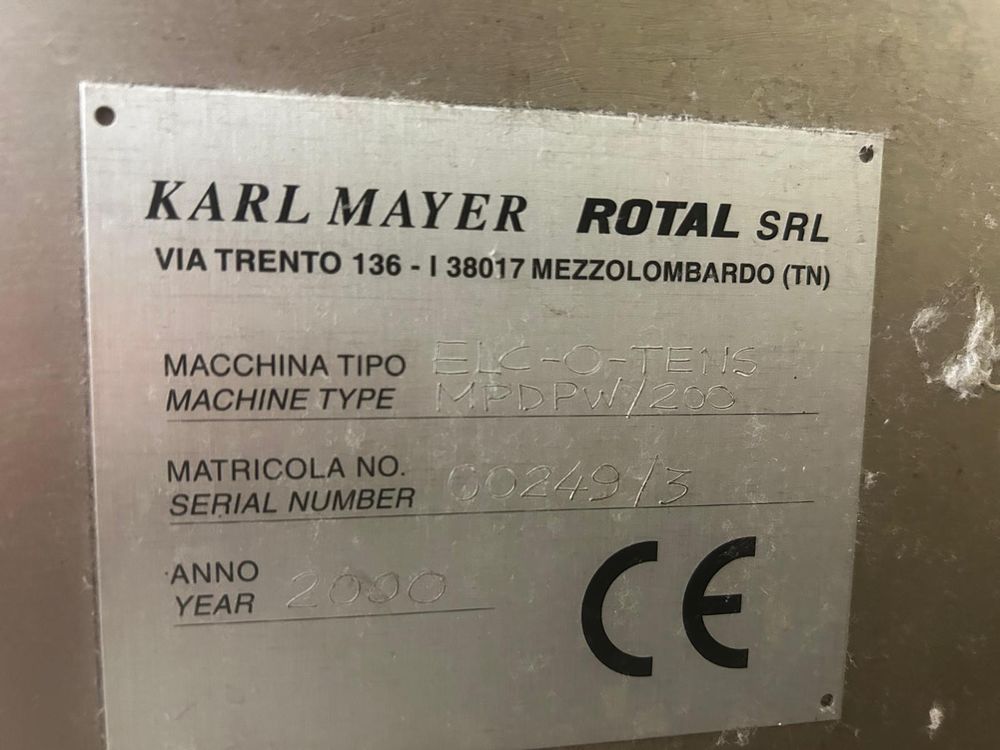

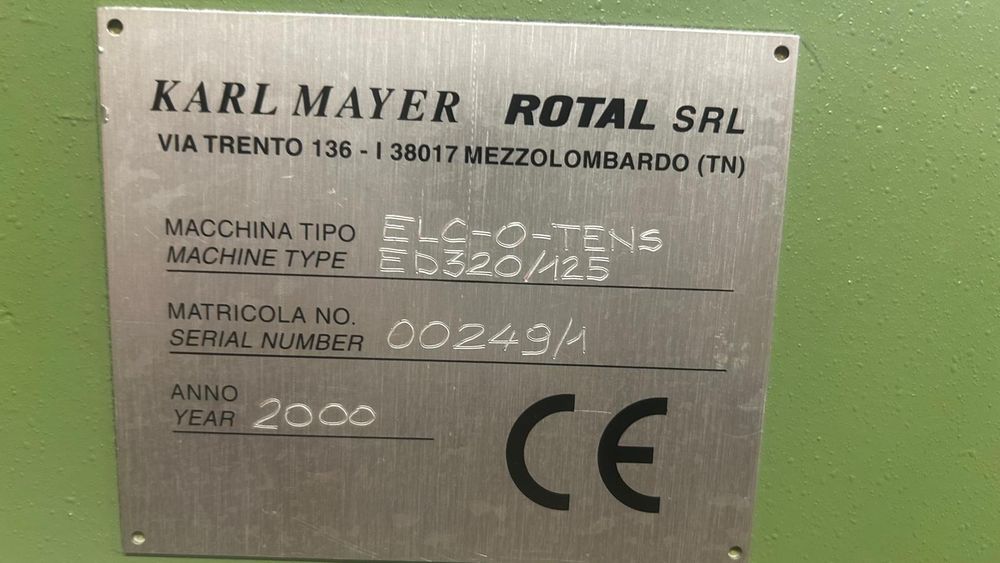

1 Karl Mayer Rotal Sizing machine, type ELC-O-TENS

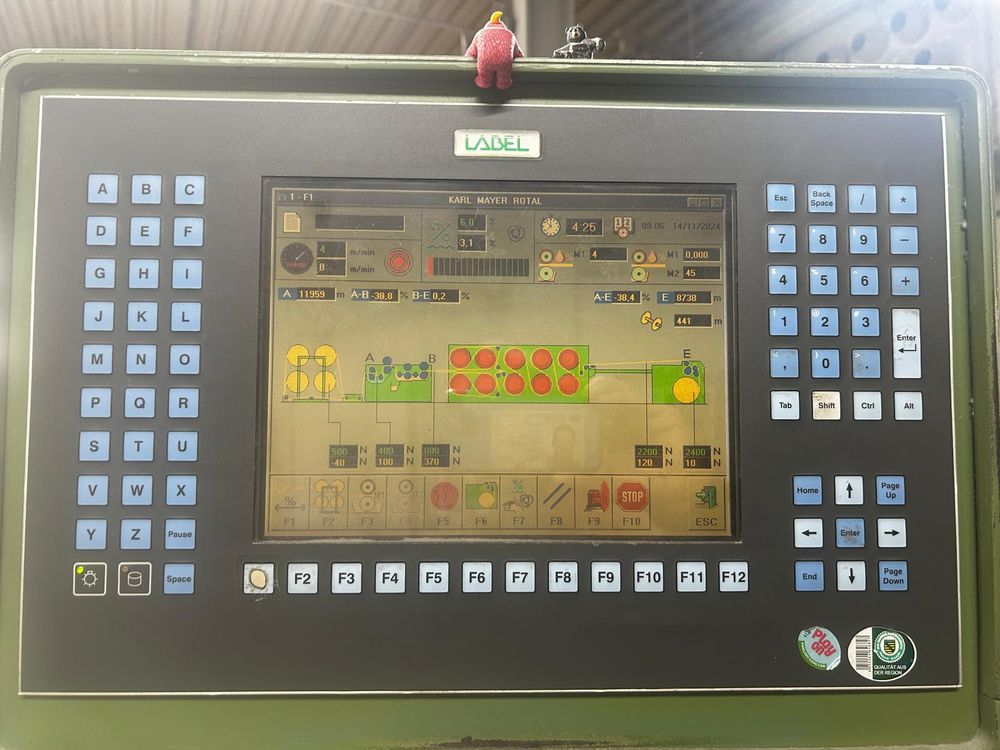

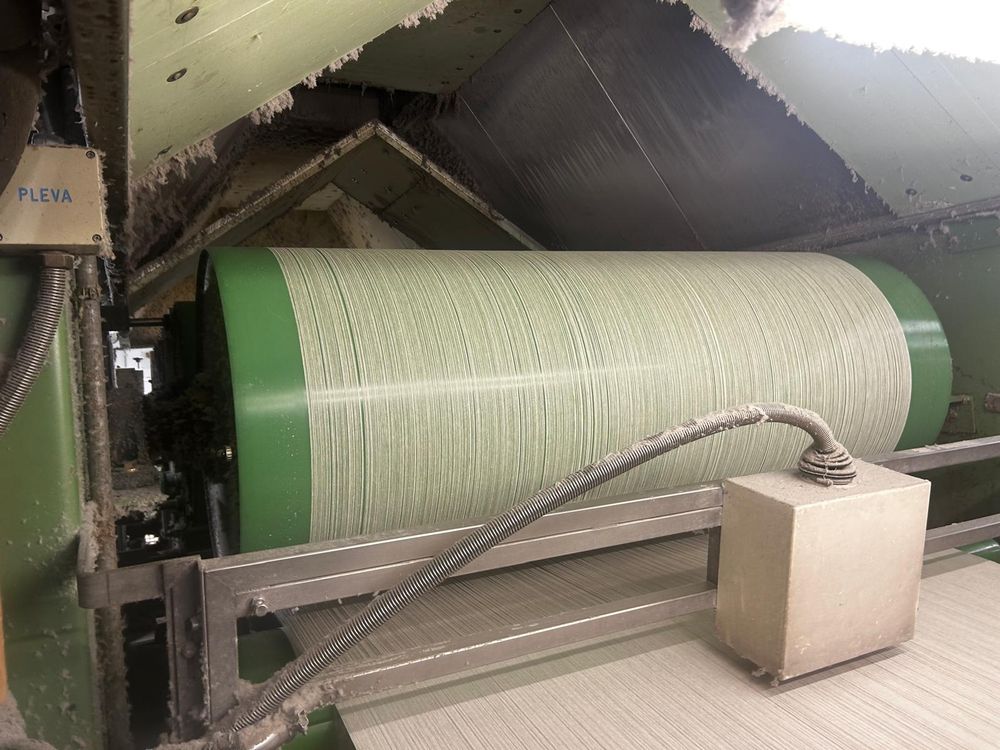

year 2000, with Pleva humidity and tension control

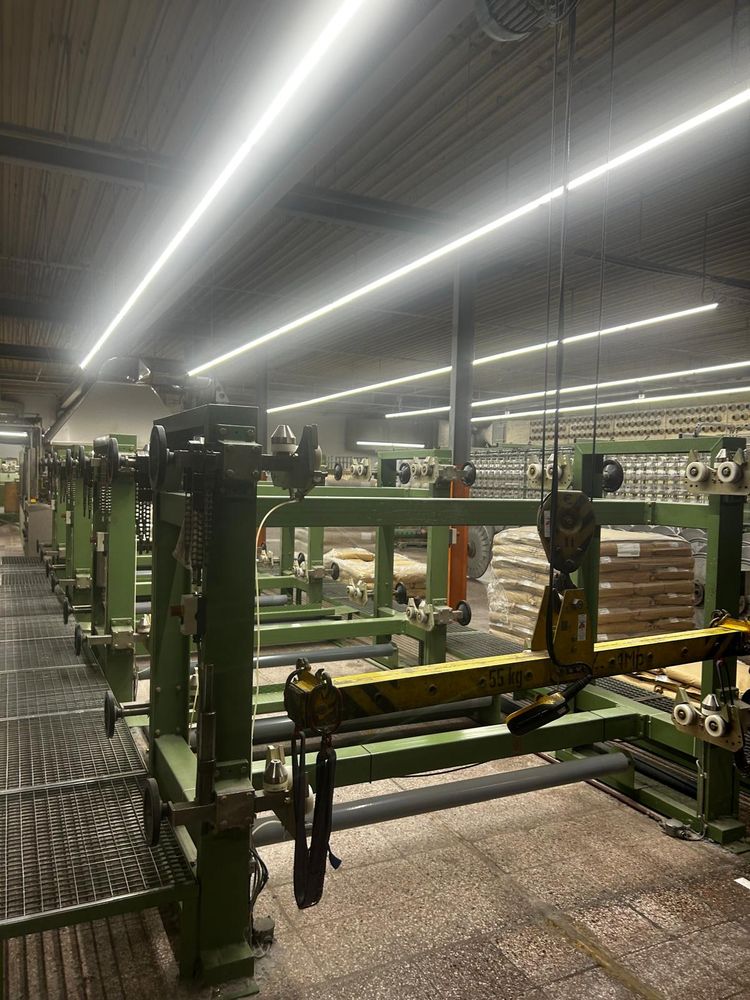

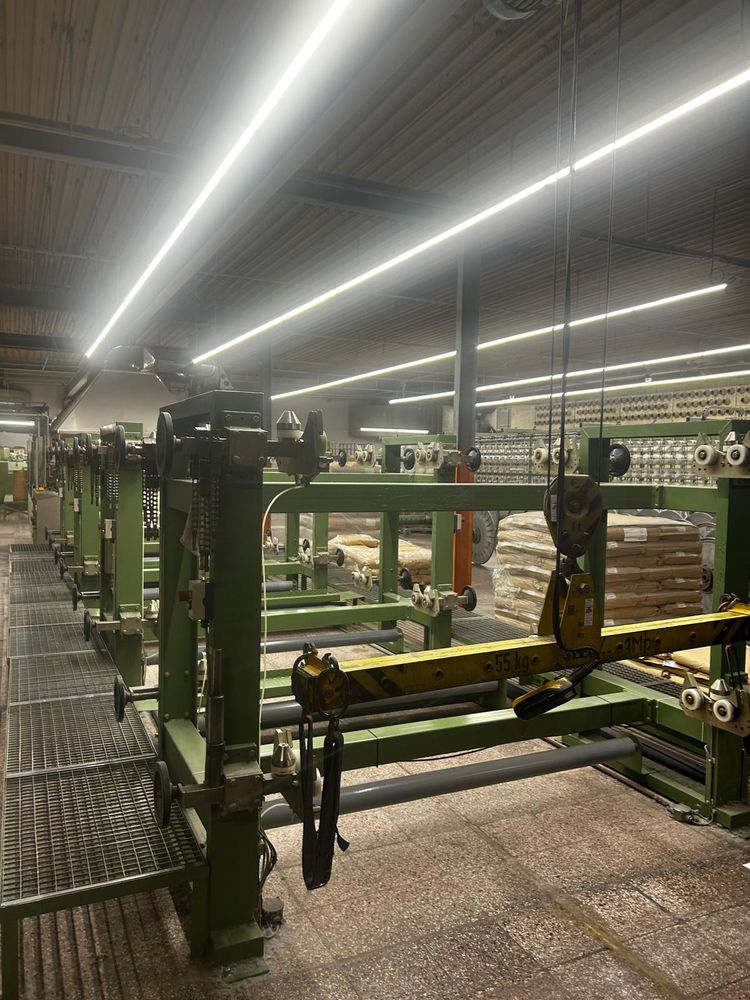

warp beam creel
for max. 16 warp beams
nom. working width 170 cm
max. beam flange Ø 1.016 mm
pneum. Brakes

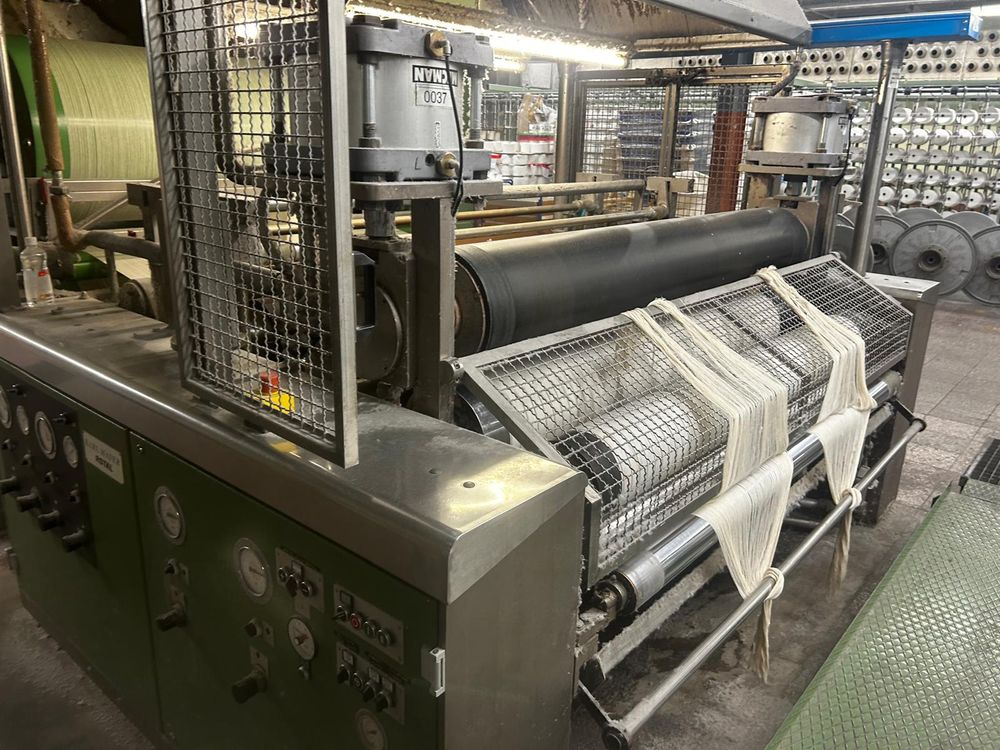

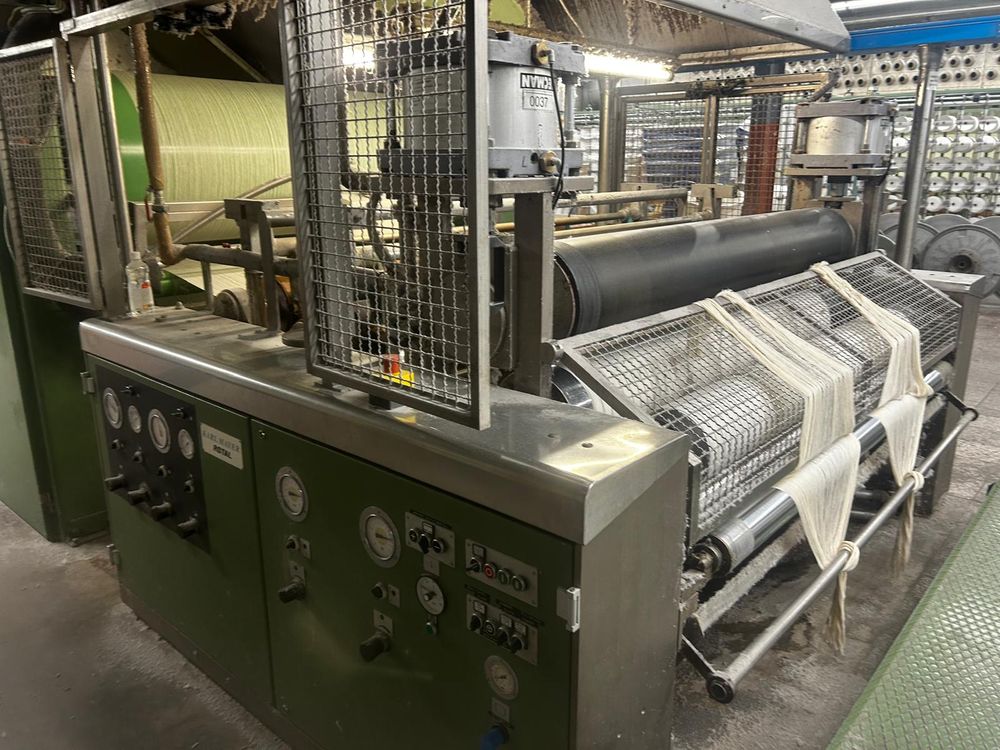

1 sizing double trough
nom. working width 170 cm
pre-wetting
double dip and squeeze roller pairs

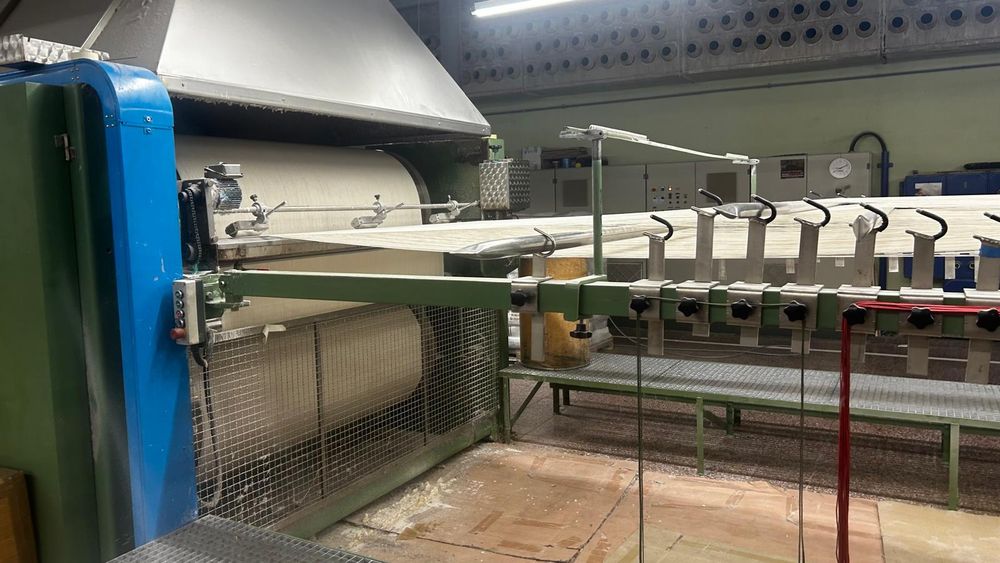

Cylinder Dryer
10 drying cylinder dia 800 mm
partitioning field abt. 4,5 mtrs.
Waxing device

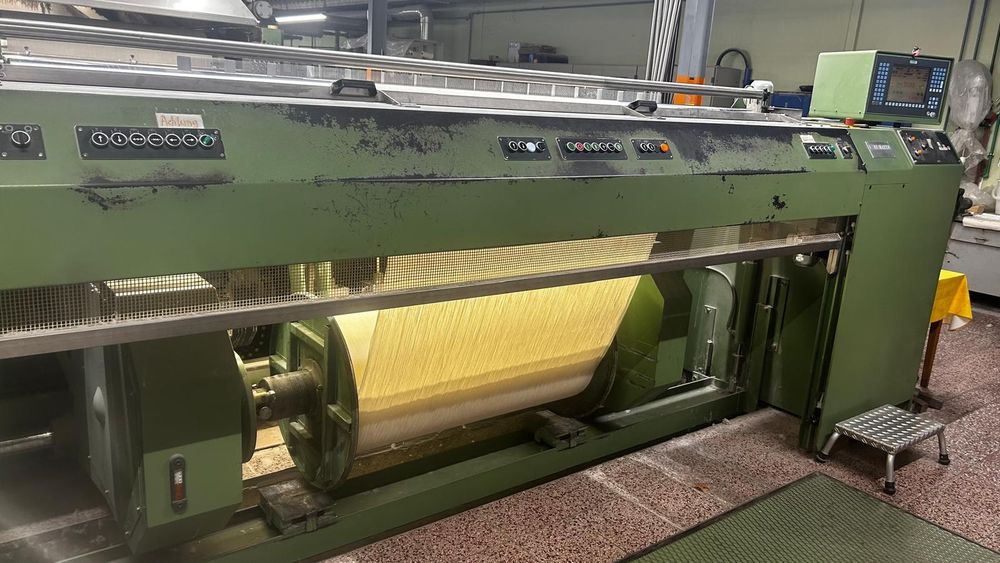

Beaming machine / headstock
max. nom. working width 240 cm
max. beam flange dia 1100 mm
speed up to 140 m/min
beam pressure device

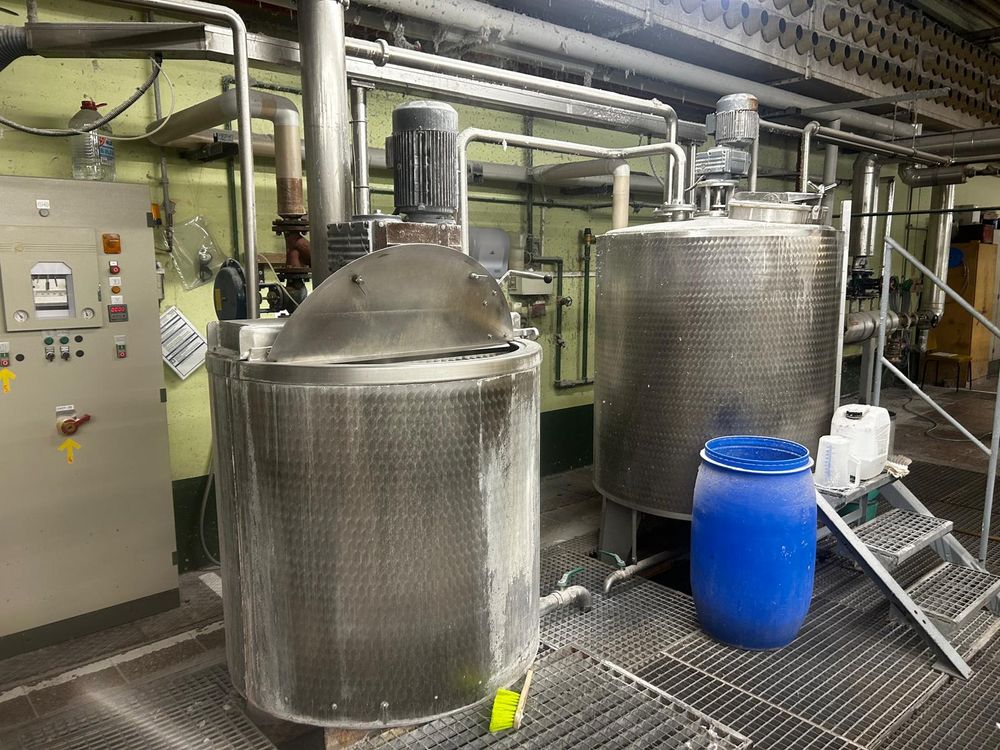

Size kitchen
turbo cooker
storage tank
