K36

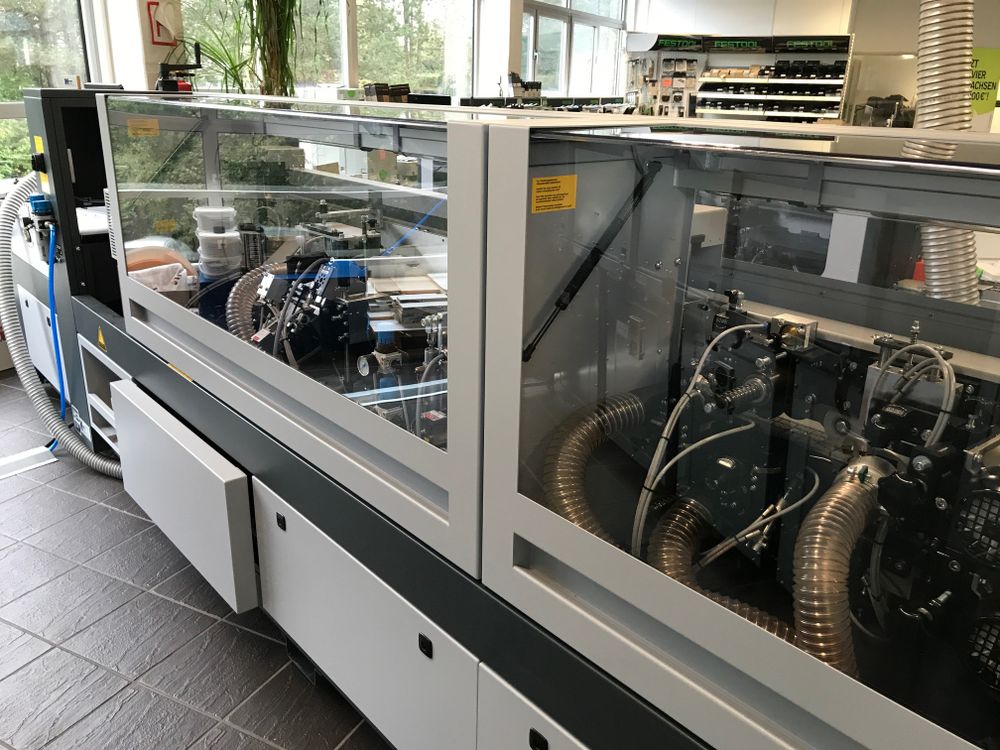

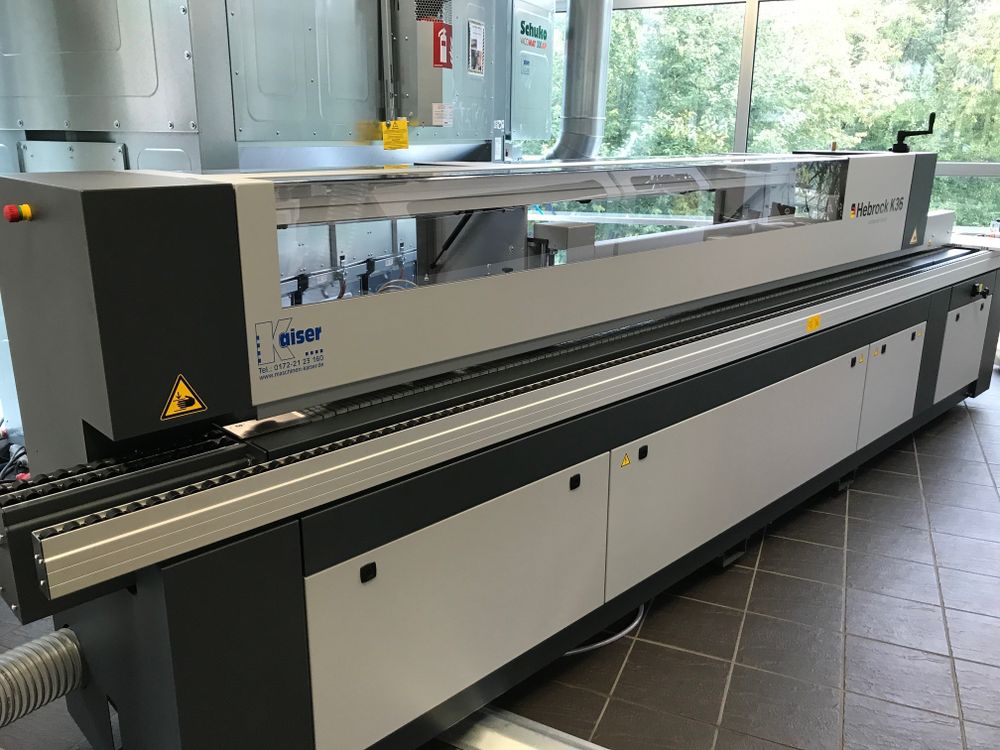

Hebrock Edge banding machine with PLC control (including touchscreen)
– Hot melt adhesive application to the workpiece for edge material up to 3 mm
– Jointing milling machine including DIA tool up to 3 mm milling depth
– Maintenance-free, coated glue pot with interchangeable pot preparation including glue discharge device
– HF crosscut saw station (approx. 16,000 rpm)
– HF milling station (approx. 16,000 rpm) with pneumatic milling adjustment
and interchangeable plate milling cutter (combined version)
– Corner rounding milling machine, radius scraper, surface scraper
(including pneumatic lifting device) cleaning station
– Robust chain drive
– Ball-bearing double roller top pressure, unit viewing window from the rear of the machine and operator side
– Signal lamp for workpiece sequence
– Extendable workpiece support, feed 10 m/min
– Gluing up to 60 mm workpiece kick

Equipment:
– Quick-change preparation for corner milling machine
– Additional change motor for corner milling machine with tooling
– Multi-radius scraper (R2/R1)
– Short workpieces (copying from 200 mm)
– Multitool (R2/R1) for HF milling station (only in conjunction with 36/30)
– Nesting
– Airtronic
– Release agent spray device
– Cleaning agent spray device (spraying plate)
– Protective spraying edge
– Pneumatic 3-point adjustment
