Johnford DMC-2100

Reference #30794

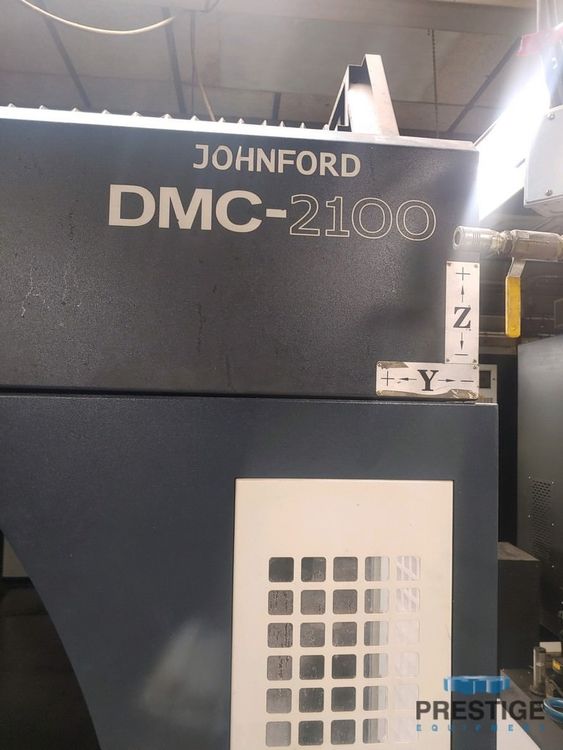

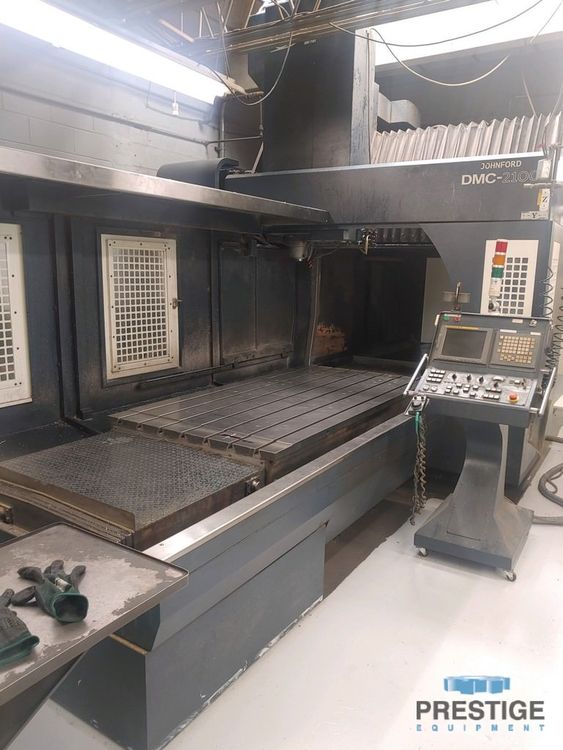

JOHNFORD DMC-2100 CNC Double Column Vertical Machining Center

FEATURES:

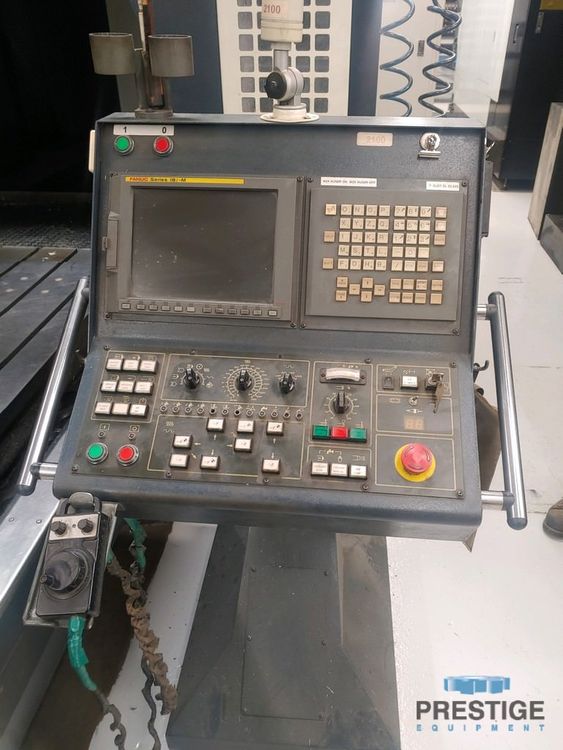

FANUC 18iMB CNC Control
24 Station Automatic Tool Changer
CAPACITY:

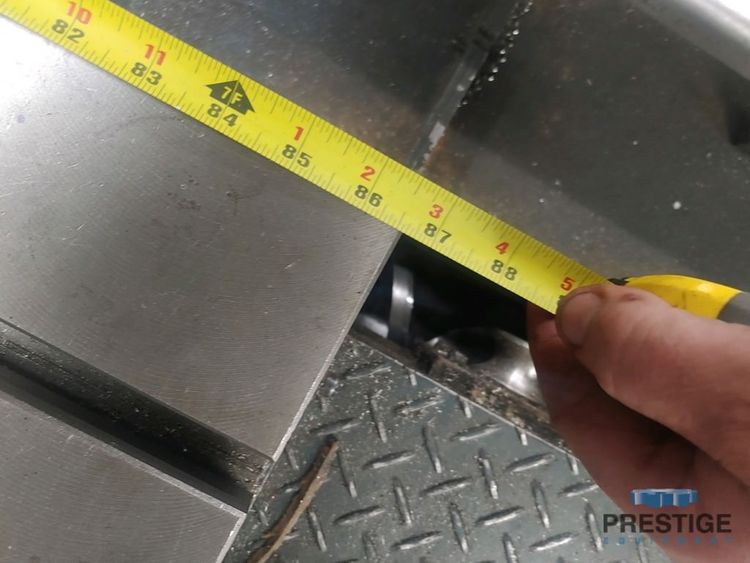

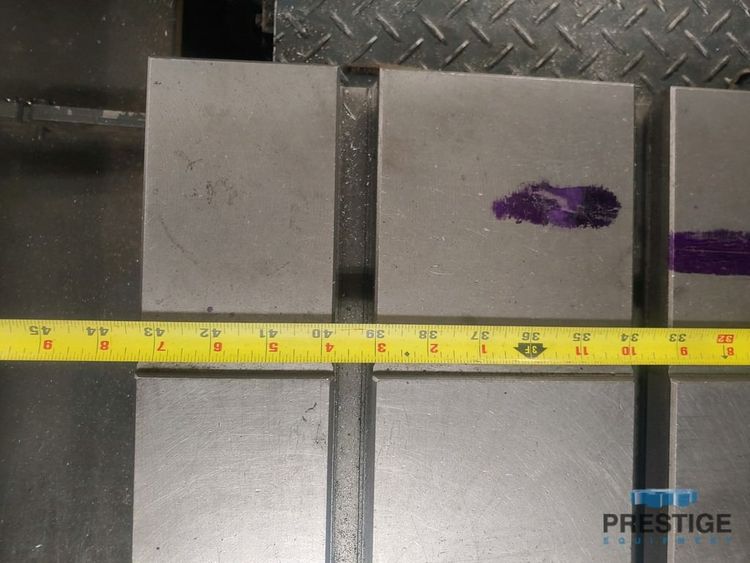

Table Size ............................ 59" x 86.5"
Table Load Capacity ................... 22,000 lbs
X-Axis Travel ......................... 83"
Y-Axis Travel ......................... 70"
Z-Axis Travel ......................... 42"
Spindle Speeds ........................ 8,000 RPM
Spindle Taper ......................... #40
Spindle Motor, 2- Ranges .............. 25 HP
Automatic Tool Changer Capacity ....... 24 ATC
Machine Weight, Approx ................ 52,000 lbs

EQUIPPED WITH:
FANUC 18iMB CNC Control
24-Position Automatic Tool Changer

NOTE:
Inspect In Plant Under Power
