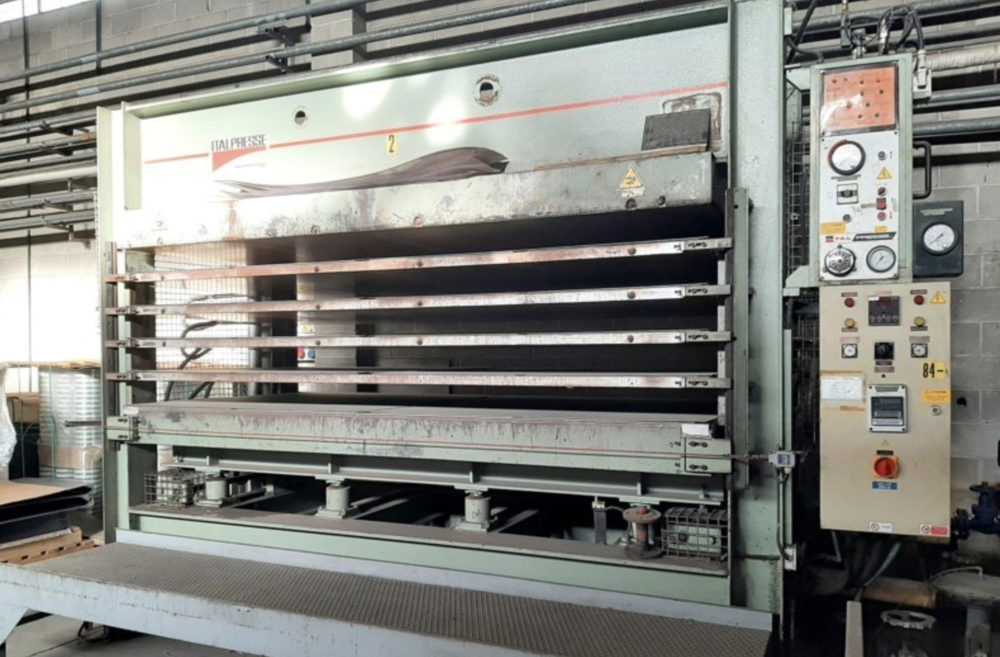

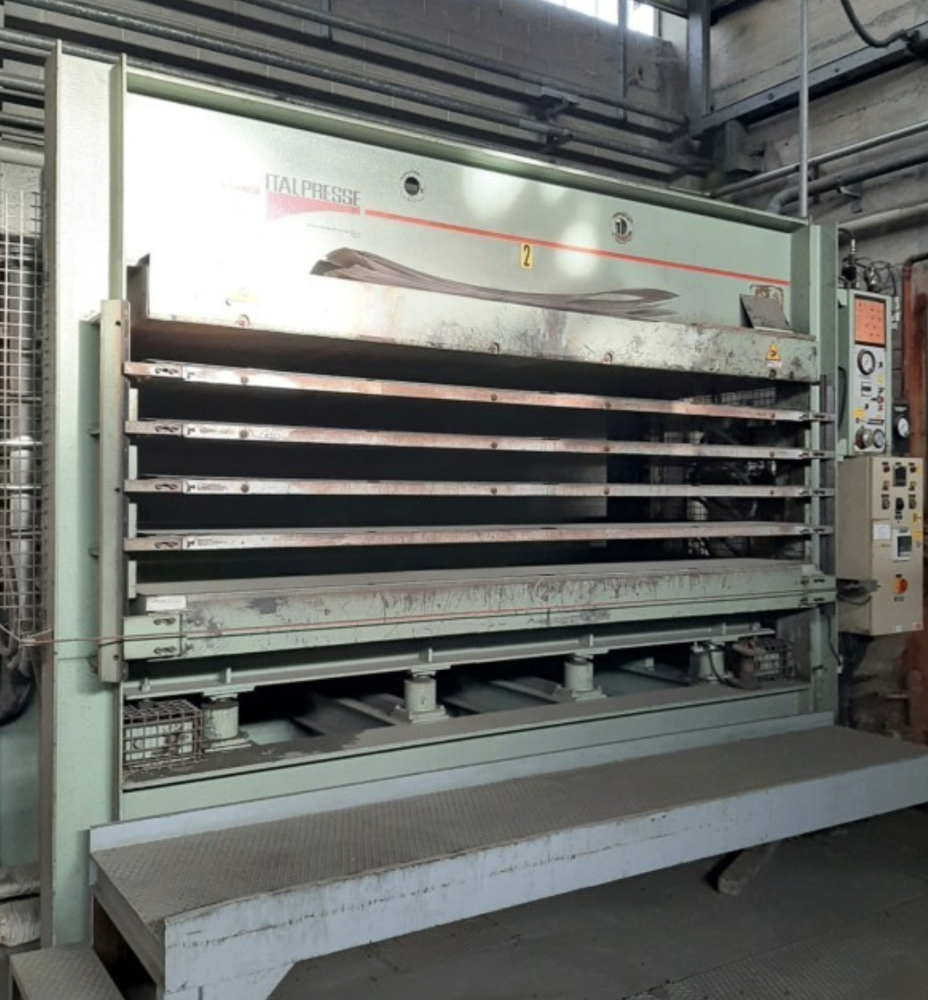

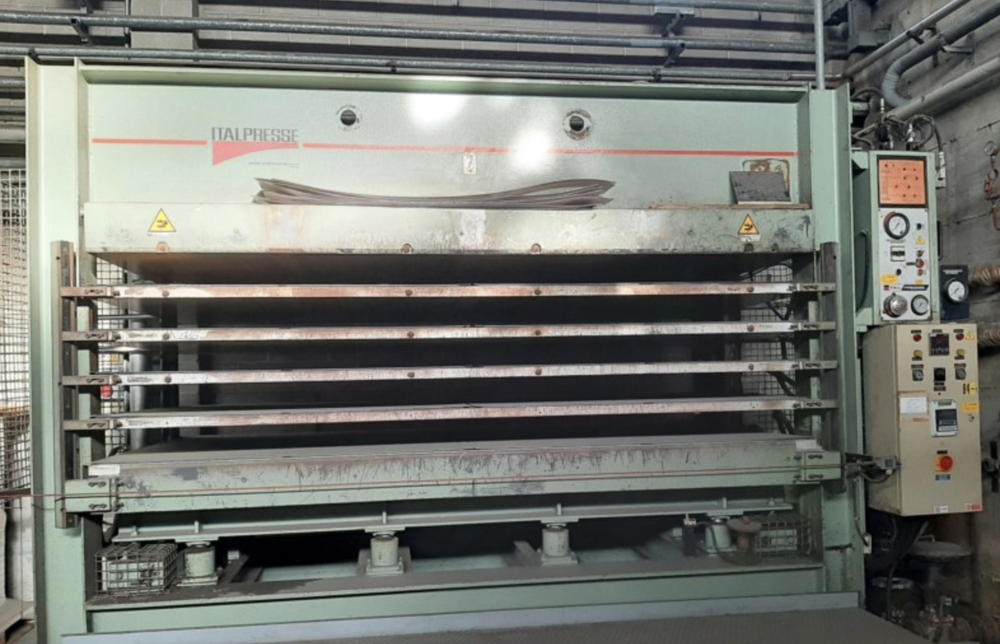

Italpresse SCF/8-S

Hydraulic press for hot/cold cycle for wood materials,
composite materials, plastics and various materials

Technical data:
Platen size mm 3000 x 1500
N° 6 Drilled solid steel platens thickness mm 38/40 - Coated in aluminum
N° 5 Daylight openings
N° 4 intermediate platens
Cylinder stroke mm 450
Press space mm 90
Platen movement from bottom to top
Max working temperature 120°
Platen heating by water or steam
Total thrust ton 120
Specific pressure on 80% of the surface area kg/sq cm 3,3
N° 8 thrust pistons diameter mm 70
Hydraulic unit power Hp 4
Timer for timed opening
Overall dimensions mm 4200 x 1800 x 2900 h
Weight kg 13000 approx
