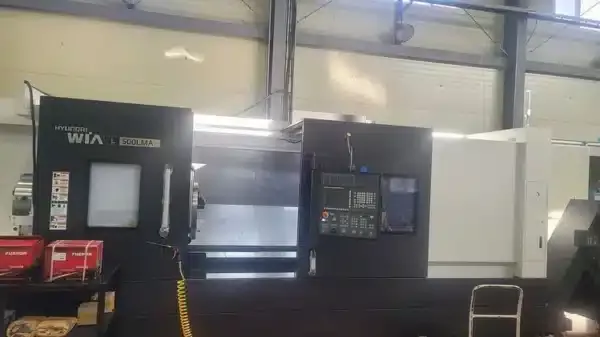

Hyundai Fanuc 32iB Control Variable Speed WIA L500LMA 3 Axis

HYUNDAI WIA L500LMA
2024

SWING OVER BED 40.6″
MACHINING LENGTH 82.7″
CHUCK SIZE 1 24″
SPINDLE NOSE 1 A1-15
SPINDLE BAR CAPACITY 1 10.8″
TURNING DIAMETER, SHAFT DIAMETER 27.2″
SPINDLE SPEEDS 1 10.8 RPM
SPINDLE HORSEPOWER 1 60 hp
SPINDLE BORE DIAMETER 1 10.8″
X – AXIS TRAVEL 15.7″
Z – AXIS TRAVEL 87.7″
C – AXIS TRAVEL 1 0°
RAPID TRAVERSE RATE – X1 788 in/min.
RAPID TRAVERSE RATE – Z1 709 in/min.
TURRET CONFIGURATION 1 12
TURRET ROTARY TOOL SPINDLE SPEED 1 4,000 RPM
TURRET ROTARY TOOL HORSE POWER 1 15 hp
TAILSTOCK QUILL DIAMETER 5.2″
TAILSTOCK TAPER MT 5
TAILSTOCK QUILL TRAVEL 5.2″
PROGRAMMABLE TAILSTOCK YES
TAILSTOCK TRAVEL 82″
# AXIS 3
BAR CAPACITY 10.8″
TAILSTOCK ‘Yes’
LIVE TOOLING ‘Yes’
SUB SPINDLE ‘No’
CONTROL CNC (FANUC 32IB CNC COLOR CONTROL)
WEIGHT 33,510
EQUIPPED WITH:
FANUC I SERIES CONTROL
THREAD SYNCHRONIZED CUTTING
THREAD CUTTING RETRACT
VARIABLE LEAD THREADING
Tool Pre Setter
(2) 24″ 3-jaw Manual Chuck, Front and Rear Spindle (W/10.8 Bore Each)
(1) O.D. Rotary Head
(1) I.D. Rotary Head
Chip Conveyor
Fanuc 32iB Control
200 Hours On time
CHIP CONVEYOR
TOOL SETTER
HEAVY DUTY BOX WAY CONSTRUCTION
PROGRAMMABLE TAILSTOCK
