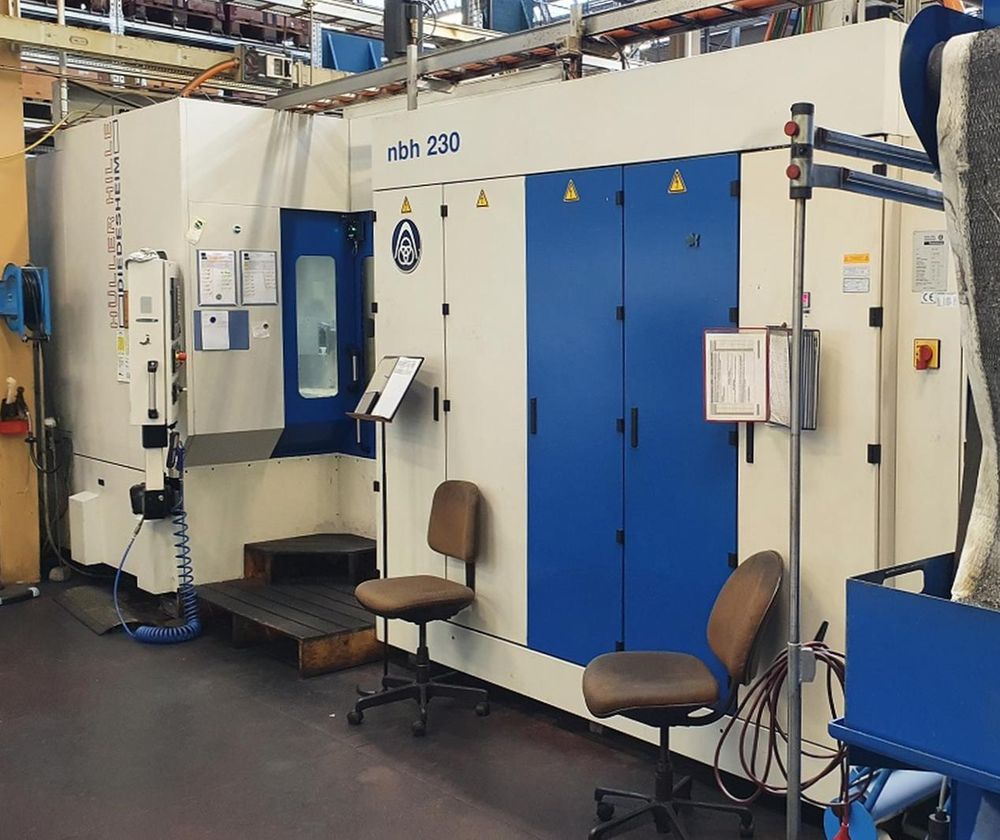

Huller HILLE NBH 230 4 Axis

HÜLLER HILLE NBH 230
Controller :SIEMENS SINUMERIK 840 D
Maximum swing circle of up to
1200 mm
Longitudinal travel (X-axis)
1200 mm
Transversal travel (y-axis)
1000 mm
Vertical travel (z axis)
1200 mm
Table speed
15 rpm
Holding torque of the table
10000 Nm
Tilting moment
29000 Nm
Pallets:
Length
800 mm
Width
630 mm
Time of changing palets
15.5 sec
Transport weight
1200 kg
Tool changer:
Number of tools
250
Tool diameter max.
125 mm
Diameter with free adjacent pockets
250 mm
Tool lenght
650 mm
Max. tool-weight
40 kg
Time of tool changing
2.5 - 4.5 sec
Average chip-to-chip time
7 - 9 sec
Spindle nose SK
50 DIN69871
Distance spindle nose to table
130 mm
Spindle speeds:
stepless
from
25 rpm
up to
6000 rpm
Torque max.
900 / 1130 Nm
Feed range
1 - 36000 mm/min
Rapid traverse:
36 m/min
Machine's weight about
30000 kg
Overall dimensions machine:
Length
10000 mm
Width
6000 mm
Height
3800 mm
Various accessories:
Direct measurement by glass scales
LPP (Pallet changing system)
Coolant system
1250 l
Booster pump (coolant)
11 bar
Internal coolant supply (cts)
25 / 50 bar
Paper filter facility
Set of toolholders
Oil mist extractor
Measuring feeler gauge
