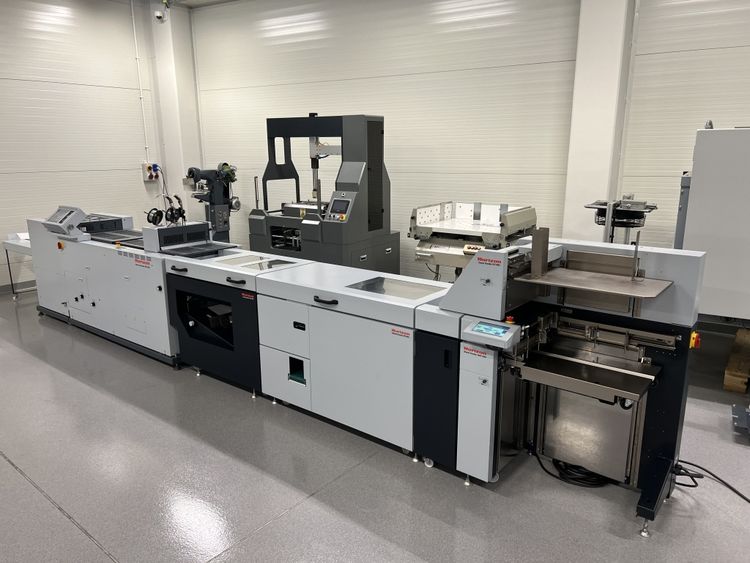

Horizon Digital Printing Booklet Line

Digital Printing Booklet Line
The machine consists of the following modules:
HOF-400 + CF-400 + CR-400 + AC-400+ SPF-200L + FC-200L
The machine is in perfect condition, ready for production.
Mileage of only 0.5 million booklets.
This is one of the latest models of Horizon machines.
Setting the entire machine from the desktop.
The ideal machine for efficient production of booklets in a digital printing house.

The line consists of:
– Horizon HOF-400 sheet feeder
– Horizon CF-400 cover feeder
– Horizon CR-400 creasing machine with top/bottom trimmer
– Horizon AC-400 accumulation module
– Horizon SPF-200L sewing and folding unit
– Horizon FC-200L front trimmer
– LC-200L delivery

Horizon HOF-400
– Speed: Up to 45,000 sheets per hour
– Maximum stack height: Sheet feeder: 620 mm; Cover feeder: 200 mm
– Minimum sheet dimensions: 203 x 203 mm

Horizon SPF-200L
Touchscreen, colour display with a diagonal of 10.4”
Non-stop work thanks to the function of ejecting incorrectly collected sets
Max format: max. 356 x 610 mm;
Min format. 120 x 180 mm
Max speed 4500 booklets/h
Weight 500 kg
wire sewing
folding
two Hohner 43/6 s heads (max.4)
Ability to save up to 200 jobs to the machine’s memory.
The machine has a block sewing module.

Horizon FC-200L
Cutting thickness 4-5 mm
power supply 230 V
Weight 244 kg
Touchscreen panel for quick change of formats.
With one click we retool the machine to other format.
The machine comes with: LC-200 delivery, tools, spare parts, documentation.
