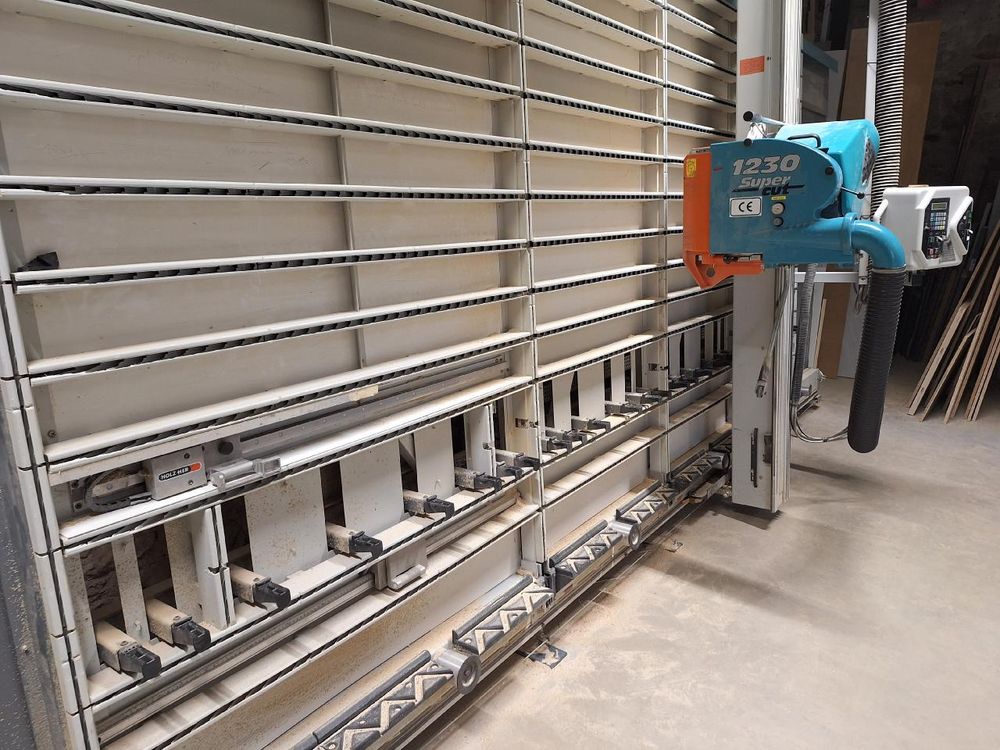

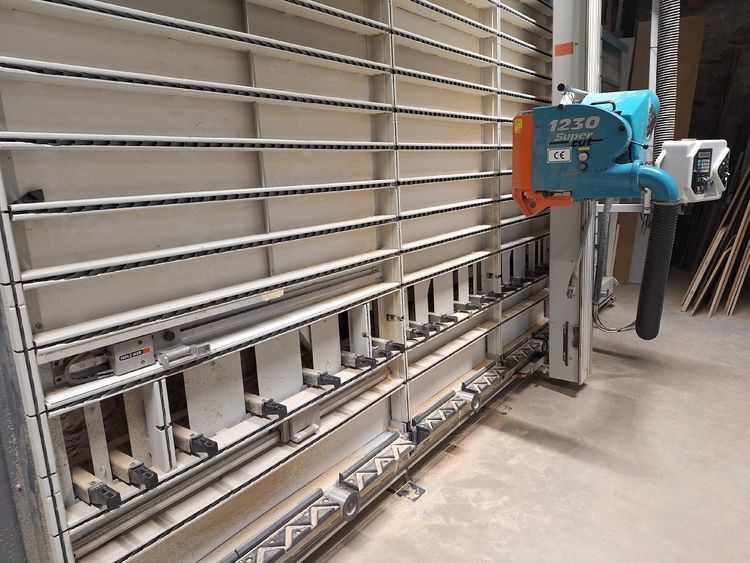

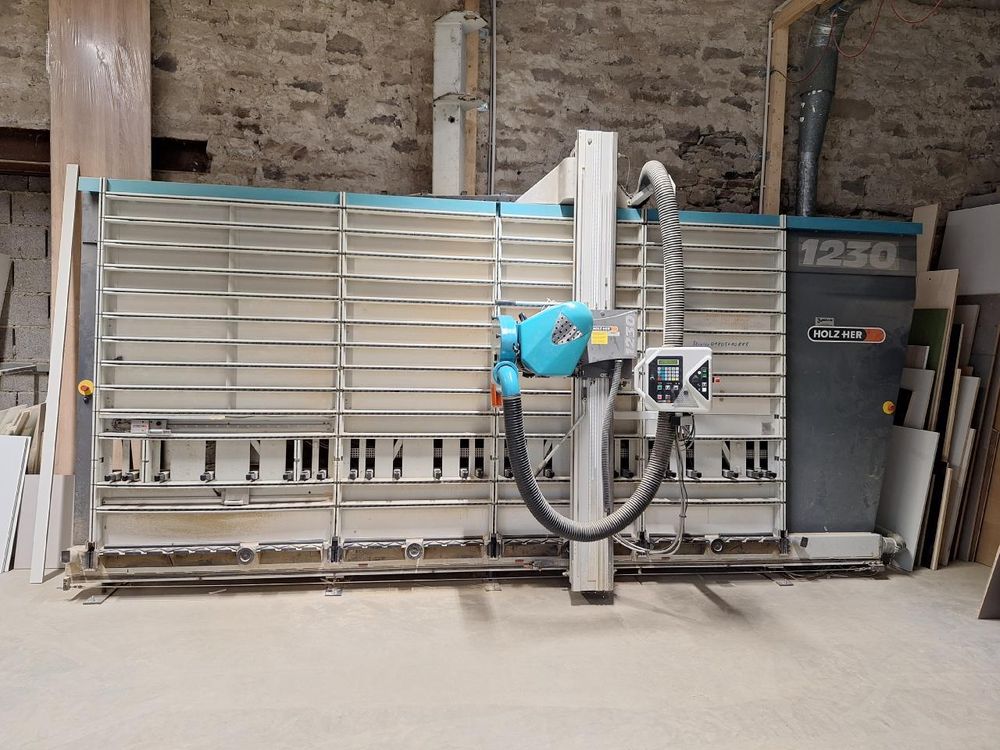

Holz-Her 1230 Super Cut

Ref : 2676424-15-MT
Condition : Used
Manufacturer : Holz-Her
Model : 1230 Super Cut
Year(s) : 2001
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Equipment and technical data:
Automatic positioning horizontally and vertically
Digital display for horizontal cutting

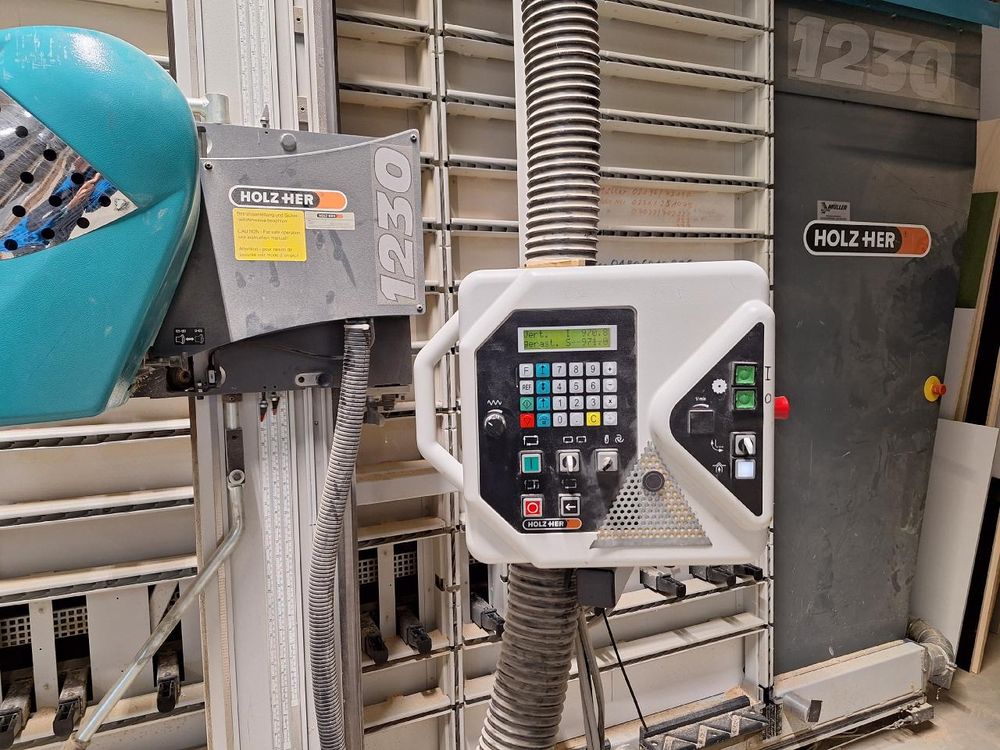

PLC control with 2-line display and text display
for processing mode and error diagnosis infinitely variable feed rate up to 24 m/min automatic workpiece end detection
Calculator function in the control panel (calculation of workpiece dimensions)

Cutting length: 5300 mm
Cutting height: 2200 mm
max. trimming height 2100 mm
max. scoring height, vertical 2100 mm
max. cutting depth 80 mm

Motor 5.5 kW
Saw blade speed 4500 rpm
Saw blade diameter 300 mm

Air requirement 1200 m³/h
Air speed 20 m/s
static negative pressure 1200 Pa
Extraction connection: 2 x 120 mm

Dimensions L x W x H 6620 (plus suction nozzle) x 1480 x 2948 mm
Room height 2990 mm
Compressed air connection: 6 bar
Air consumption 50 NL/min
Electrical connection value: 5.7 kW
With Supercut scoring device
With saw unit that can be swiveled pneumatically
With longitudinal stop for lower workpiece support
