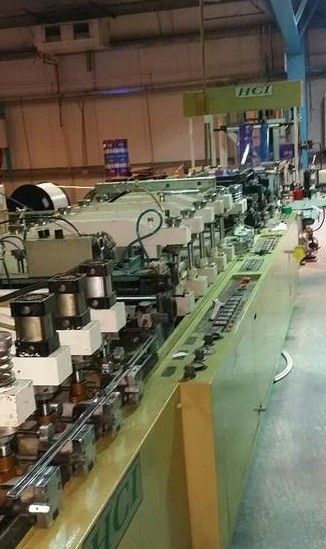

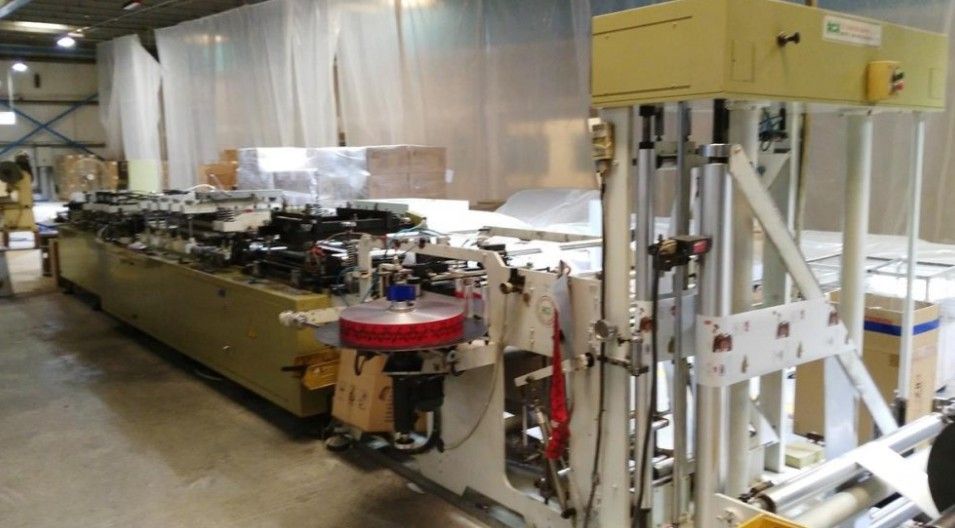

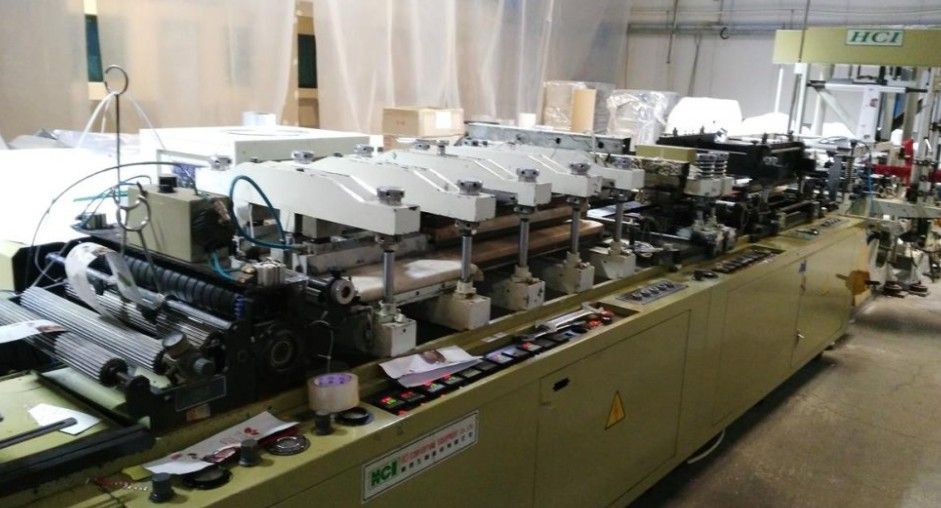

HCI FTSC 450mm

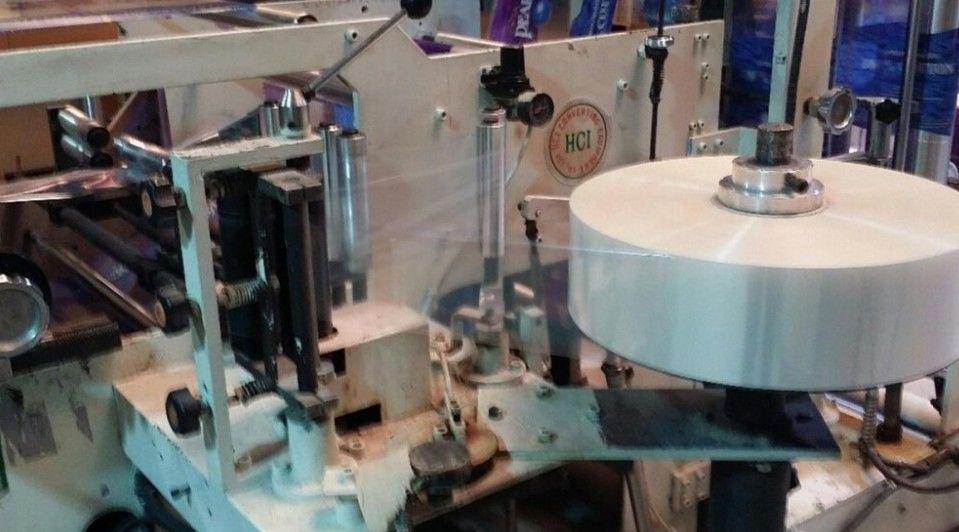

Unwinder dia 600 mm, 1000 mm
Cycle / min mechancial 130 bags/min

Additional information type of bags :
Three side seal pouch max width 450mm-max height 700mm
Three side seal pouch with zipper max width 300mm -max height 480mm
Stand up pouch with k-seal 400-480mm -150 open gusset
Stand up pouch with k seal and zipper 300-480mm--150 open gusset
Stand up pouch with arc seal 300-480mm --150 open gusset
Stand up pouch with zipper and arc seal 300-480mm--150 open gusset
Side gusset pouch 480-700mm--150 open gusset

Additional information :
Type of sealing/bags – standup (open gusset), 3ss pouch, zipper pouches
Sealings:, k seal, arc seal, 3side seal, zipper, open inserted gusset.
Punch: euro punch, notch punch, hole punch, handle punch, gusset punch – possible to 3 punches on a same pouch – depends, pouch size, and requirements

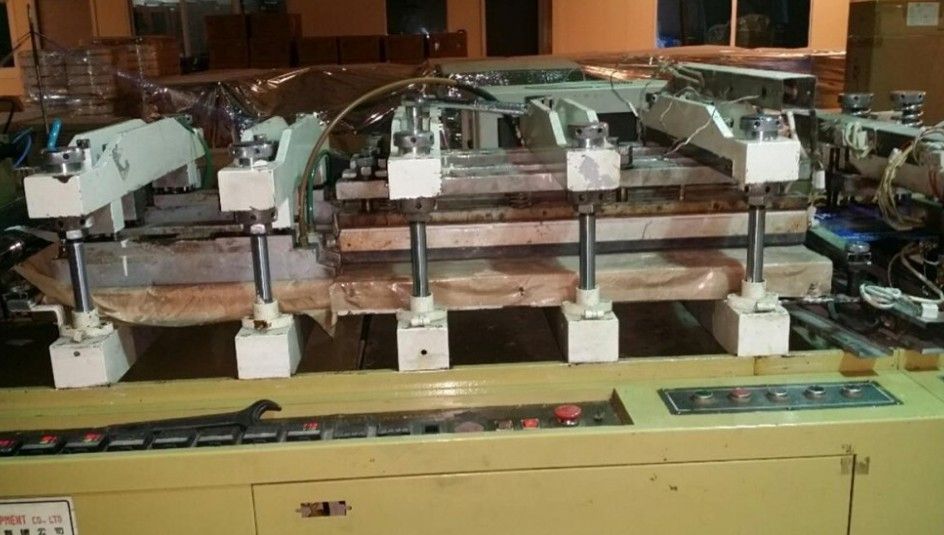

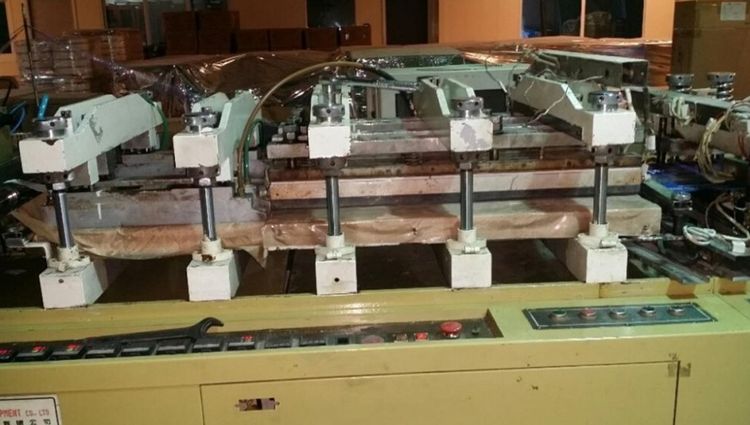

Sealers: bag zipper sealer with cooling seal bar – 1 no
Bag gusset heat sealer – 1 set.
Bag side heat & cool sealer : staright - 4 nos
Bag bottom top & bottom sealer – 1 no
Bag bottom top sealer – 1 nos ;bottom (bottom selaer) – 1 no ups of stand up pouch – pouch height : 220 mm 4 ups of simple 3 side seal pouch = 100 mm pouch width / height.
Pouch machines produce vacuum bags from reels of a film or laminate.
These machines may have different constructions depending on the type of pouch they produce.
