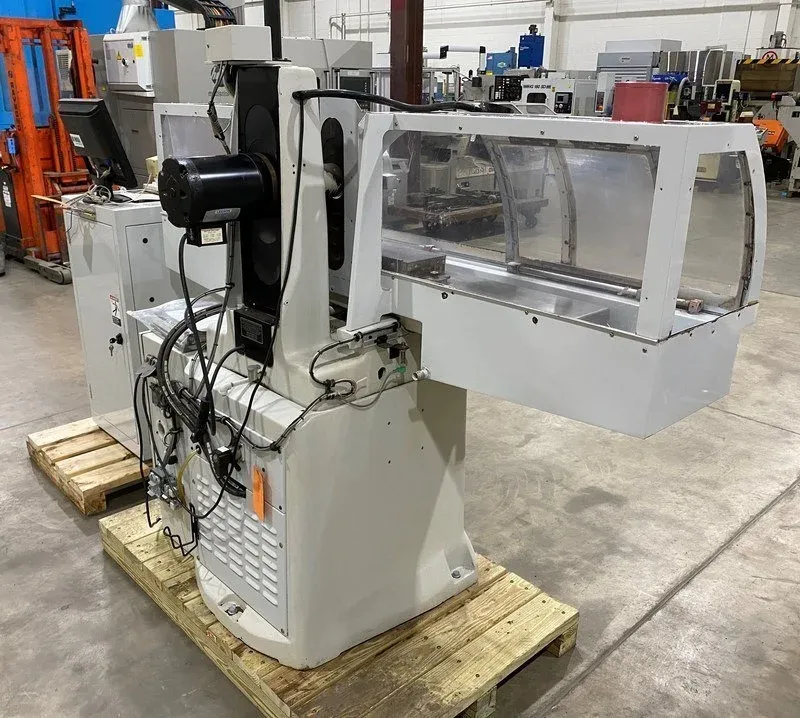

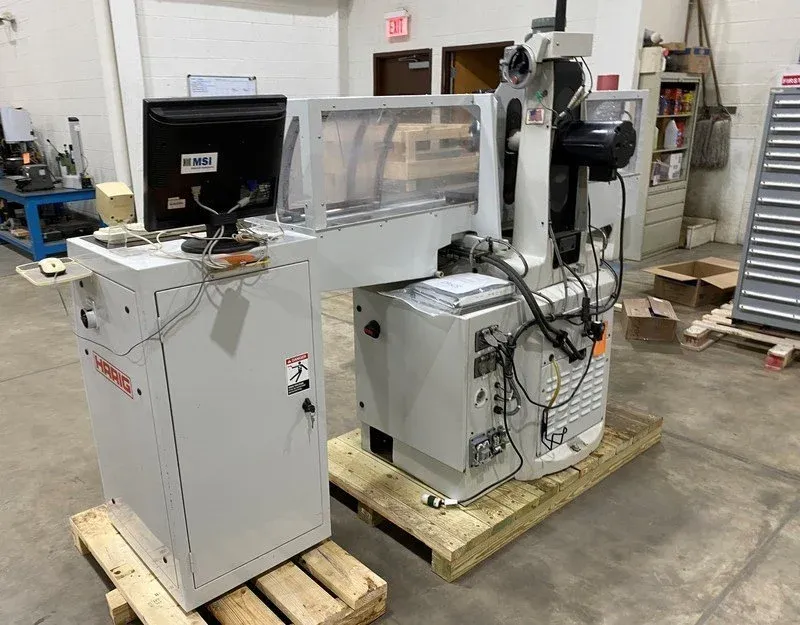

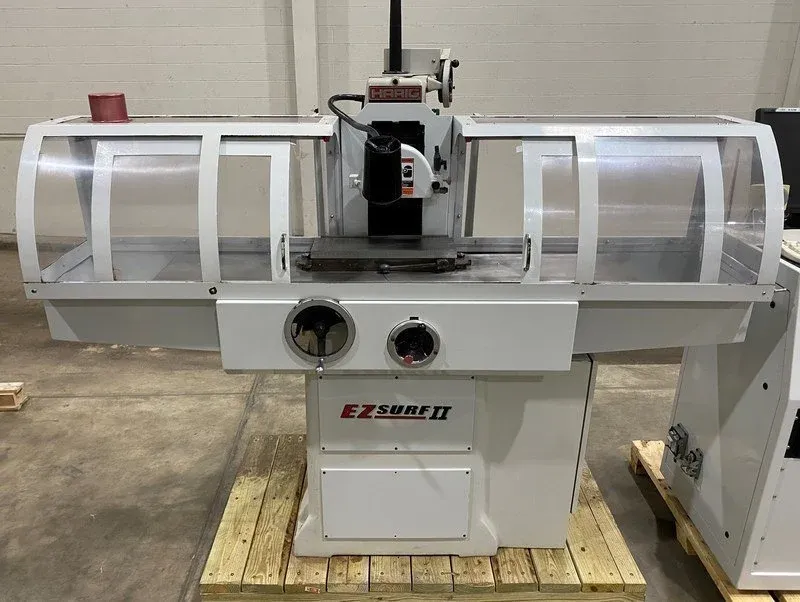

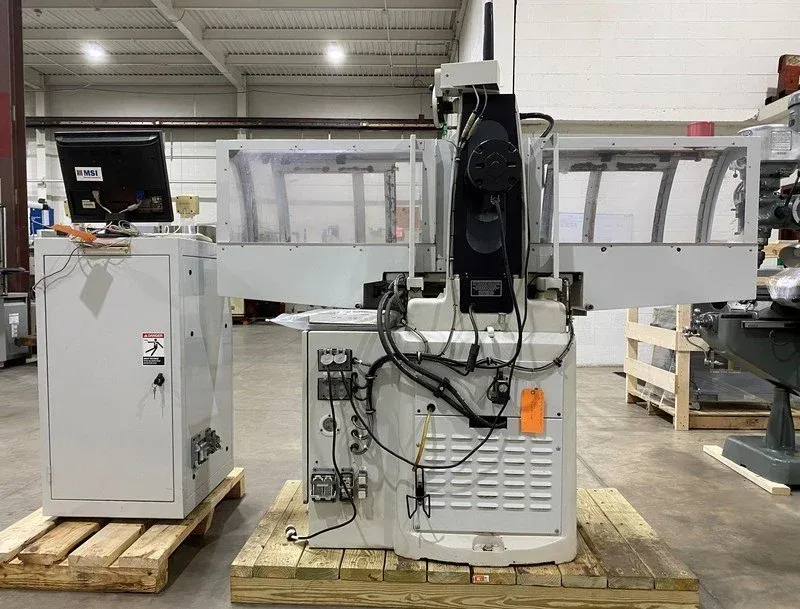

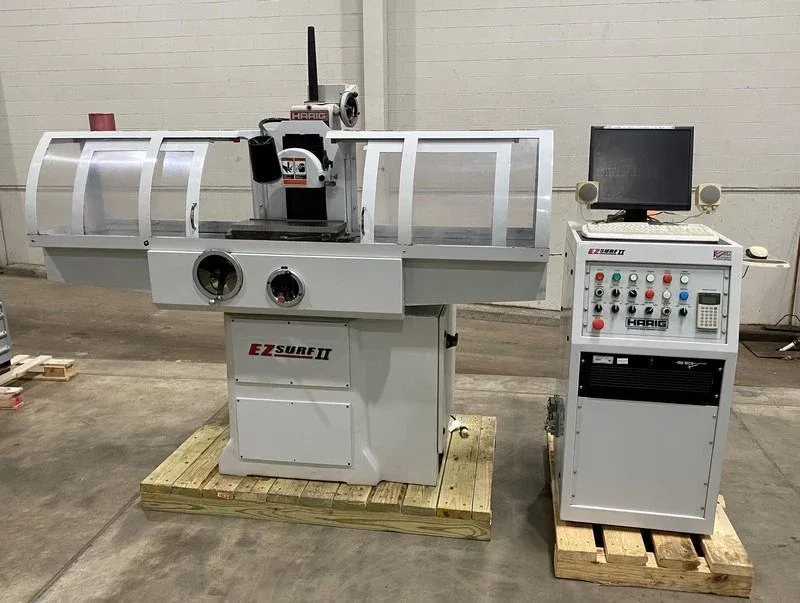

Harig EZ-SURF II

6″ x 18″ Harig EZ-SURF II
New – 2008

SPECIFICATIONS:
Table Working Surface – Maximum…………6″ x 18″
Travels:
– Longitudinal – X-Axis………….20″
– Cross – Z-Axis…………6-3/4″
Grinding Spindle:
– Speed – Variable…………2000 – 5000 RPM
– Center to table – maximum height…………12″
Grinding Wheel:
– Diameter…………8″
– Width…………1-1/4″
– Hole Diameter…………1-1/4″
– Motor…………1.5 HP
Feed Rates:
– Longitudinal – variable…………1/4″ – 70 FPM
– Wheelhead increments – minimum…………0.00001
Electrics…………220V/3Ph/60Hz
Machine Dimensions – approximate…………72″ L-R x 48″ F-B x 84″ H
Machine Weight – approximate…………2,250 Lbs.

EQUIPPED WITH:

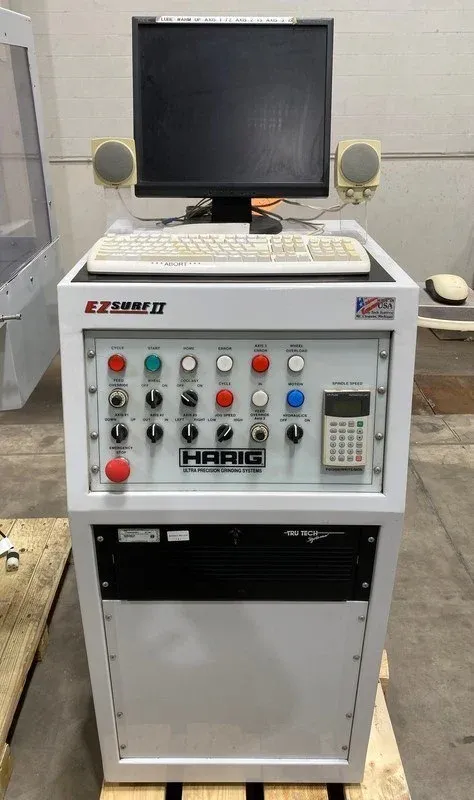

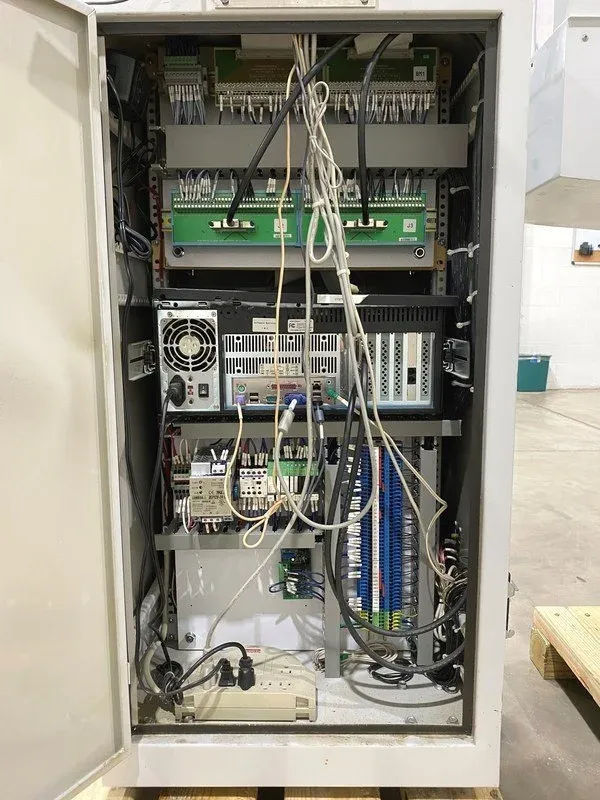

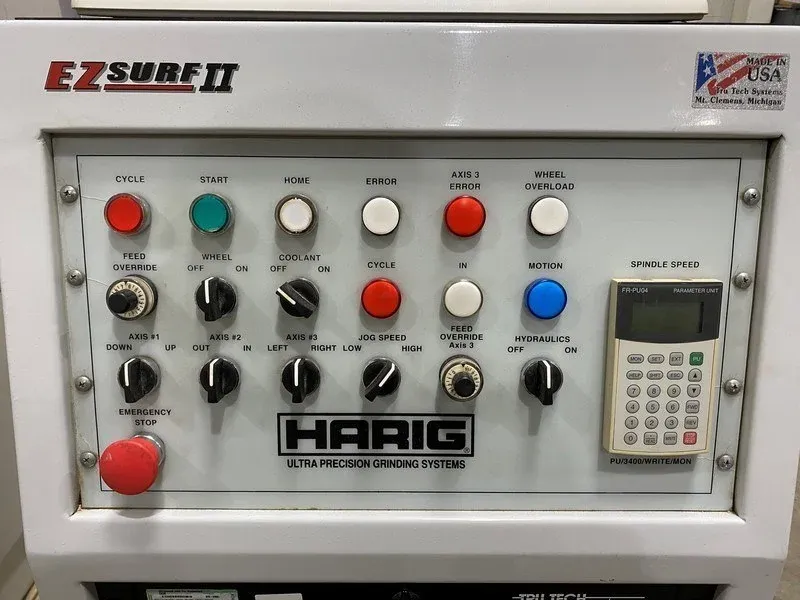

EZ-Surf PC Based 3-Axis CNC Programmable Control
3-Axis Automatic Operation
MDI-Setup-Teach-Program & Edit
3-Axis Linear & Circular Interpolation
Absolute & Incremental Operation
Dwell in MDI or End of Stroke
RS-232 Port
Electronic Handwheels on Y & Z Axes
Ballscrews on Y & Z Axes

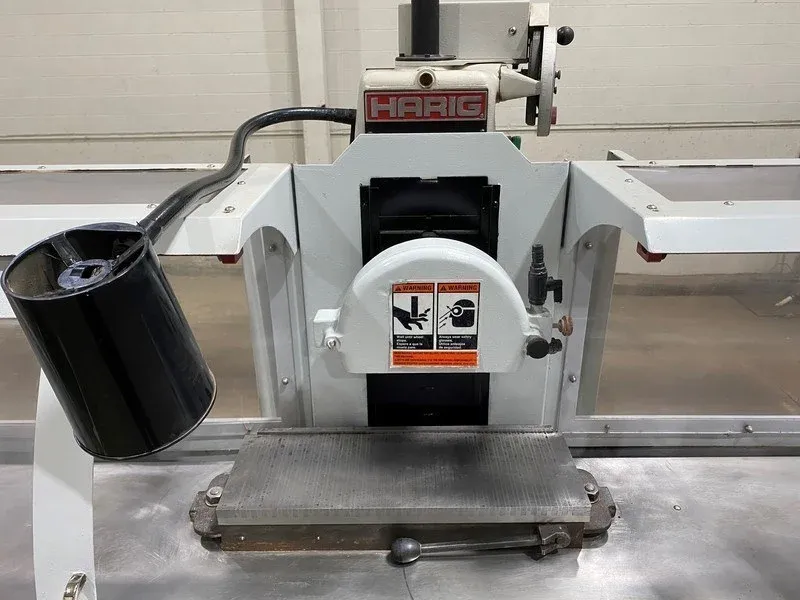

Walker Ceramax permanent magnetic chuck
Full Enclosure
Work Light
