Haas VF-11/50 5-Axis 5

Reference #43682

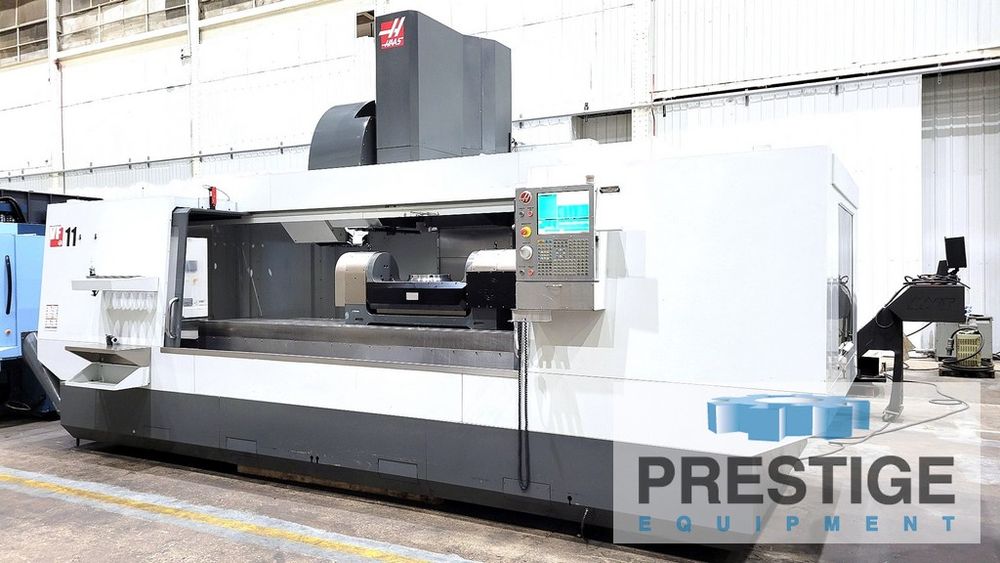

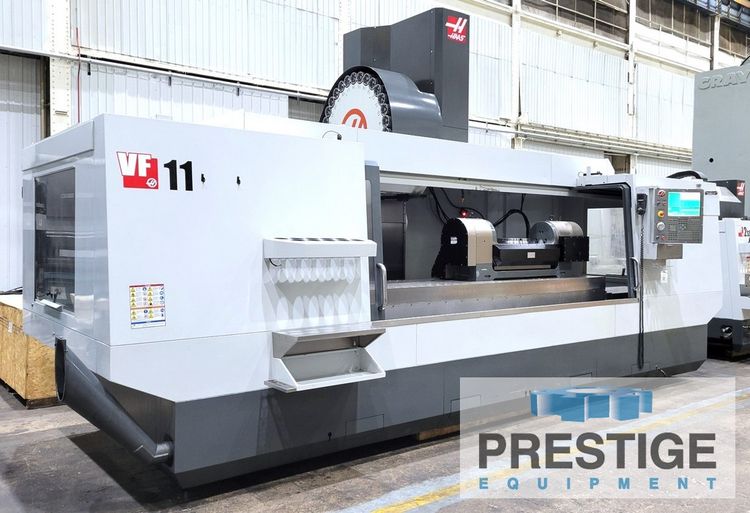

Haas VF-11/50 5-Axis CNC Vertical Machining Center

FEATURES:

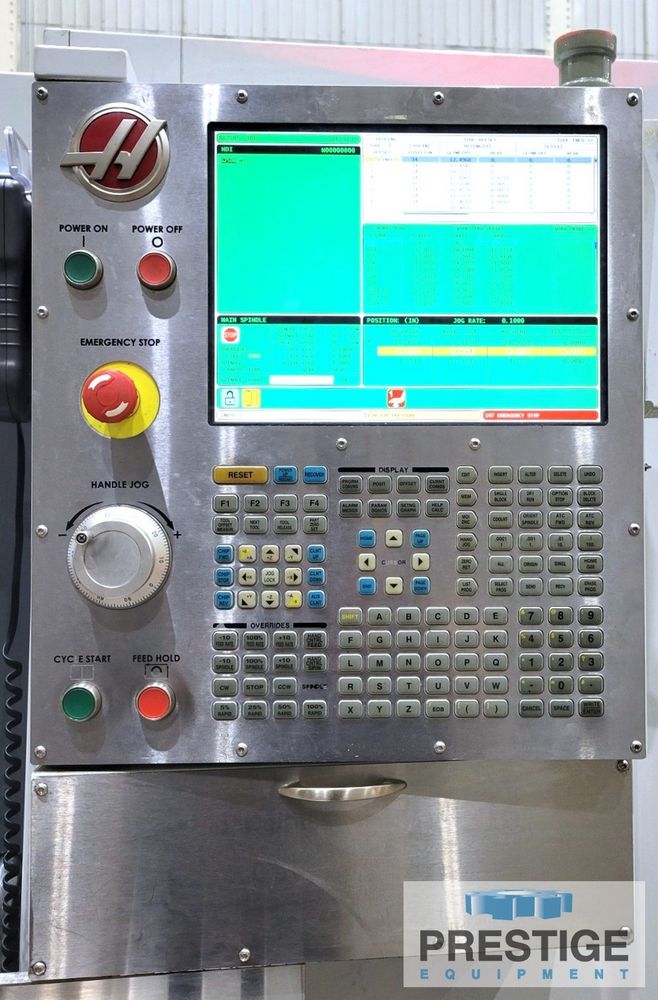

Haas 5-Axis CNC Control

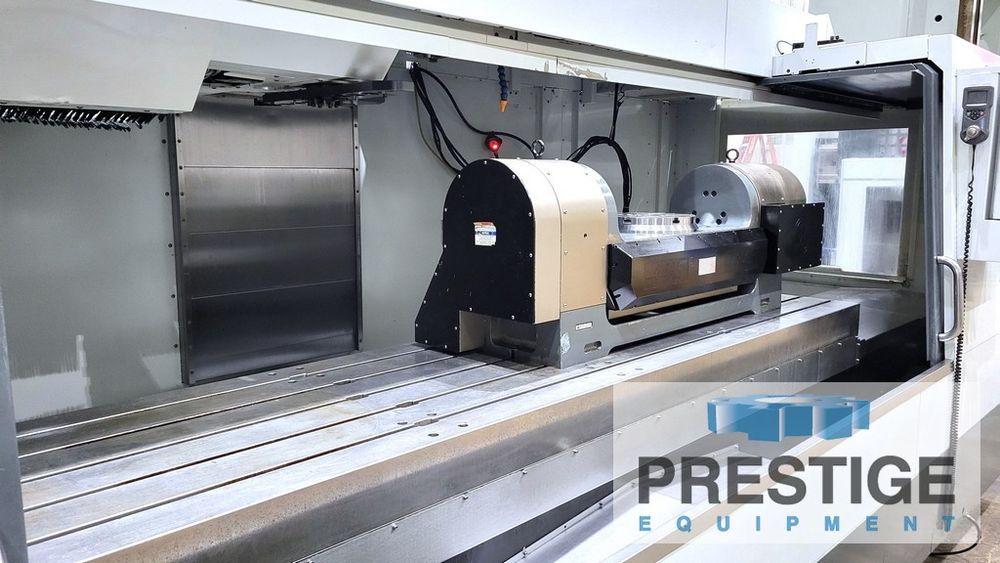

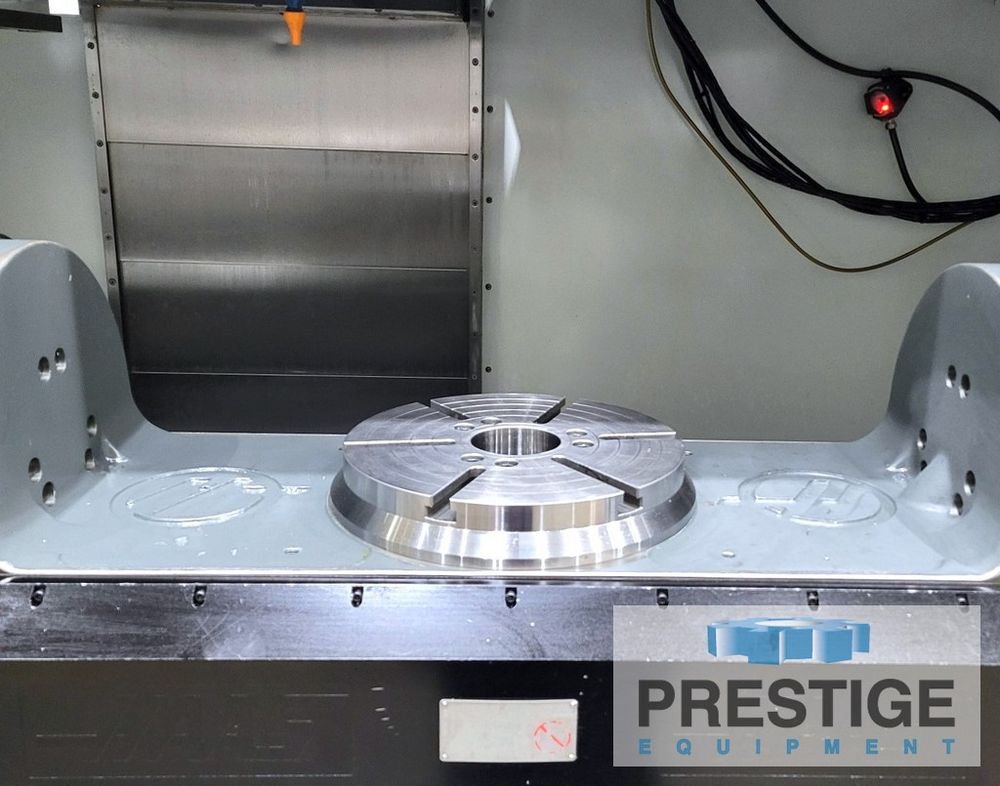

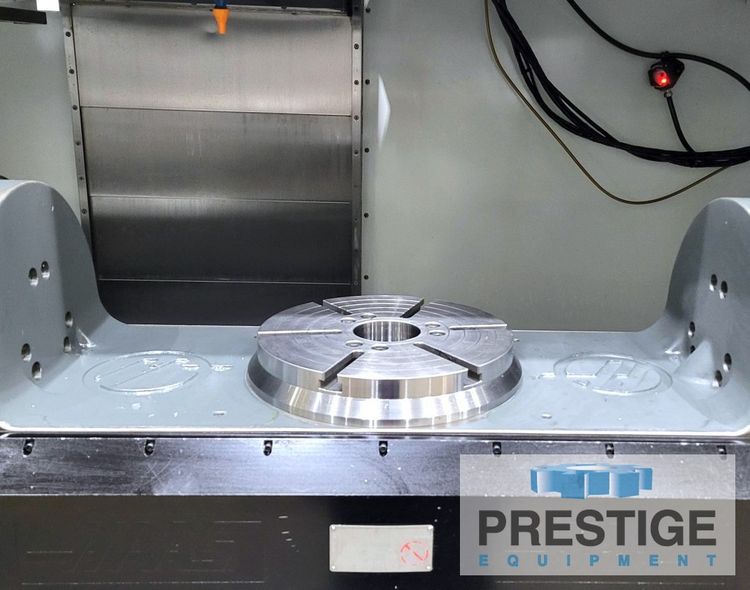

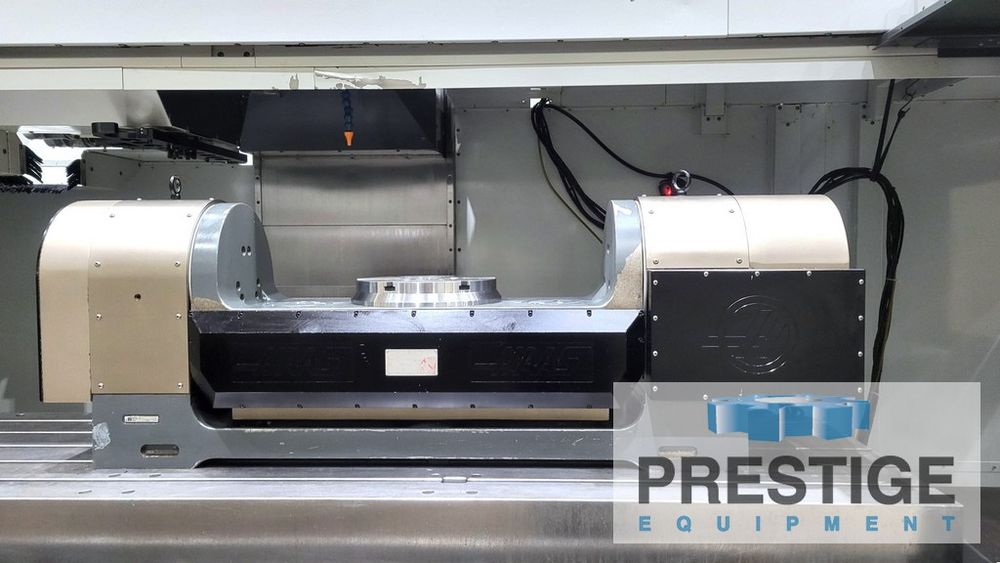

Haas TR310 CNC Trunnion Rotary Table
30-Station Side-Mounted ATC
CAT 50 Taper
Probe System
Thru Spindle Coolant

CAPACITY:
X-Axis Travel ......................... 120"
Y-Axis Travel ......................... 40"
Z-Axis Travel ......................... 30"
Table Size ............................ 28"x 120"
Spindle Nose To Table Top ............. 5"-35"
Maximum Table Load .................... 4,000 Lbs.
Spindle Speeds ........................ 7,500 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 30 HP
Rapid Traverse, X-Axis ................ 360 IPM
Rapid Traverse, Y/Z Axes .............. 600 IPM
Max. Tool Weight ...................... 30 Lbs.
Max. Tool Dia, None Adjacent .......... 10"
Max. Tool Dia., Pockets Full .......... 4"
Max. Tool Length ...................... 16"
Approx. Machine Floor Space ........... 257" x 139"
Approx. Machine Height ................ 138"
Approx. Machine Weight ................ 35,700 Lbs

EQUIPPED WITH:
Haas 5-Axis CNC Control
Haas TR310 CNC Trunnion Rotary Table
30-Station Side-Mounted Automatic Tool Changer

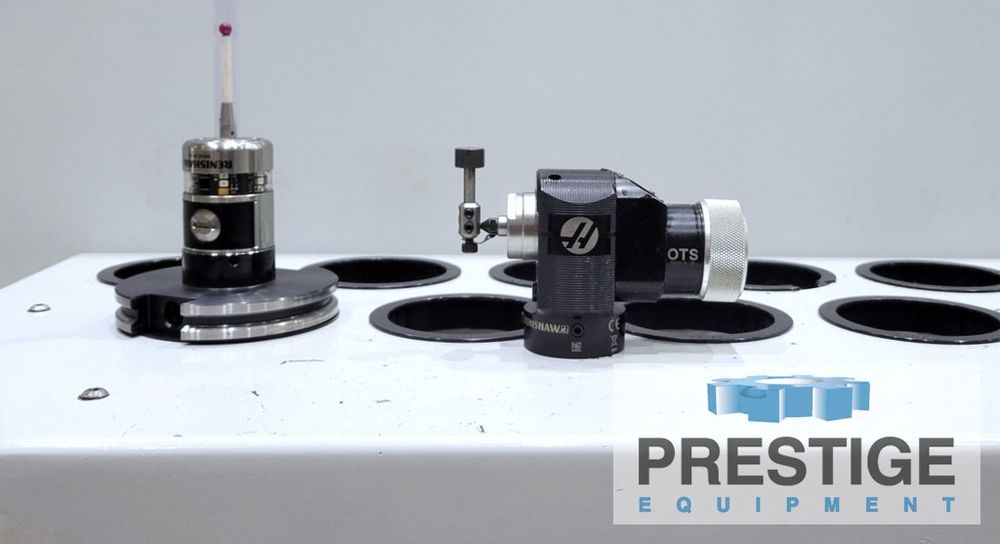

Renishaw Wireless Intuitive Probe System
300 PSI Thru Spindle Coolant
Programmable Coolant Nozzle
Remote Jog Handle
Chip Auger

NOTE:
Inspect Under Power In Pennsylvania CNC Machining Facility
