Groninger DFVN2005VI - KVK208B

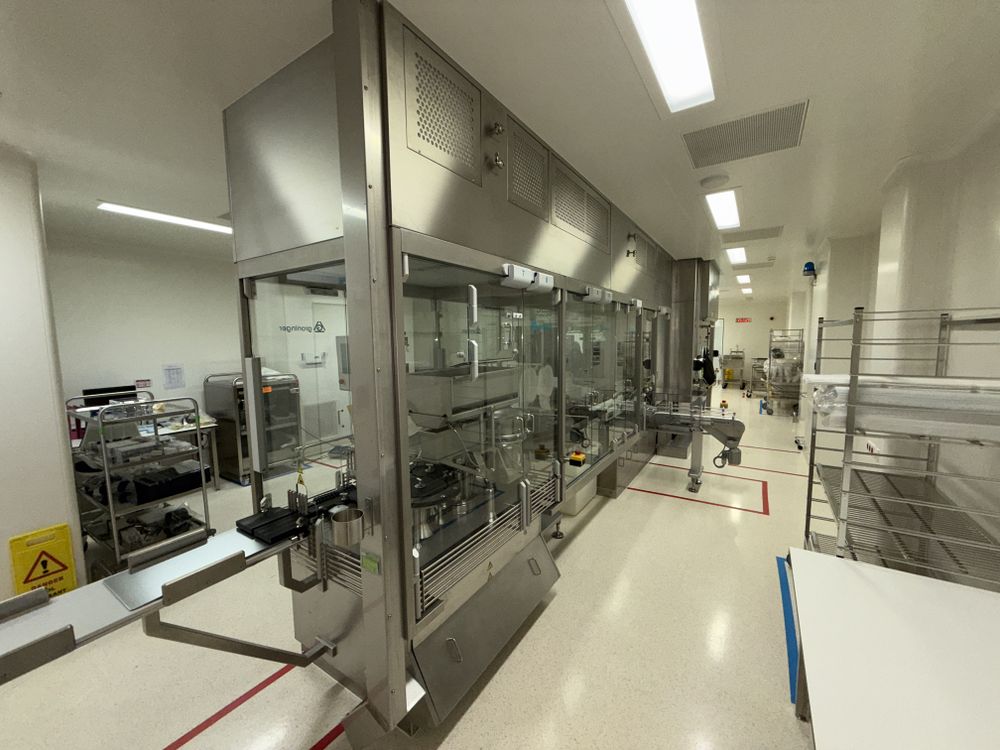

Filling and capping line Groninger for injectables composed of:
1) Groninger DFVN 2005VI filling machine
> Provides versatility in format and batch size
> Semi-automatic debagging machine MWU010
> Fully automatic (de)lidding MWF100
> Fully automatic nest filling & stoppering machine
> DFVN 2005VI – 5-headed aseptic filling line (max.200 pieces/min) combined with nested technology
> 100% IPC

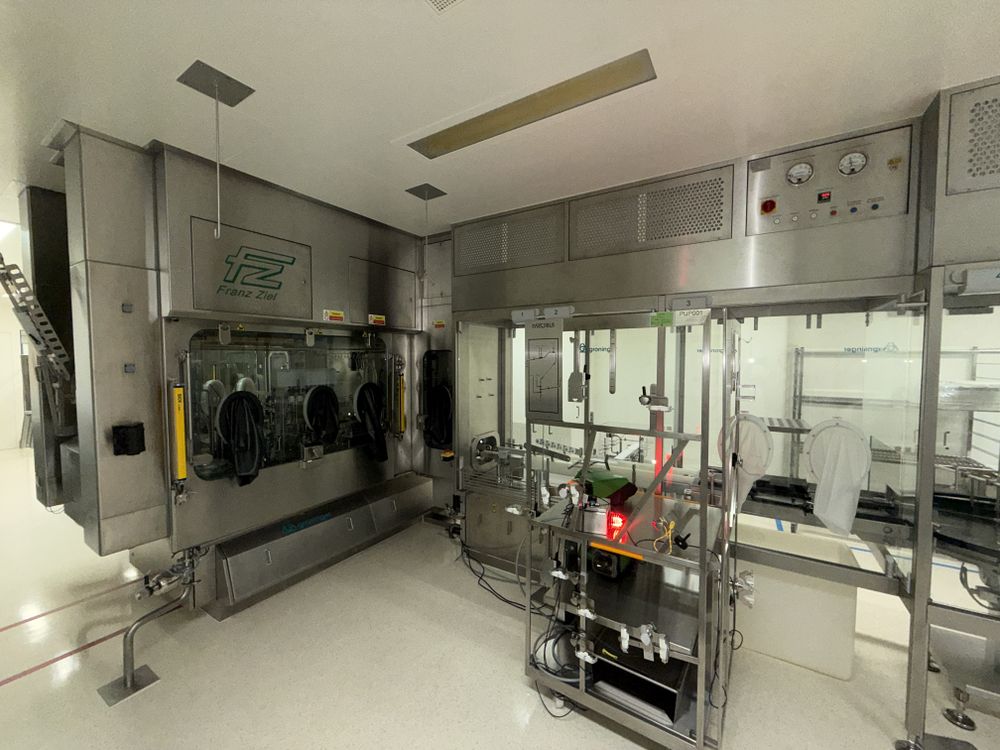

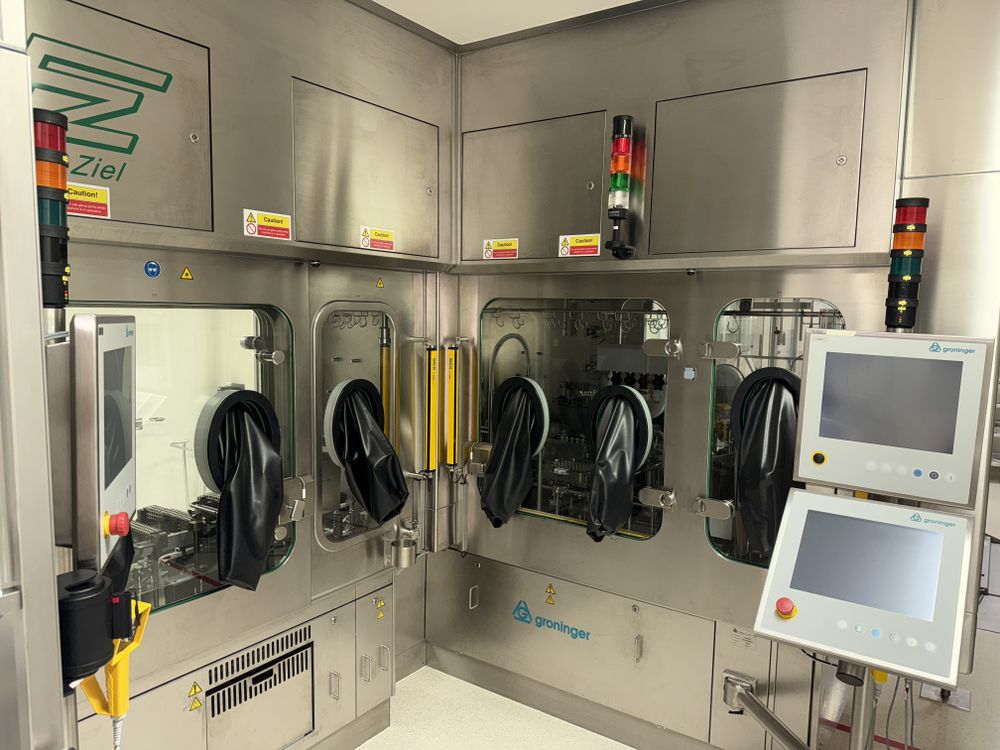

> Operating under Franz Ziel isolator
> Gassing before stoppering

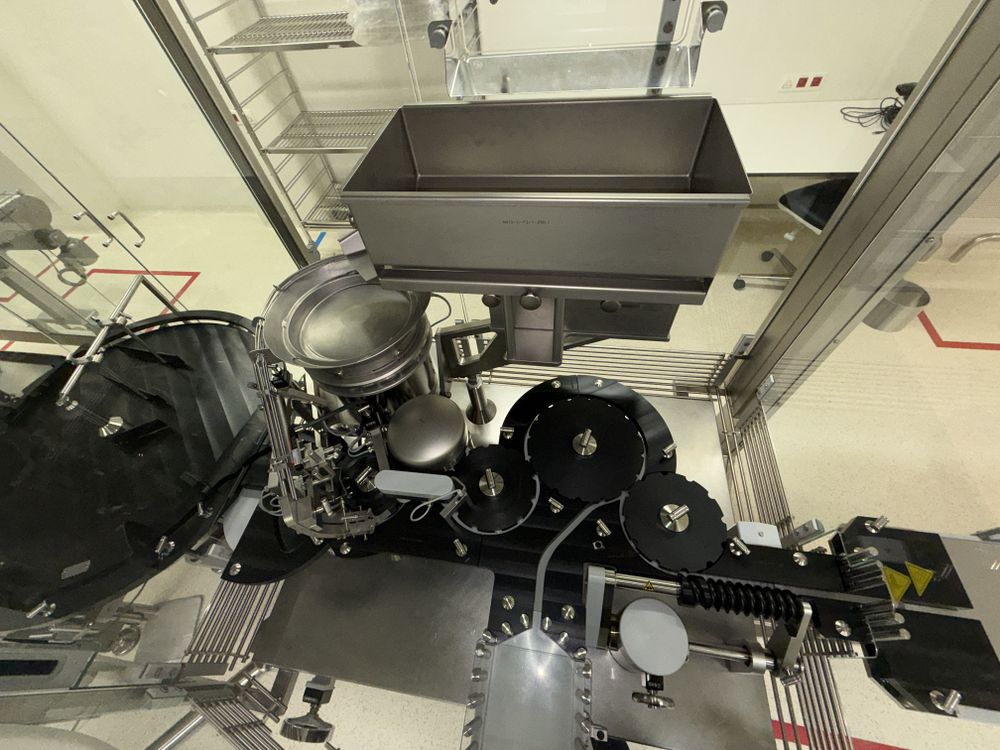

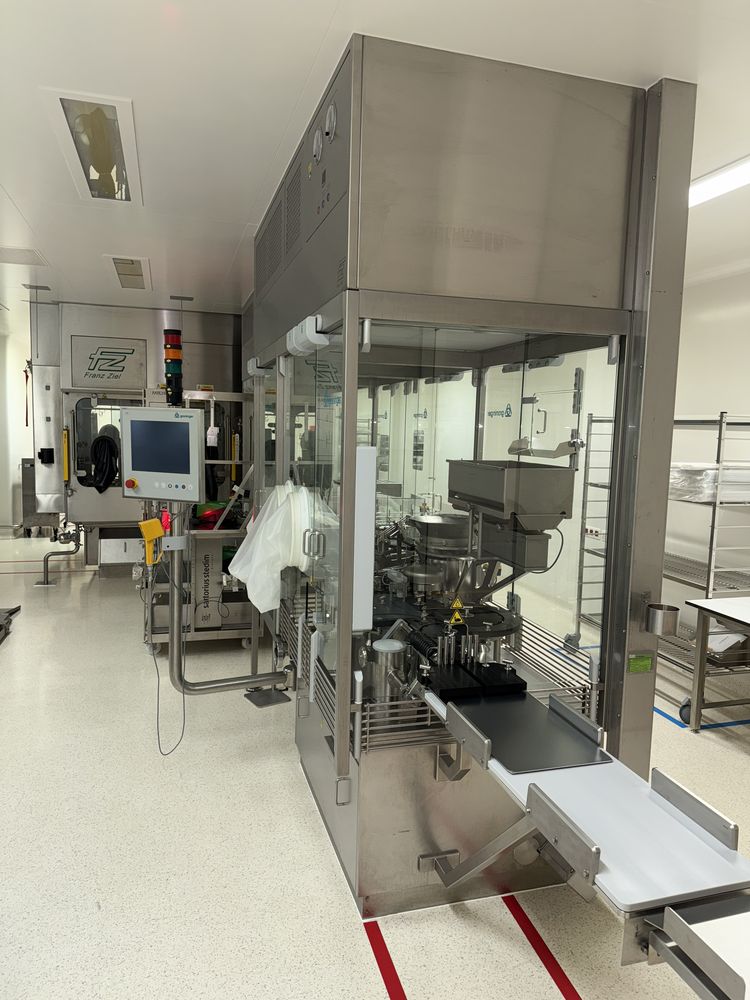

2) Groninger KVK208B capping machine
> Max 300 pieces per minute
> Fully automatic closing system

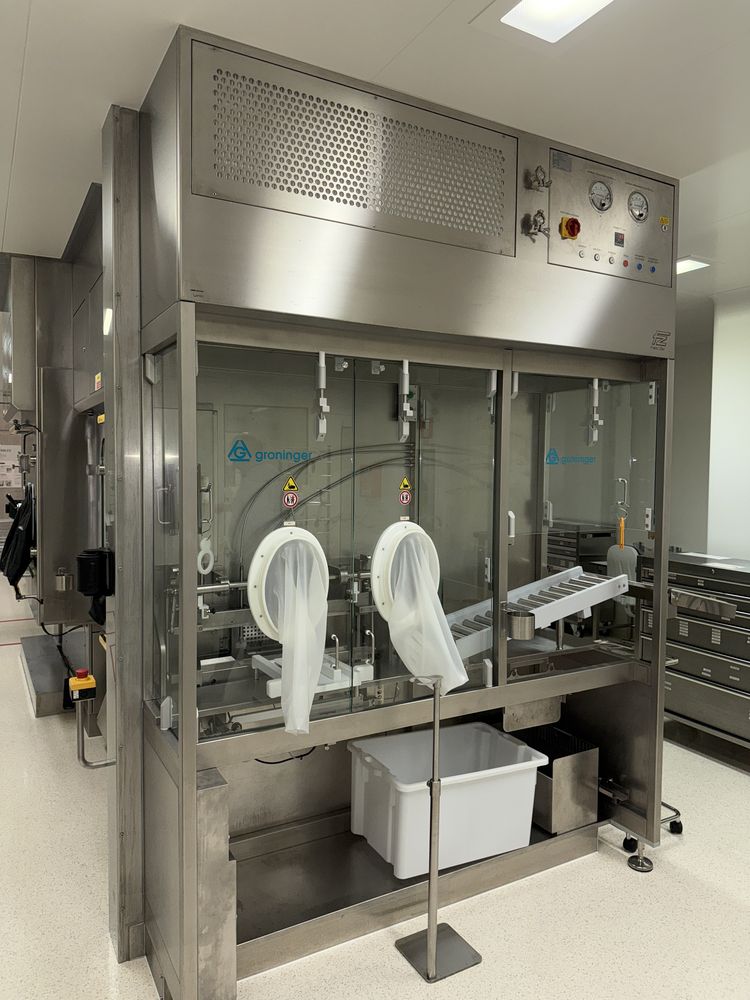

> Operating under RABS
> Single lane discharge tray loading system for vials
> All equipment uses Groninger Process Data System
> Versatile formats through ready-to-use components via single operational line
> Formulation in Grade A (under isolator) or C classification
Speed up to 12000 pc/h
> Supports products of various levels of viscosity (up to 1,500 CPS) with regular and vacuum technology and rotative or peristaltic pumps
> Possibility to process under nitrogen atmosphere
> Received GMP certification
Equipment work ranges
Diameter 6.9 – 31.5 mm
Height 35.0 – 155.0 mm
Volume 0.2 – 50.0 ml
Available formats at Metis
Vials 2R and 6R (0.5 – 10.0ml)
1.0 – 3.0 ml (standard syringe)
PFS 2.25 ml (PRTC syringe)
Cartridges 3.0 ml
> Presentation versatility is determined by the equipment’s work ranges
> Majority of clients use standard presentations for vials, prefilled syringes and cartridges
