Giddings & Lewis VTC-3000

Reference #43828
120" G&L CNC Vertical Boring Mill

FEATURES:
Giddings & Lewis 8000-L 4-Axis CNC Control
30-Station Automatic Tool Changer
Vertical Ram
Side Head
Flood Coolant System
Chip Conveyor

SPECIFICATIONS:
Table Diameter ........................ 120"
Maximum Swing ......................... 144"
Maximum Swing with Side Head ......... 134"
Maximum Height Under Cross Rail ....... 84"
Cross Rail Vertical Travel ............ 60"
Table Speeds .......................... 3-130 RPM
Number of Table Speeds ................ 2
Rail Elevating Rate ................... 30 IPM

RIGHT HAND RAM HEAD:
Vertical Travel of Ram, Z-Axis ........ 62"
Travel Below Rail ..................... 54"
Horizontal Travel Right of Center ..... 80"
Horizontal Travel Left of Center ...... 79"
Rapid Traverse Rate ................... 250 IPM
Power Draw Bar Ram..................... ANSI B5.5 #60 Taper

RIGHT HAND SIDE HEAD:
Vertical Travel Above Table ........... 68.5"
Vertical Travel Below Table ........... 6.8"
Horizontal Ram Travel ................. 32"
Rapid Traverse Rate ................... 150 IPM
Tool Changer .......................... ANSI B5.50 #50 Taper

EQUIPPED WITH:
Giddings & Lewis Numeripath 8000-L CNC Control

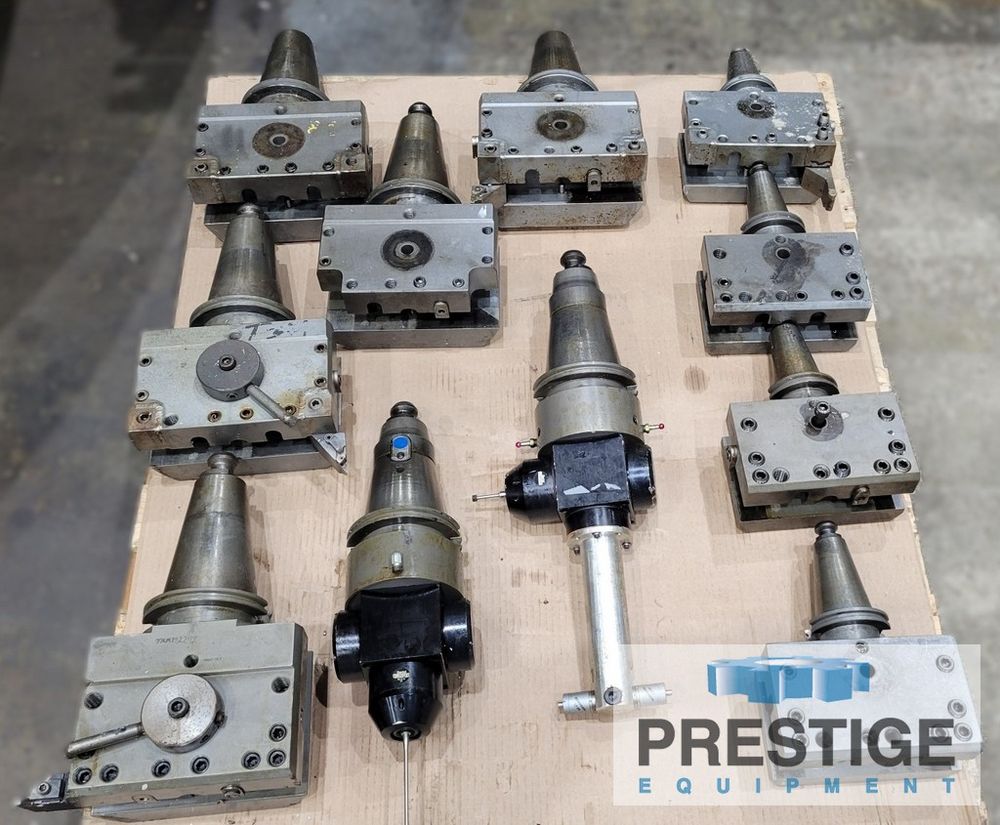

30-Station Automatic Tool Changer
15-Station Automatic Tool Changer, Side Head
Vertical Ram & Right Hand Side Heads
Auxilliary Hand Held Pendant
3" Diameter Ball Screws
AC Servo Drives
Inductosyn Feedback
Tool Tip Probe (Probe Not Included)
Programable Rail Height
Temperature Controlled Coolant System
Programable Chip Conveyor
Way Covers on Cross Rail
Pedestal Pendant Control
Hardened Ways on All Axes
2-Speed Helical Gear Transmission
Flood Coolant System with Coolant Pan
150 HP 460 Volt, 3-Phase, 60 Herz

NOTE:
As Taken from Major Aerospace Facility
