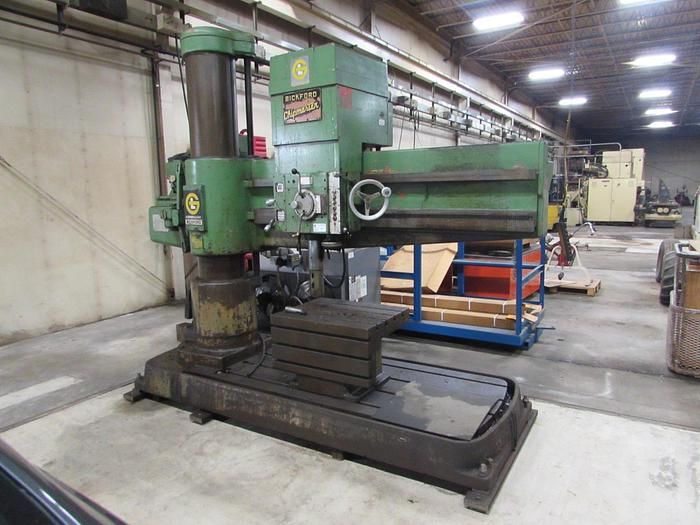

Giddings & Lewis Bickford Chipmaster, Type 962 1600 RPM

6'15" GIDDINGS & LEWIS/BICKFORD "CHIPMASTER"
 RADIAL DRILL
Model Chipmaster, Type 962


EQUIPPED WITH:
Tapping Capabilities
Plain Base - Power Arm Elevation
Power Clamping to Head
One Shot Lubrication
Coolant System (Built-In)


CATALOG SPECIFICATIONS:
Arm Length .......... 6'
Column Diameter .......... 15"
Horizontal Head Travel on Arm .......... 60.38"
Vertical Arm Travel on Column .......... 36"
Vertical Spindle Travel in Head .......... 14"
Spindle-Radius, Minimum .......... 25"
Spindle-Radius, Maximum .......... 83"
Spindle-Nose to Base, Minimum .......... 18"
Spindle-Nose to Base, Maximum .......... 67"
Base Working Surface, W x L .......... 42" x 83"
Spindle Nose Diameter .......... 3.94"
Spindle Taper .......... #5 MT
(12) Spindle Speeds, Range .......... 40 to 1600 RPM
(9) Spindle Feeds, Range .......... .002 to .040 IPR

Motor Horsepower .......... 10 HP/1800 RPM
Electrical System .......... 230-460/3/60
Floor Space Required, W x D .......... 13'3" x 19'2"
Overall Height .......... 9'3"
Weight, Approximately .......... 17600 LBS
