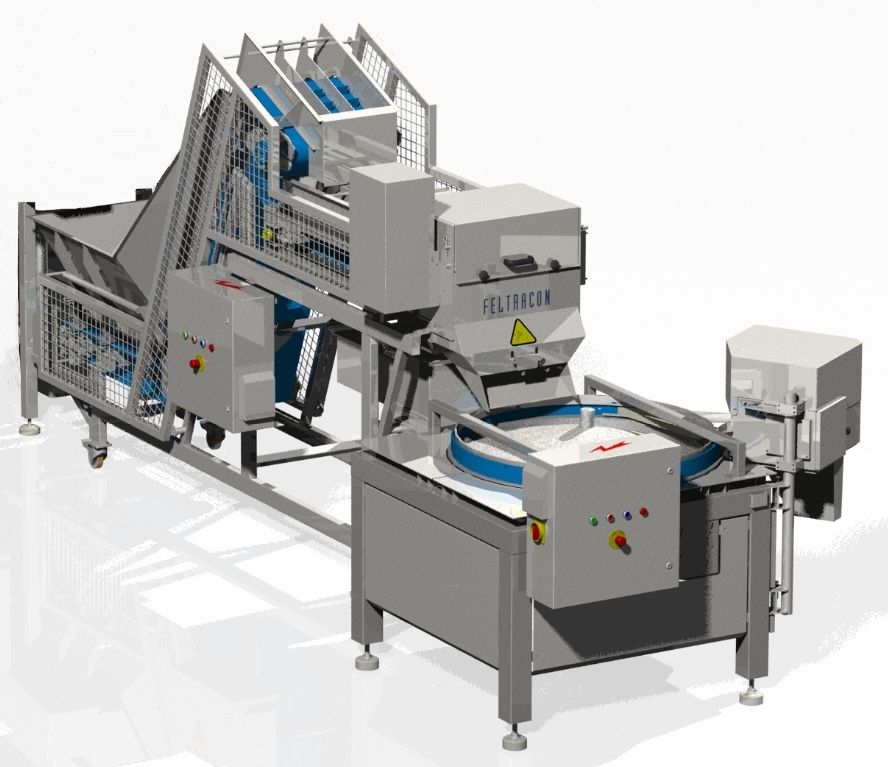

Feltracon FC3281-S03 LEMON PROCESSING AND SLICING LINE

REF-0 FELTRACON LEMON PROCESSING AND SLICING LINE

Line for cutting lemons into slices and half slices
Manufacturer: FELTRACON
Model: FC3281-S03
Year: 2006
Throughput: 750 kg/h (depending on the type of product)
Product temperature: 5-20 °C.

Composed of:

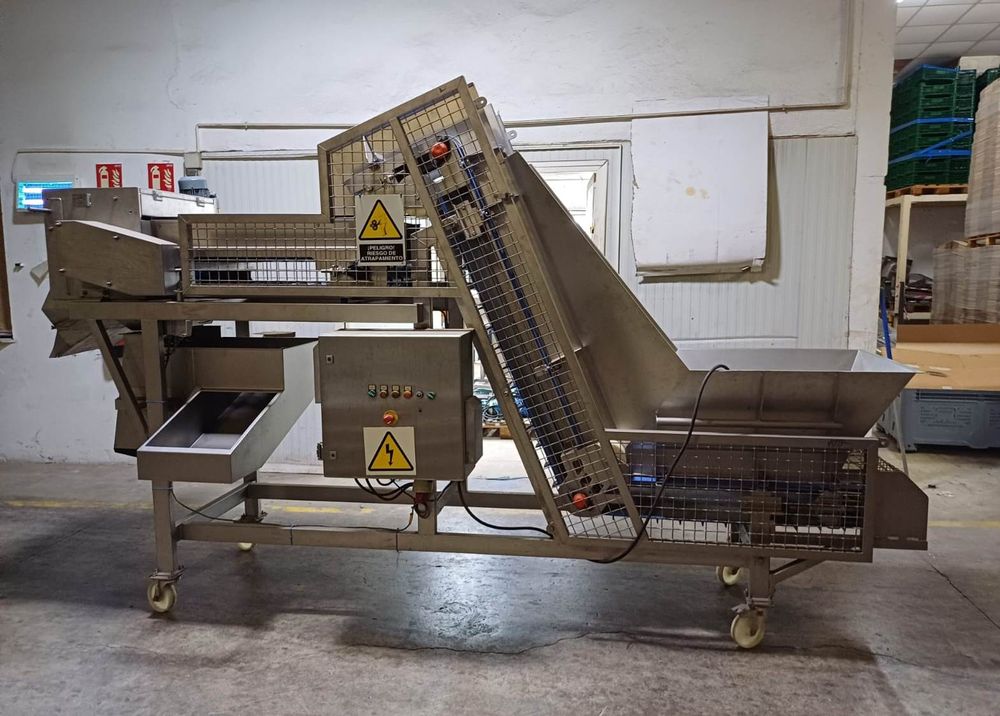

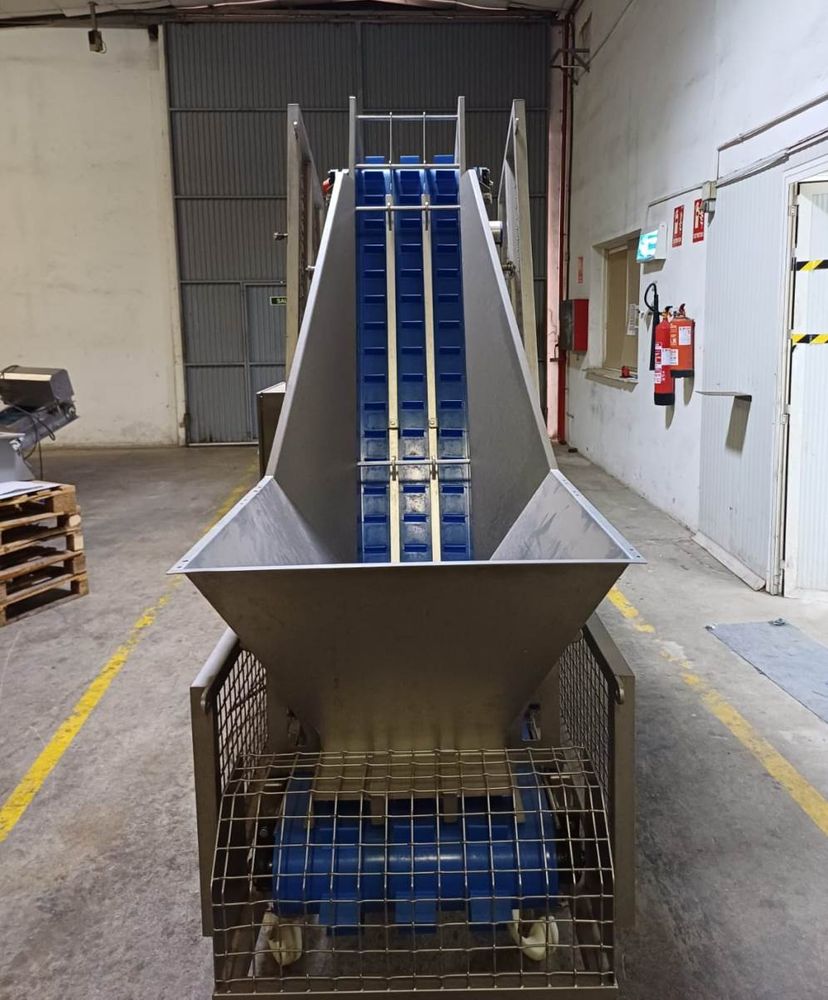

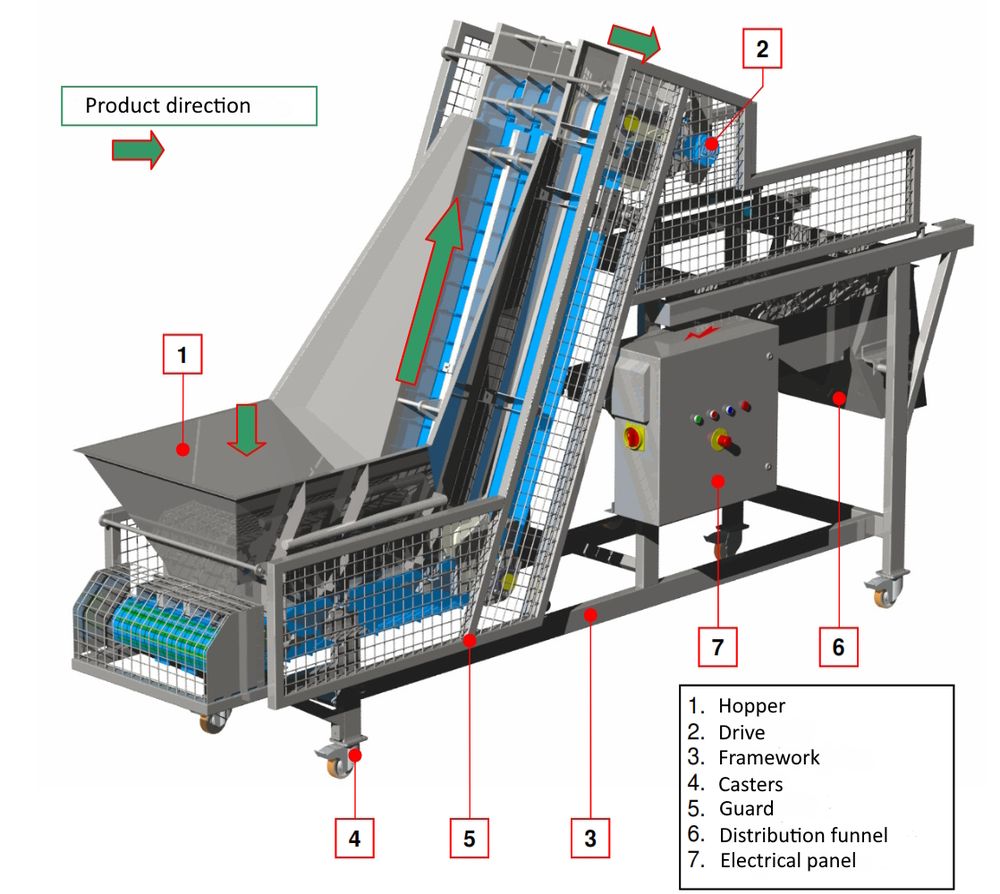

1) Accumulation elevator conveyor:

Voltage: 220/380 V+PE [50 Hz]
Rated power: 0.25 kW
Rated speed: 0.087 m/s
Overall dimensions: length 2,620 mm; width 1,750 mm; height 2,300 mm
Belt effective width: 360 mm
Net weight: 350 kg approx.
Accumulation hopper: 200 litres (max.)

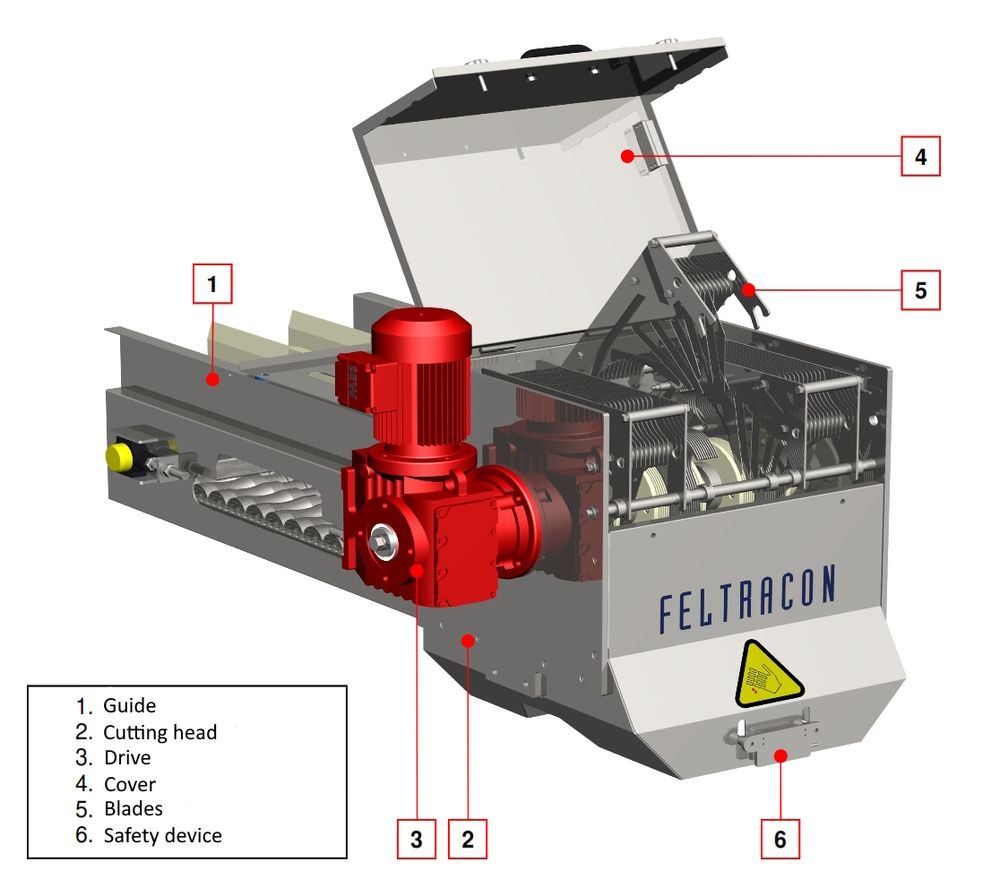

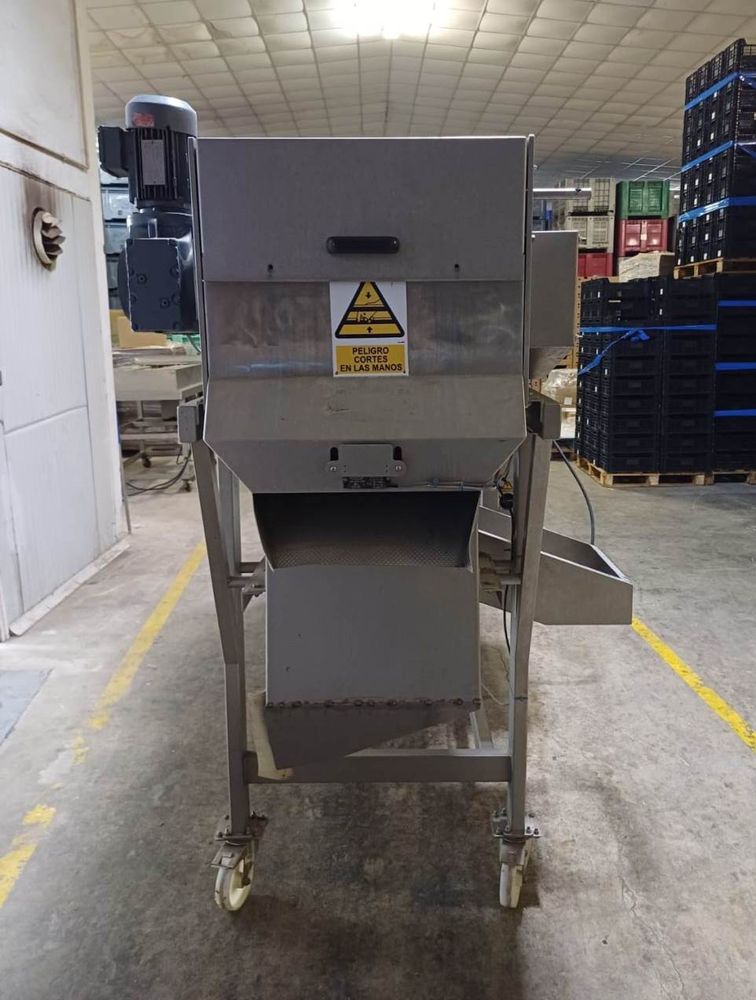

2) Cutting head with feed conveyor:

It cuts the lemons into slices, while both ends of the product are discarded.
Voltage: 220/380 V+PE [50 Hz]
Rated power: 0.75 kW
Max. product feed (including fallen pieces): 180 pcs/min
Usable lemon dimensions: 42 mm
Slice thickness: 7 mm
Overall dimensions: length 1,750 mm; width 1,050 mm; height 1,000 mm
Net weight: 380 kg approx.

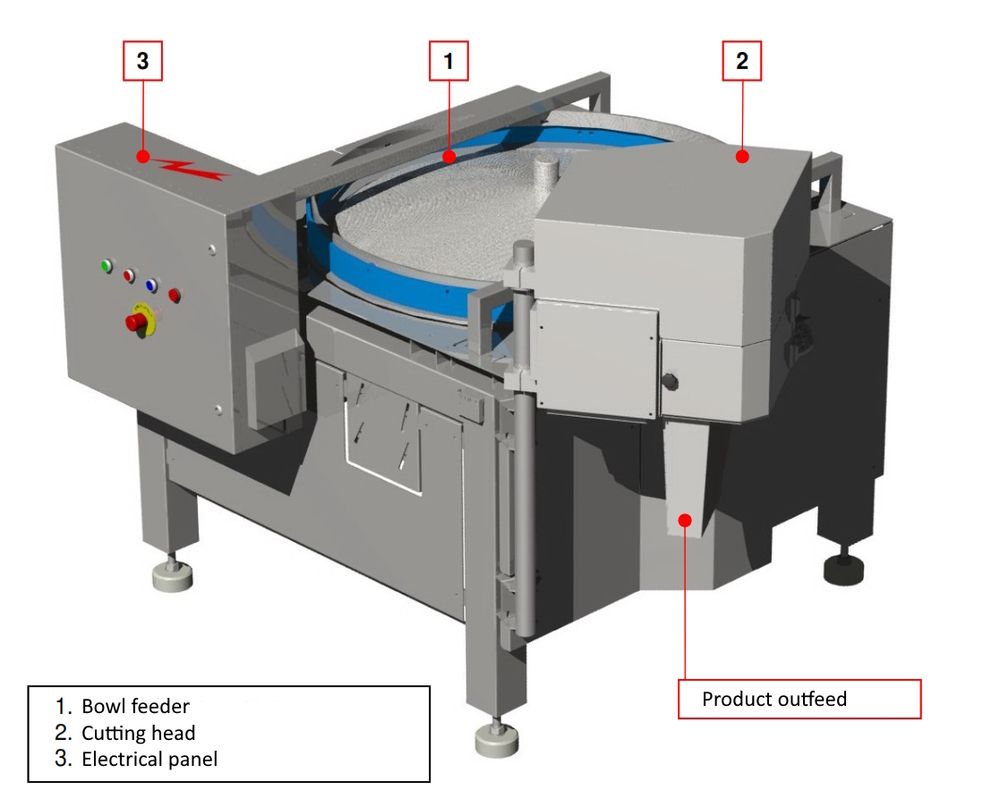

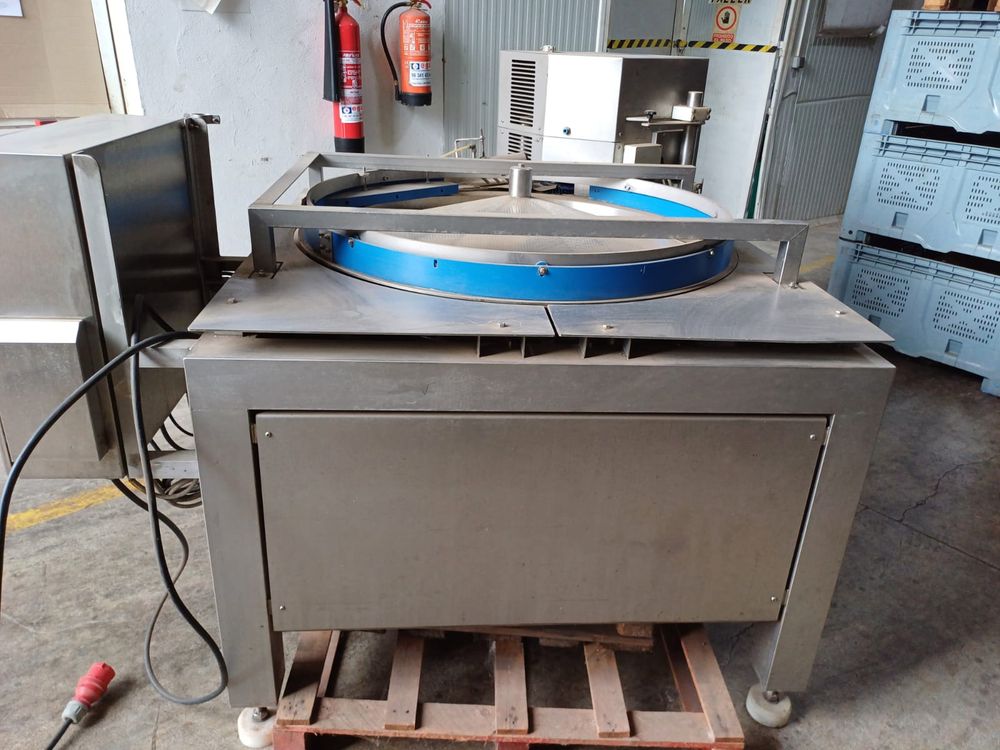

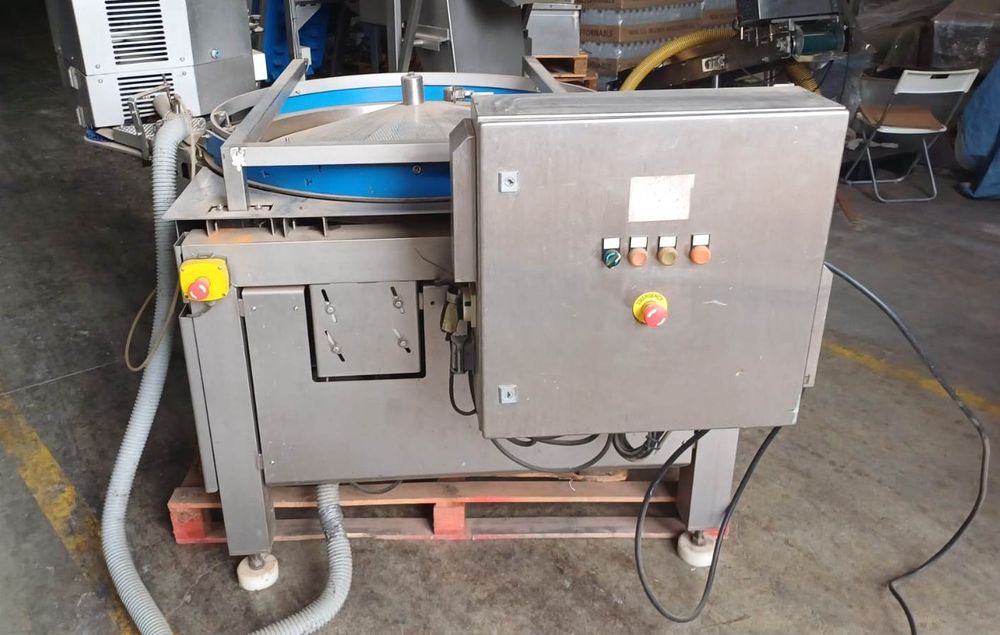

3) Bowl feeder with cutting head:

The bowl feeder guides the lemon slices towards the cutting head, where they are in turn cut into half slices.

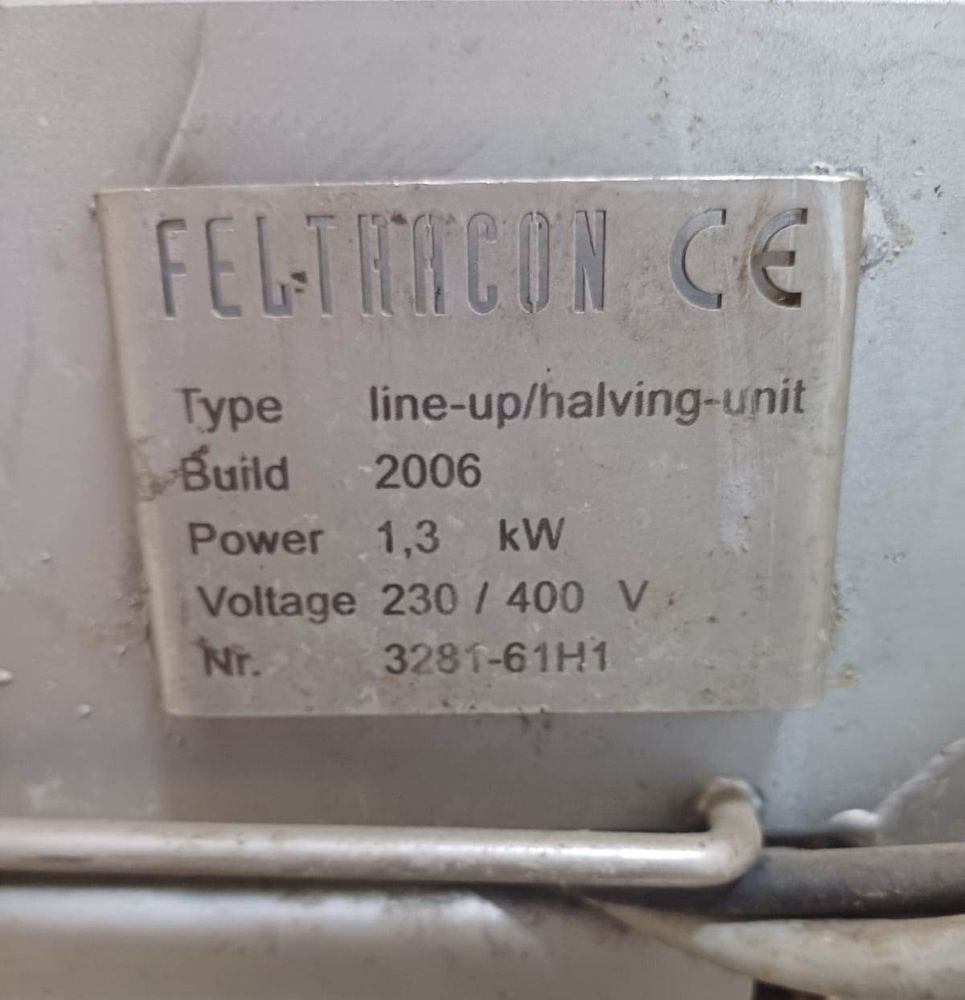

Serial no.: 3281-61H1
Voltage: 230/400 V+PE [50 Hz]
Rated power: 1.3 kW
Max. product feed (including fallen pieces): 1,080 slices/min
Overall dimensions: length 1,750 mm; width 1,050 mm; height 1,000 mm
Net weight: 450 kg approx.
