Farrel Fanuc 0T-i CNC Control Retrofit 2014 35 RPM Live Spindle - CNC Vertical Boring Mill

Reference #24450

Farrel Fixed Rail 192" CNC Vertical Boring Mill With Live Spindle
CNC Retrofit 2014


FEATURES:
Fanuc 0Ti CNC Control Retrofit in 2014

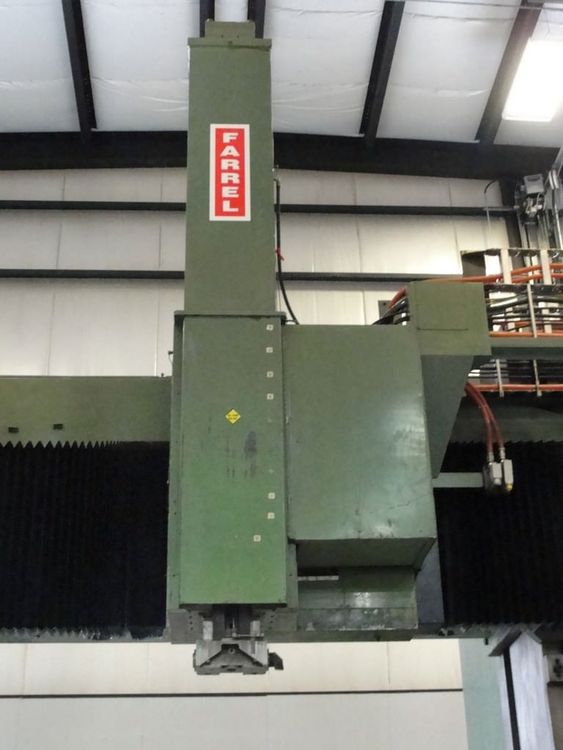

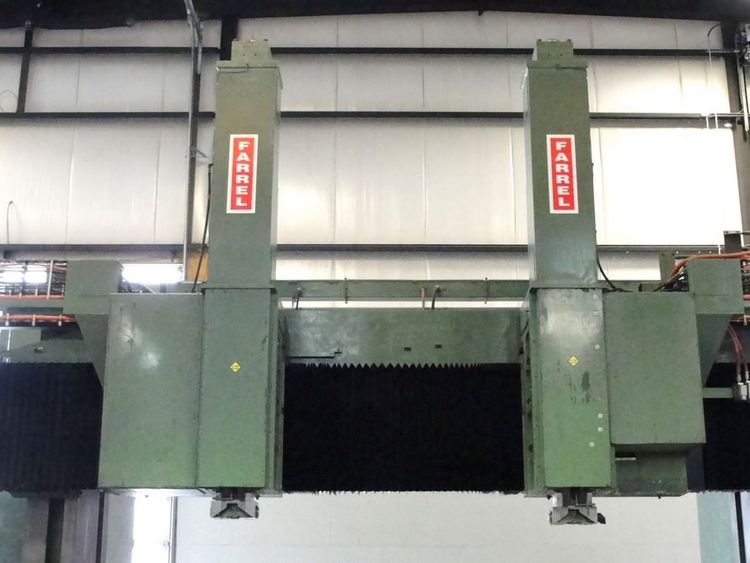

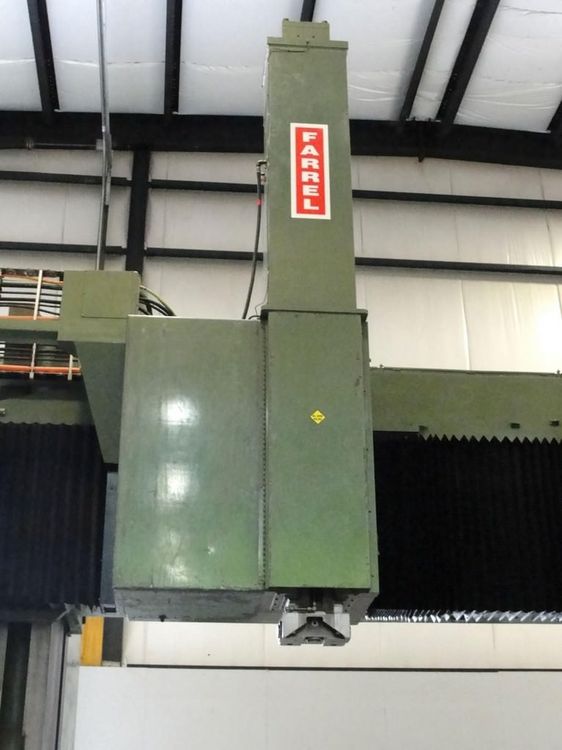

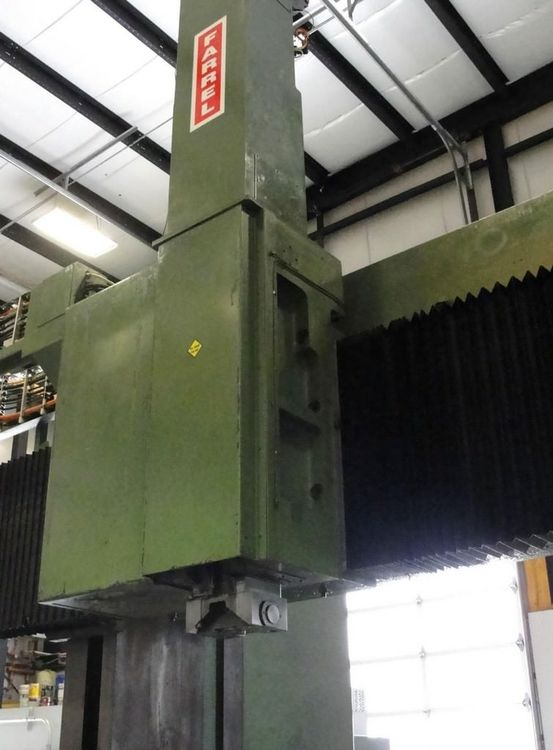

2-Vertical Rams
C-Axis Table With Live Milling
Drilling Attachment
125 TON Table Capacity

CAPACITY:
Table Diameter ........................ 192"
Maximum Swing ......................... 204"
Maximum Height Under Tool ............. 72"
Ram Stroke ............................ 54"
Ram Cross Section ..................... 9.5" x 10"
Table Speeds .......................... .5-35 RPM
Milling Speeds, 2-Ranges .............. To 2000 RPM
Milling Motor, AC Variable Speed ...... 15 HP

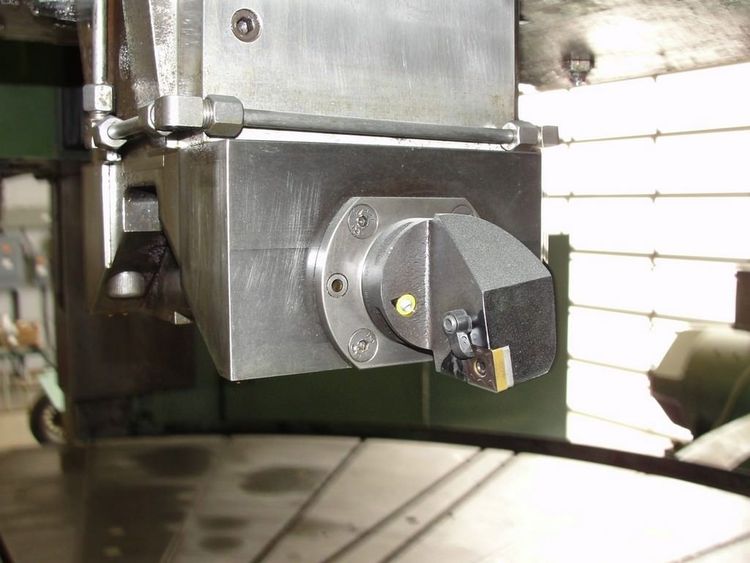

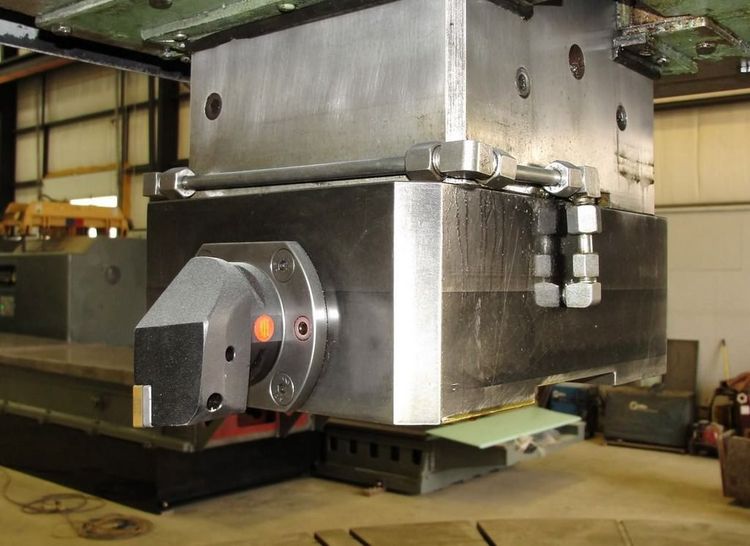

Ram Tooling ........................... Sandvik C-6
Table Weight Capacity ................. 125 Ton
Main Motor ............................ 100 HP

EQUIPPED WITH:

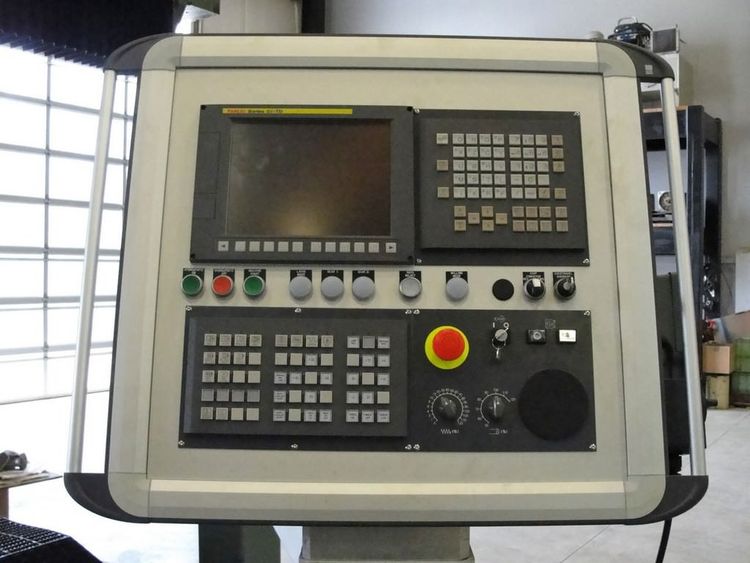

Fanuc 0T-i CNC Control Retrofit 2014
C-Axis Table with Live Milling
Drilling Attachment
New AC Drives Added In 2014
New Heidenhain Scales Added In 2014
Hardened & Ground Ways
Bellow Type Way Covers on Cross Rail
100 HP Main Motor
No Pit Required

NOTES:
Year of Manufacture 1969.
Rebuilt and CNC Retrofit with Fanuc 15T Control
In 1992 By General Electric and C-Axis with Milling Was Added. In 2014
Retrofit With Fanuc 0T-i Controls including; All New Motors, AC Servo
Drives, Electrical Components to CSA Standards, Heidenhain Scales On All
Axes, Sandvik Capto C-6 Tooling System Added to Rams. Condition Excellent.
Complete Documentation Available
