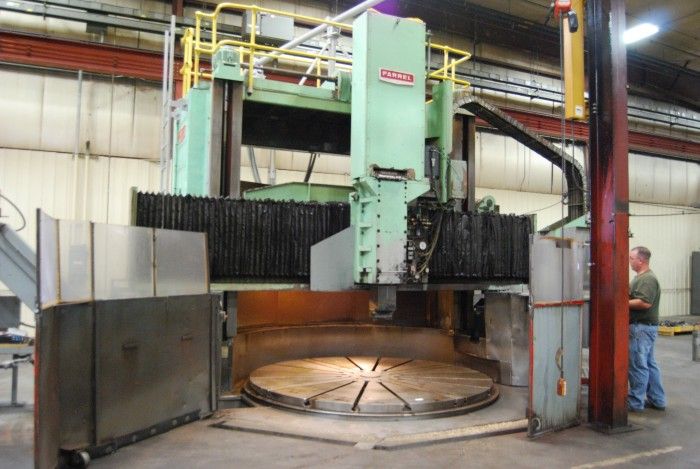

Farrel CNC 120” / 132” 100 Ton Capacity VBM Vertical Lathes

Ref : 2388742-3-MT
Condition : Used
Manufacturer : Farrel
Model : CNC 120” / 132” 100 Ton Capacity VBM
Short Description : Vertical Lathes
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Nov. 2024

Farrel CNC 120” / 132” 100 Ton Capacity VBM
Table Diameter 120” / 3,048mm
Maxi. Swing 132” / 3,353mm
Max. Height Under Tool Holder 88” / 2,235mm
Table Load Capacity (roller bearing) 100 Tons
Table Drive 100 HP
Gear Rating 10 HP / RPM
Table Speed Ranges .75 to 30 RPM, LOW
2.6 to 100 RPM, HIGH
Max. Torque 48,000 lb ft
Ram Section 10” x 10” / 254 x 254mm
Ram Stroke 60” / 1,524mm
Feed Rates .01 – 99.99 IPM
Feed Rates .0001 - .9999 IPR
Rapid Transverse Rates 150 IPM

Equipped With:
Siemens 840C CNC Control
T-Slotted Table w/ 4 Heavy Duty Jaws
Elevating Cross Rail
(14) Tool ATC
100 Ton Capacity Roller Bearing Table w/ 10” sq. Ram
