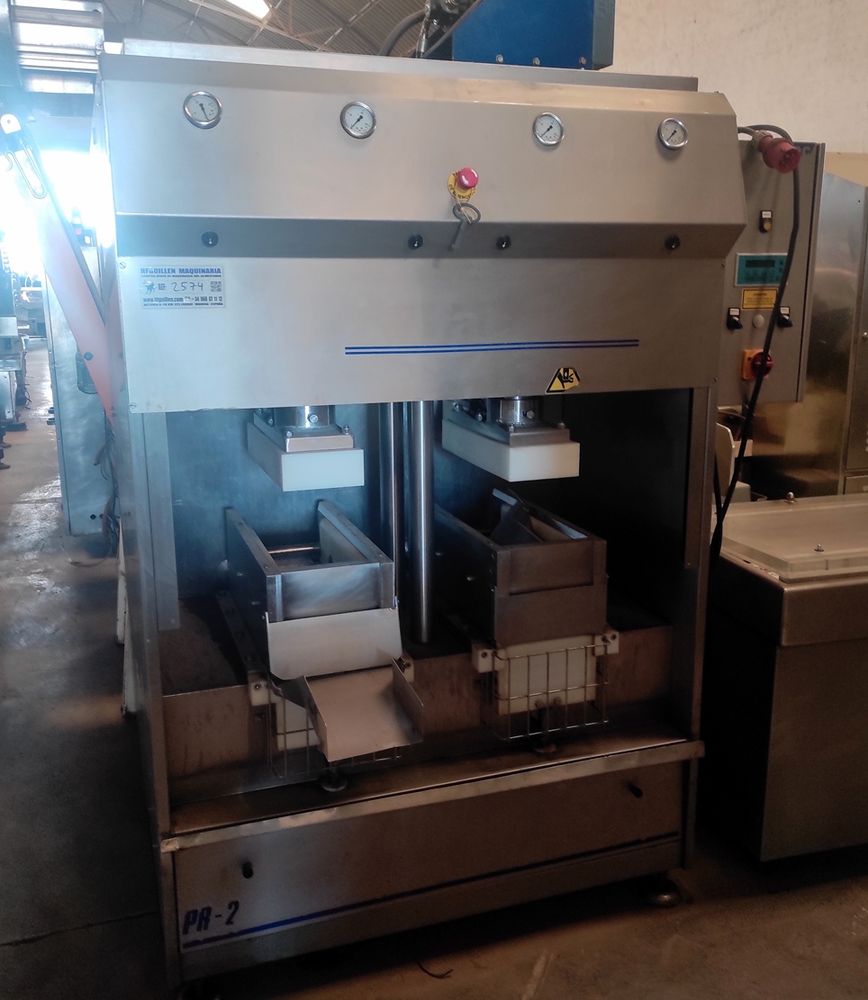

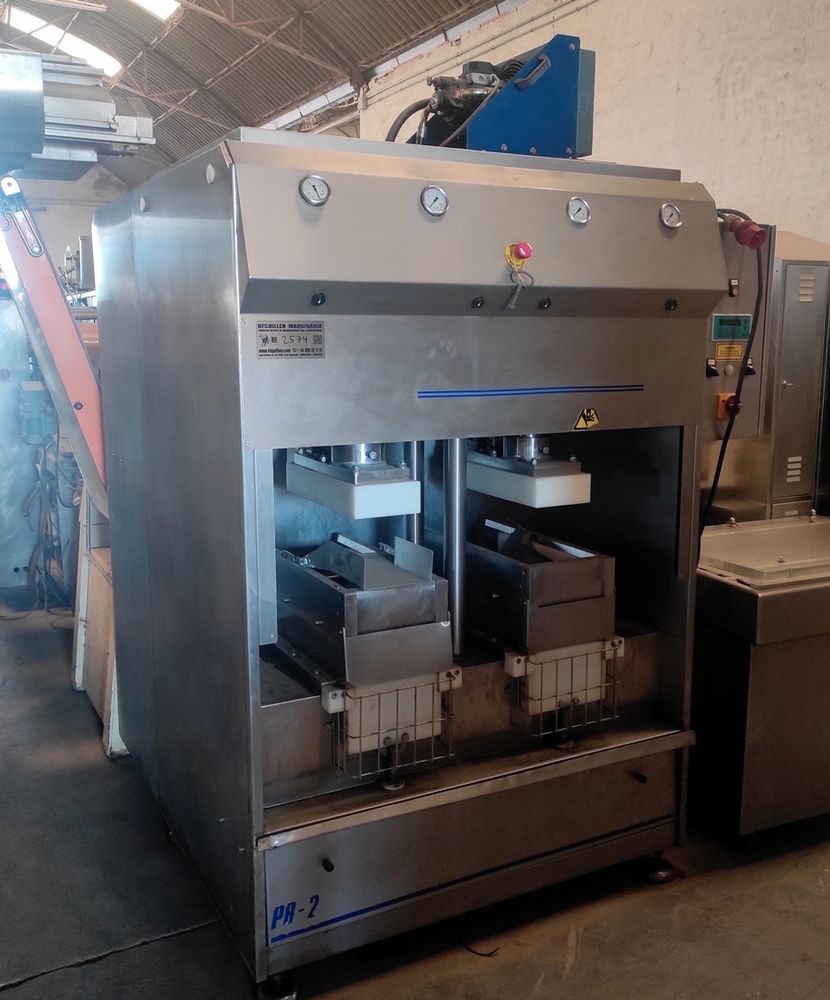

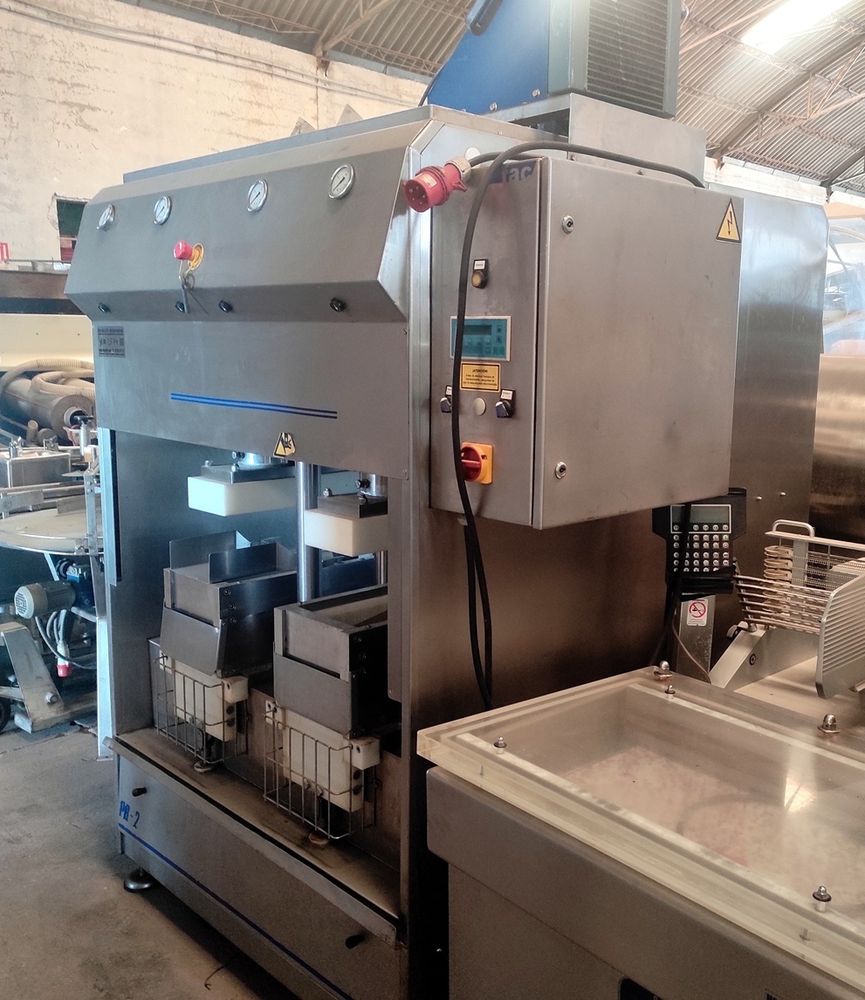

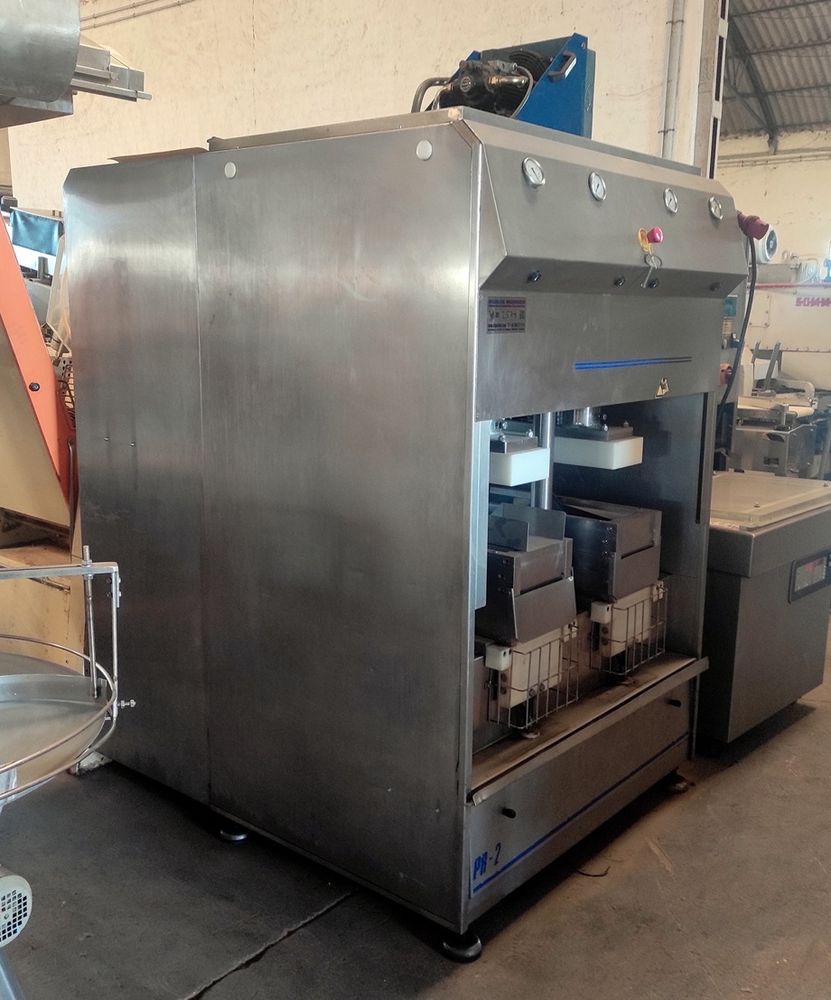

REF-0 FAC PR-2 RECTANGULAR 2D SHAPING PRESS FOR BONELESS CURED HAM
Two-dimensional press for shaping boneless cured hams into rectangular blocks.

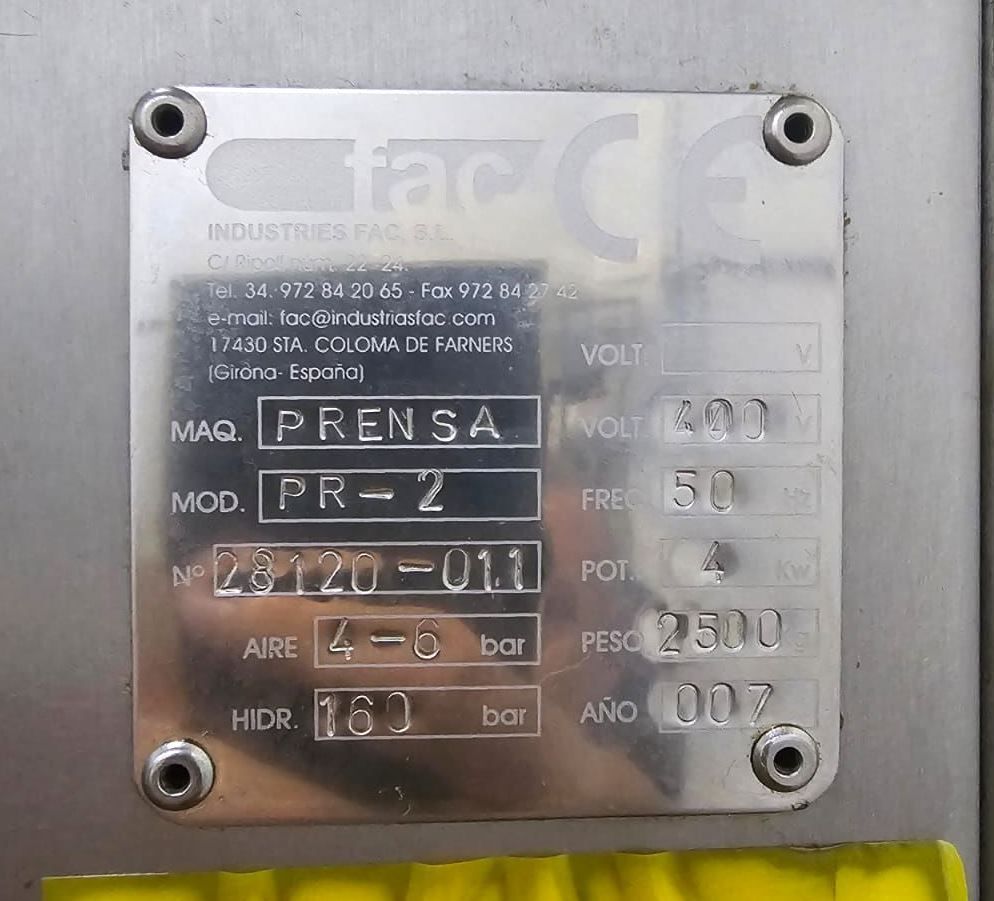

Manufacturer: FAC
Model: PR-2
Serial no.: 28120-011
Year: 2007
Voltage/Frequence: 400 V/50 Hz
Power: 4 kW
Air pressure: 4-6 bar
Hydraulic pressure: 160 bar
Output: 60-240 pcs/hour
Overall dimensions: width 1,660 mm, length 1,600 mm, height 2,060 mm
Weight: approx. 2,400 kg
All AISI 304 stainless steel.

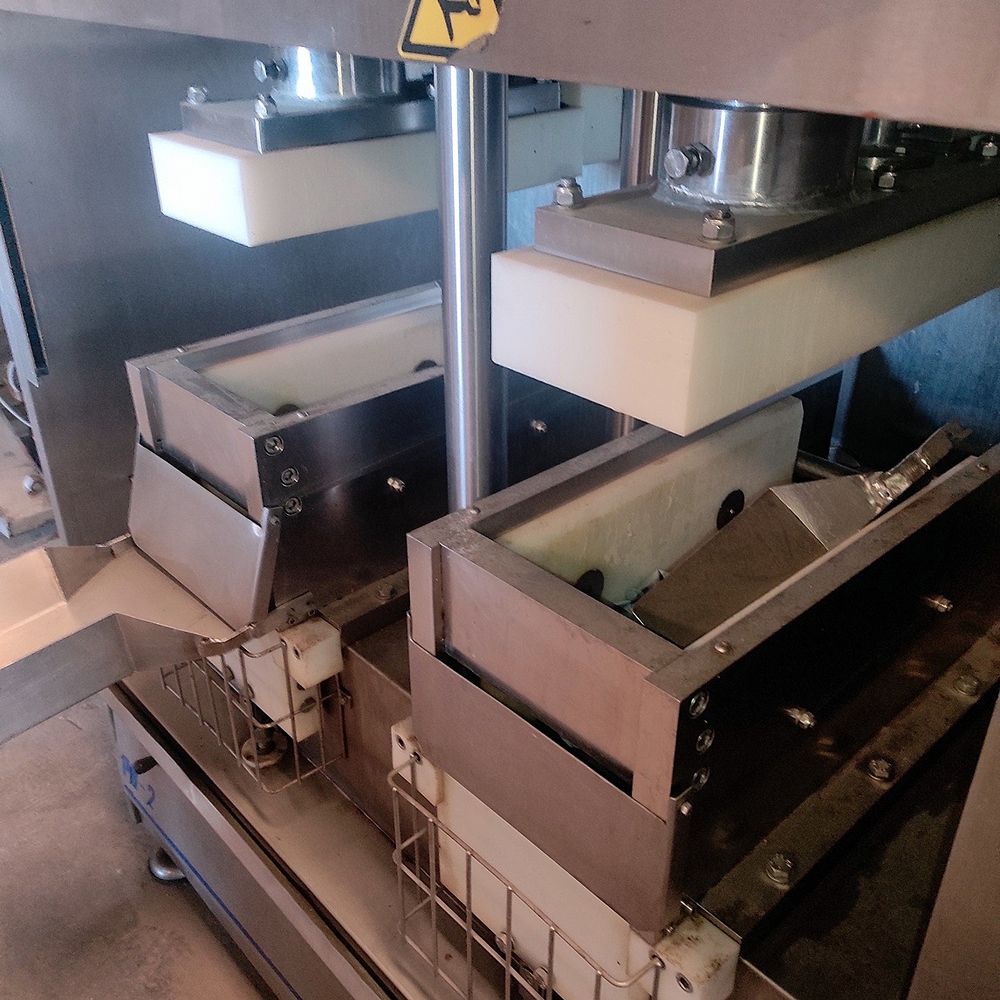

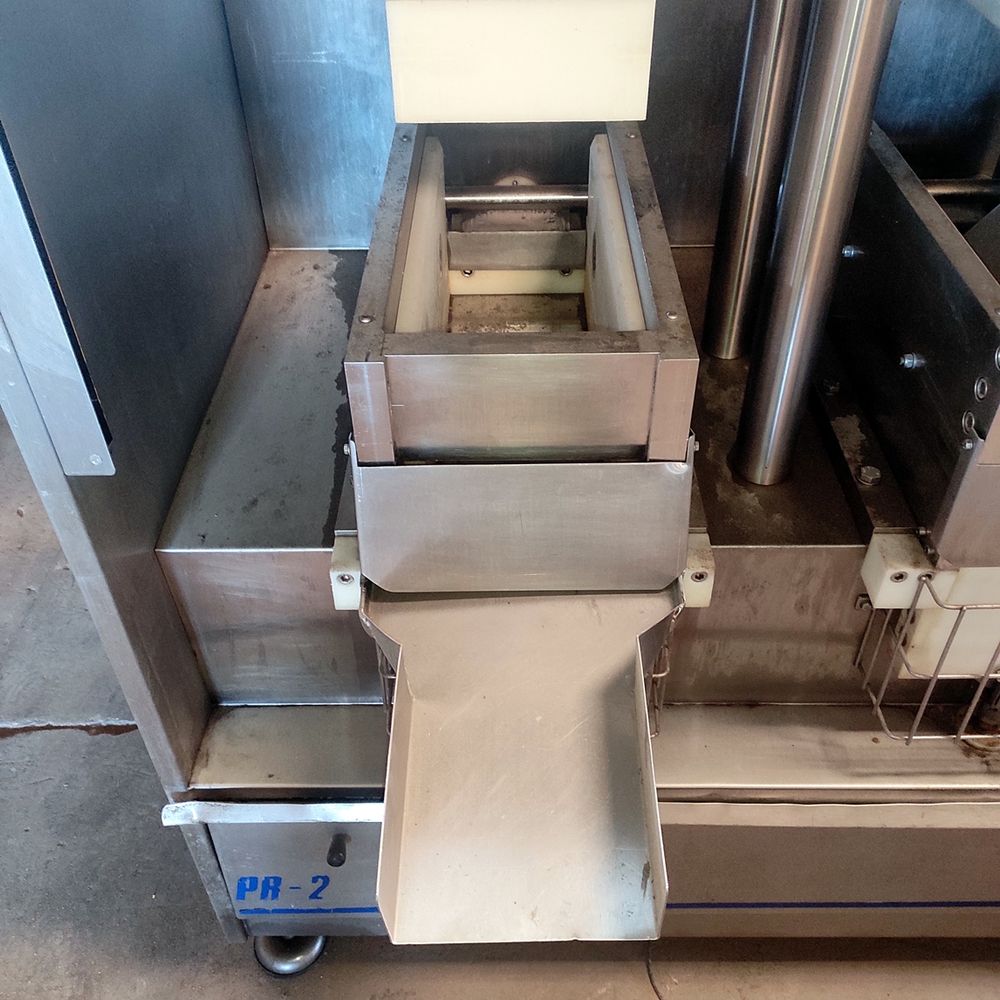

Rectangular moulds also made of stainless steel.
Counter-moulds made of technical plastic.
Hydraulic operation.
2D cyclical massaging and pressing system by means of a vertical and a horizontal cylinder.
Adjustable massaging and pressing time.
The cylinders compress the ham against the mould in sequential cycles of pressing and pause, thus obtaining a uniform product suitable for the subsequent slicing.
