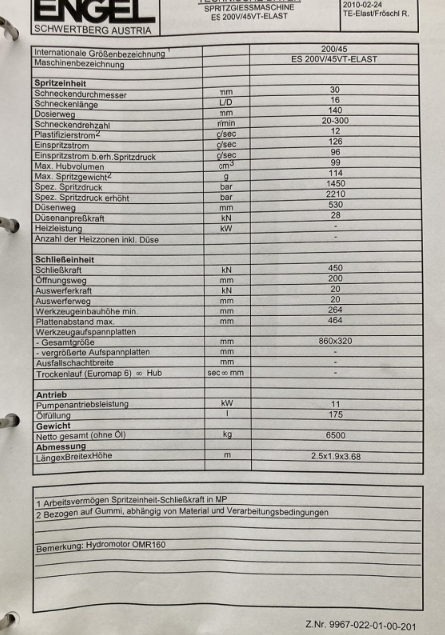

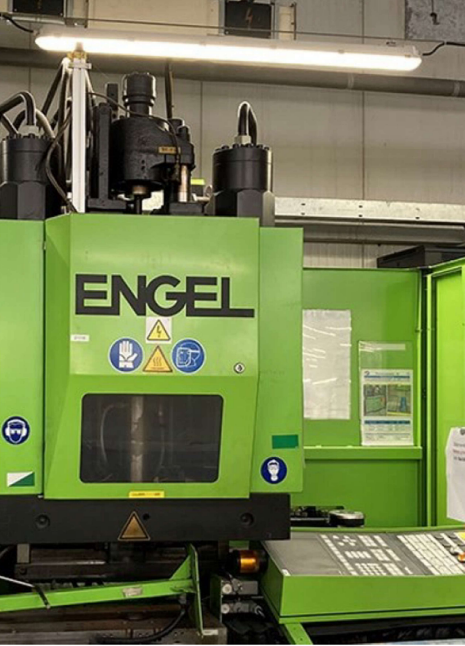

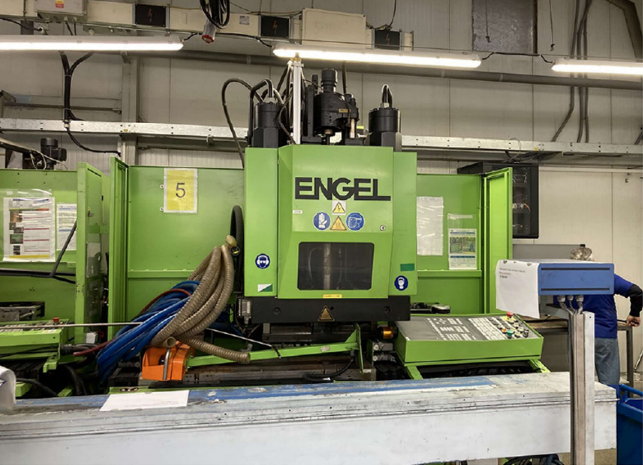

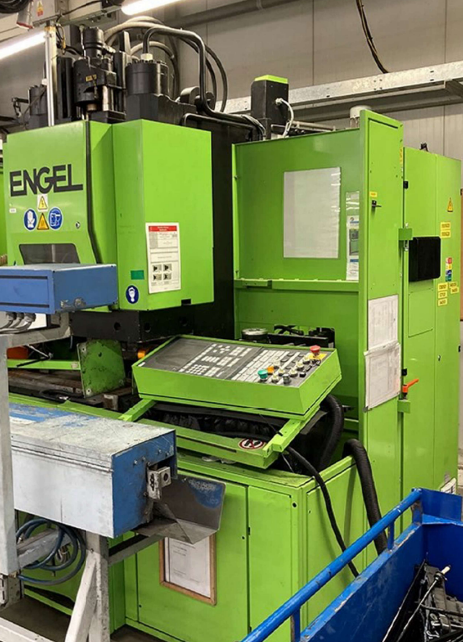

Engel ES 200V/45 VT-Elast 45 T

C-frame injection molding machine

Closing unit:
Closing force: 450 kN
Opening stroke: 406 mm
Heating plate size: 860 x 320 mm
min. tool height: 264 mm
max. platen distance: 464 mm
ejector path: 20 mm
ejector force: 20 kN

Injection unit:
screw diameter: 30 mm
screw length L/D: 16
Dosing path: 140 mm
Stroke volume max.: 99 cm³
Injection weight max.: 114 g
Screw speed: 20 - 300 rpm
Injection flow: 106 cm³/s
Injection flow increased: 71 cm³/s
Specific injection pressure: 1451 bar
Specific spray pressure increased: 2205 bar
Nozzle travel: 530 mm
Operating hours: 19679 h
Pump drive power: 11 kW
Weight without oil: 6,500 kg
Dimensions L/W/height: 2,500 x 1,900 x 3,680 mm

Technical details:
closing force 450 kN
injection volume 99 cm³
screw diameter 30 mm
plate size 860 x 320 mm
Schiesshub 406 mm
