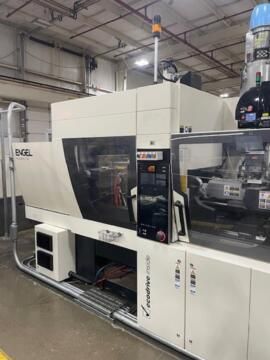

Engel e-victory 170/100 US 112 T

General Specifications
Brand Engel TieBarLess Hybrid Electric
Tonnage 112 Ton
Shot Size 2.75 oz.
Model Number e-victory 170/100 US
Type horizontal
Options & Upgrades Includes Engel Pic A Pneumatic Sprue Picker,
Moretto Dehumidifying Dryer and Loader

Machine Notes
Includes Engel Pic A Pneumatic Sprue Picker, Moretto Dehumidifying dryer and loader,
Double hydraulic corepull on moving platen with proportional directional control valve,
double hydraulic corepull on stationary platen with
proportional directional control valve, 12 zone mold heating control,
Bi-metallic (Ni-basis with tungsten carbide WC reinforcement) for
highest abrasion- and corrosion resistance, working range up to 350 degrees C,
hydraulic package ECODRIVE, oil cooling controlled by control valve,
interface for RJG eDART, counter balance valve for ejector, check valve for ejector,
maintenance switch / repair switch, main power inlet with separate connections,
separate connections for injection molding machine and receptacles,
Three phases transformer, mounted in external box
Used for Nozzles / flange heating 230, Mold heating 230V, Receptacles 230V,
Receptacles 115V, ENGEL e-flomo dynamically controlled mold tempering system,
1 water temperature control manifold, e-temp with automatic pump speed Control,
dynamically controlled mold tempering system.

Technical Specifications
Clamp Electric Toggle
Tie Bar Distance TieBarLess inches x TieBarLess inches
Platen Size 25.59 inches x 23.62 inches
Daylight Min 5.9 inches
Daylight Max 31.5 inches 17.72" Maximum Mold Height
Core Pull Sequences Yes Double hydraulic corepull on moving platen with
proportional directional control valve, double hydraulic corepull on
stationary platen with proportional directional control valve,
Types of Controls CC300
Voltage 480
Dimensions 13.07 ft x 4.92 ft x 6.50 ft

Condition
Overall Condition Like New
Barrel & Screw Like New
Hours Under 250 hours only ran samples
Material Run Delrin 100 / POM
Condition Notes Like New Condition Only Ran Samples
