Doosan Fanuc 21-iTB 1,500 rpm PUMA 400 LMC 2 Axis
EUROPE (Western and Northern)

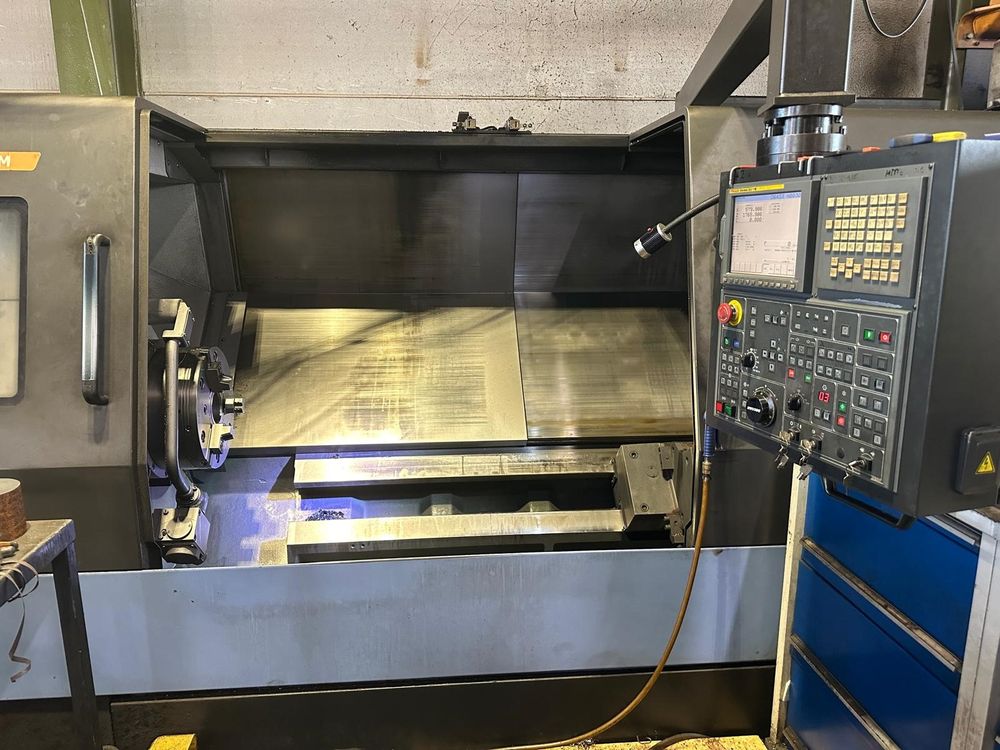

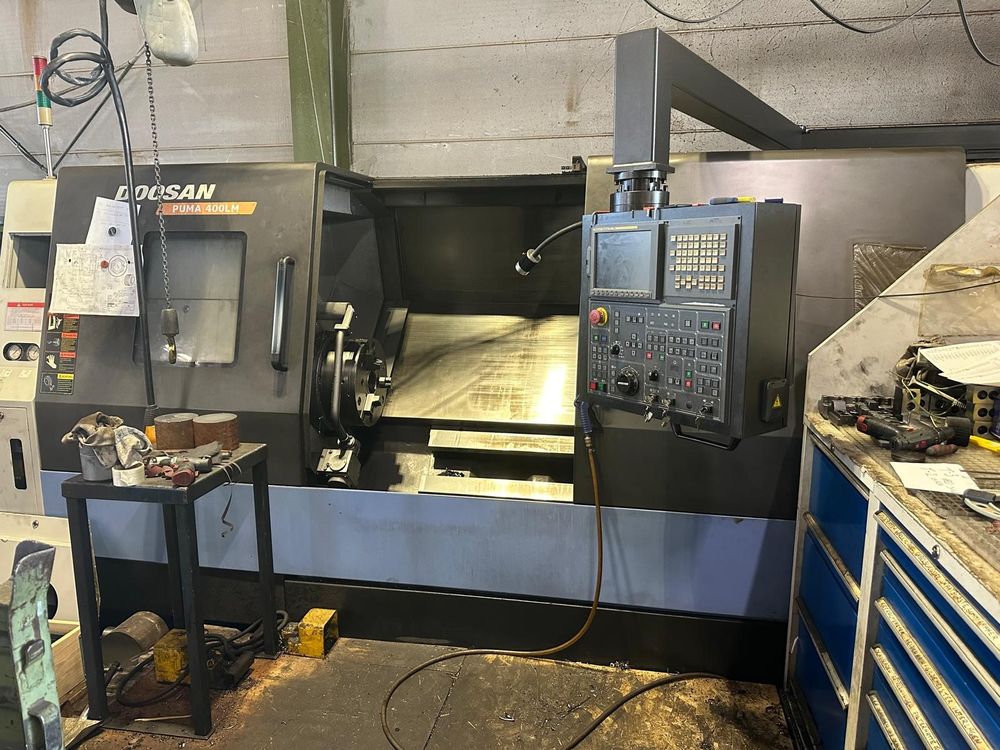

DOOSAN PUMA 400 LMC
Year of construction 2008
control Fanuc 21-iTB
Max. Turning Diameter380 mm
Max. Swing diameter over bed770 mm
Max. Schwing diameter over saddle590 mm
Max. Turning Length2.009 mm
movementsX/Z: 357/2.155 mm
rapid travelX/Z: 16/20 m/min
main spindleDrive power: 30/37 kW
max. speed: 1,500 rpm
spindle nose A2-15
max. bar capacity: 165 mm

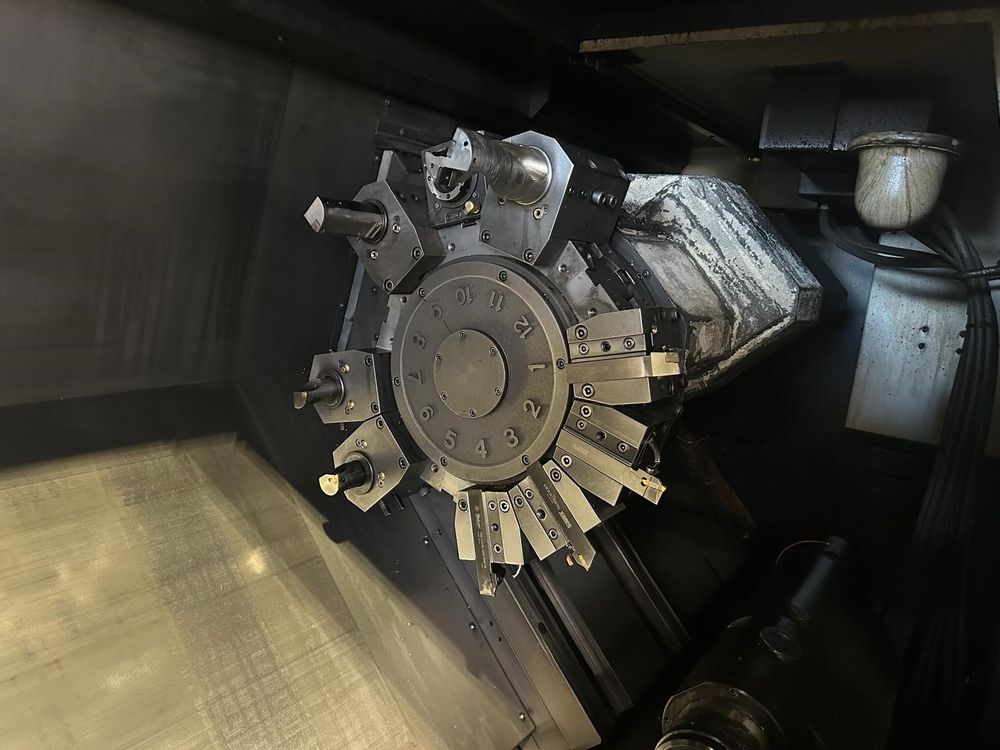

Tool turret
12-station turret, BMT75P
12 driven stations
Drive power: 7.5 kW
max. Speed: 3,000 rpm
further equipment
tailstock MT#6
Main spindle with 2-step gearbox (BF Gear Box)
Tooleye
Preparation for hydraulic steady rest, steady rest carrier
Swarf Conveyor
high pressure pump 15 bar
3-jaw chuck diameter 500, through hole 165 mm
Toolholder package
Dimensions and Weight
Dimensions: 4,582 × 2,440 × 2,292 mm
Machine weight: 11,700 kg
Operating times

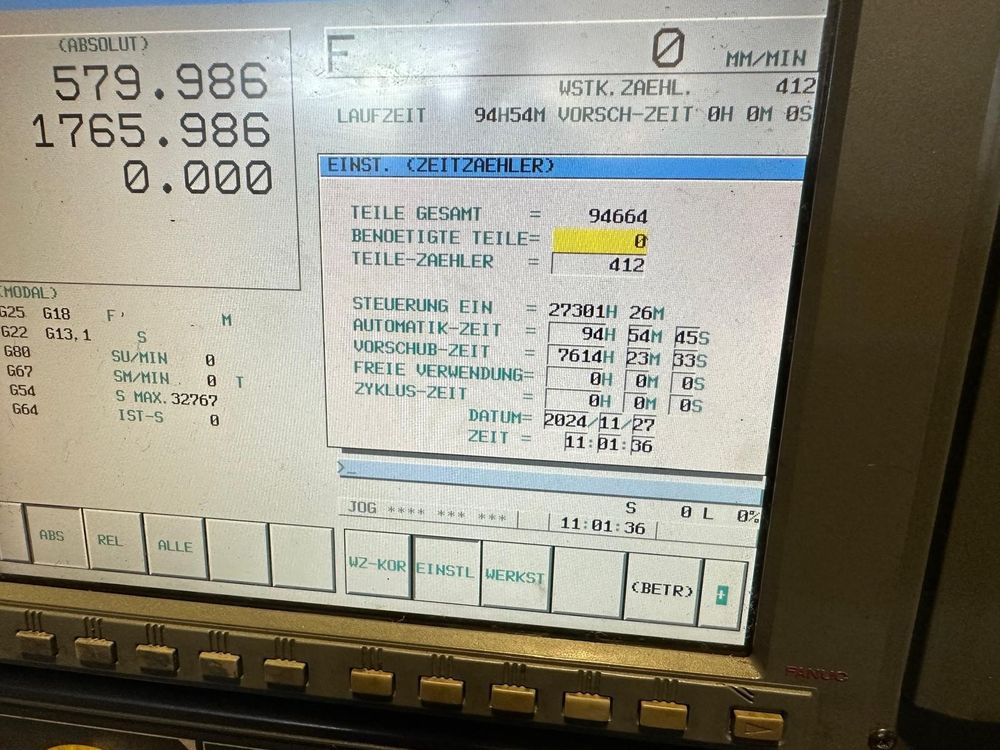

Power-on time: approx. 27,000 hours, total cutting: approx. 7,600 hours
