DMT Bopp 1400 Kg/h

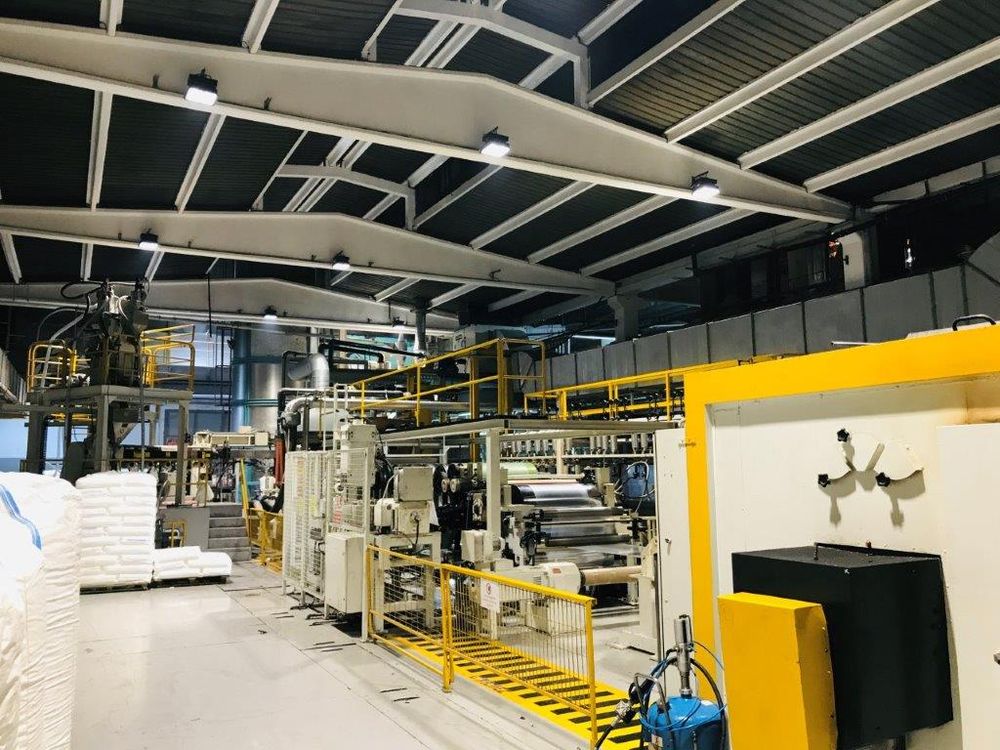

DMT/ESOPP BOPP LINE
Condition Good

Film configuration:
The equipment is capable of producting all the range of film presently available on Specially following configurations are possible :
Standard coextruded film with two heat sealable faces: ABA
One side heat sealable coextruded film : ABB
Plain film with possible modifications of face layers: BBB
Coextruded film with individual faces layer structure : ABCD
Plain and coextruded perlized film,
Plain and coextruded mat film.

FILM THICKNESS RANGE :

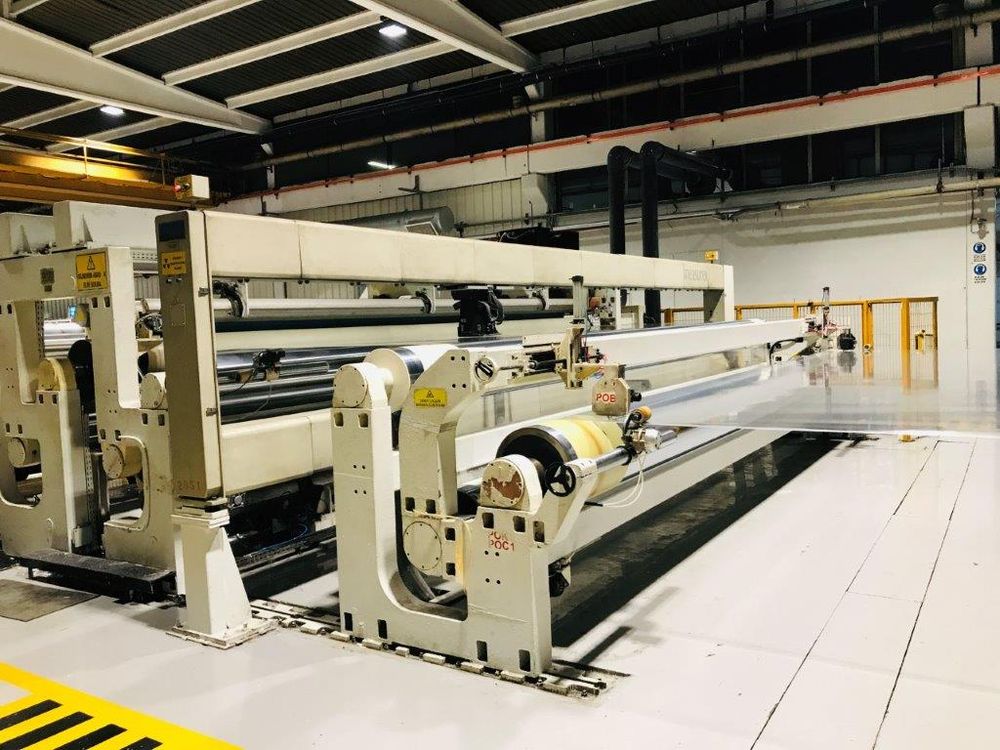

Plain film :12 - 50 k on mill roll winder
Coextruded film : 15 - 50 g on mill roll winder

FILM WIDTH:
Unoriented film (at die exit): 920 mm
Biaxially oriented film (trimmed on winder): 6500 mm

STRETCHING RATIO :
MDO (mechanical) ; 1:1 - 1:10
TDO (mechanical) ; 1:4 - 1:10
LINE SPEED : (mechanical)
Slow section : 5 - 60 m/min
Fast section : 20 - 250 m/min

Operator side: at the left, looking downstream
Drive side: at the right side, looking downstream
000 ton capasity in year
Line capacity: 1400 Kg/h of coextruded film 3 layers A-B-C
