DMG M730 UM Mapps CELOS 10.000 min -1 MORI NLX 2500 SY / 700 3 Axis

CNC Turning- and Milling Center

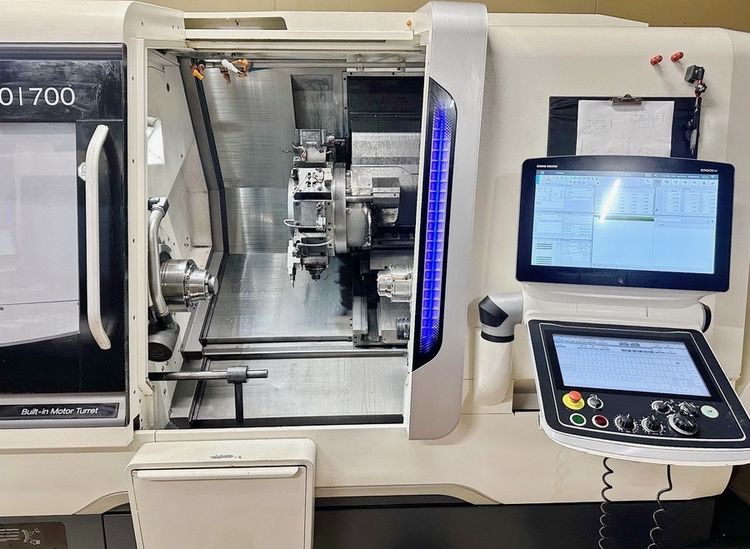

DMG MORI NLX 2500 SY / 700
2018


axis stroke:
control M730 UM Mapps CELOS
dimensions of the machine ca. 5,0 x 3,0 x 2,3 m
Drill shank diameter 50 mm
Driven Tool Positions:
greates pass round over bed 920 mm

Main spindle:
number of toolpositions 12 pos.
power capacity - driven tools 5,5 / 4,2 kW
power capacity - main spindel 18,5 / 15 kW
power capacity - Sub spindle 11 / 7,5 kW
rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min
Schank height for square tool 25 mm
spindle bore 43 mm
spindle nose JIS A2-8
Spindle speed - driven tools max. 10.000 min -1
Spindle speed range subspindle 6.000 min/-1

Subspindel:
Swing dia. over traverse guideway 742 mm
total power requirement 41 kVA
turning diameter max. 356 mm
turning length 705 mm
turning speed range - main spindle 4.000 min/-1
turret change time 0,27 sec.

turret:
weight of the machine ca. 6,4 t
x-travel 260 mm
Y - Axis +/-50 mm
z-travel 795 mm
