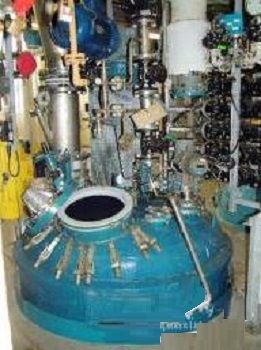

Dedietrich 2,500 Litre Glass Lined Reactor
Ref :
1219344-8-CP
Condition :
Used
Manufacturer :
Dedietrich
Capacity :
2,500 Litre
Short Description :
Glass Lined Reactor
Year(s) :
1998
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
28 May. 2015
”Used 1998 2,500 Litre De Dietrich Glass Lined Reactor”
Description:
• Used 2,500 Litre Glass Lined Carbon Steel Jacketed Reactor
• Model BE2500, 3009, (Blue) glass lining
• Total vessel capacity 3460 Litres
• Total jacket capacity 422 Litres
• Vessel & jacket design pressure 6/-1bar
• Vessel & jacket design temperature -29/200°C
• Dimensions: 1600mm dia, 1420mm tan to tan
• 300mm dished ends, overall height 3480mm
• Support lugs, agitator drive MDL 80
• 5.5kw variable speed FLP Brook Hansen electric motor (1500rpm)
• Single dry running Durametallic mechanical seal
• 3 blade glasslock agitator, beavertail baffle c/w tantalum thermotip
• Complete with spark test certificate
