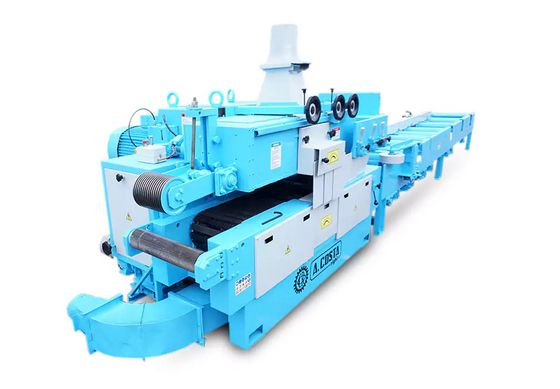

Costa LEOPARD ST 350/200 Tracked double shaft saw

Track width 350 mm
shaft width 370 mm
max cutting height 200 mm
max blade diameter 300 mm
diameter of the disk hole 80 mm

* in advance
flingers +
pressing sliding shaft +
flingers +
2 smooth sliding rollers +
flingers +
shaft with saws 75kW
3 smooth sliding rollers +
flingers +
smooth shaft +

* from down
sliding roller +
flingers +
caterpillar +
shaft with saws 95kW
caterpillar +
1 output shaft, toothed, pulling +

rolls pneumatically pressed +
max blade diameter 300 mm
electric lifting of the top / bottom body 1,1kW
automatic central lubrication +
Smooth feed speed regulation 3kW
diameter of the extraction nozzle 190mm, 200mm

feeding table with guide and pneumatic clamp +
rolls in the feeder:
1 skidding, 9 pulling +

feeder dimensions length / width / height 6520x1300x1050mm
machine dimensions length / width / height 2850x2410x2170mm
total weight approx 8000kg
