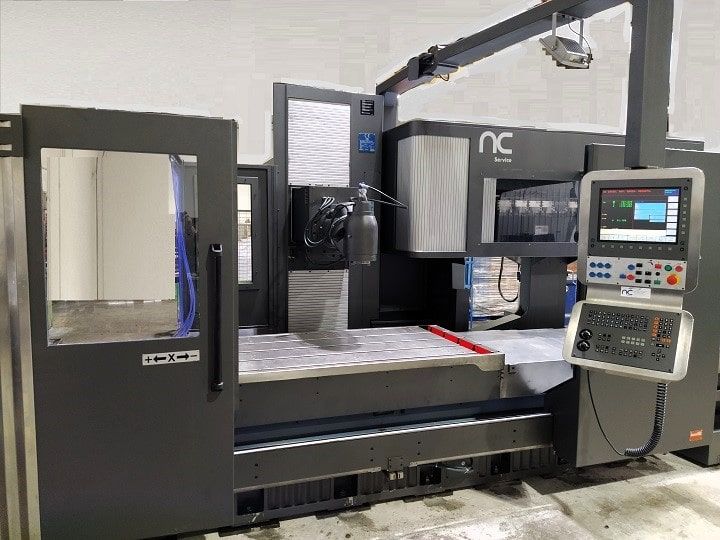

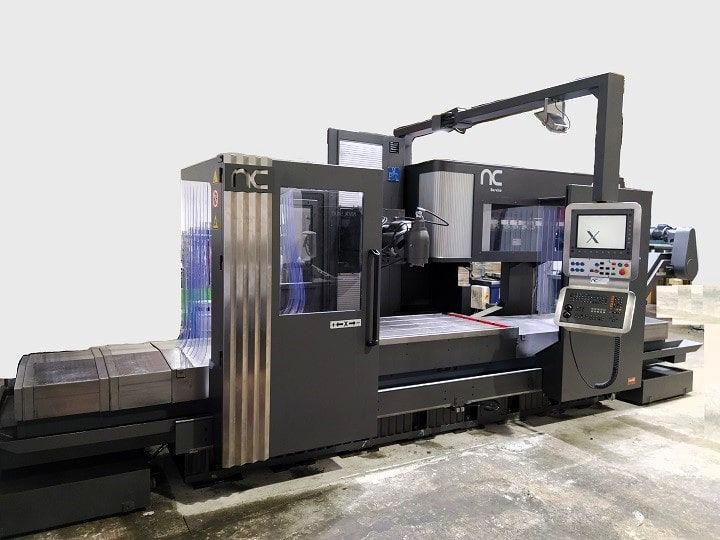

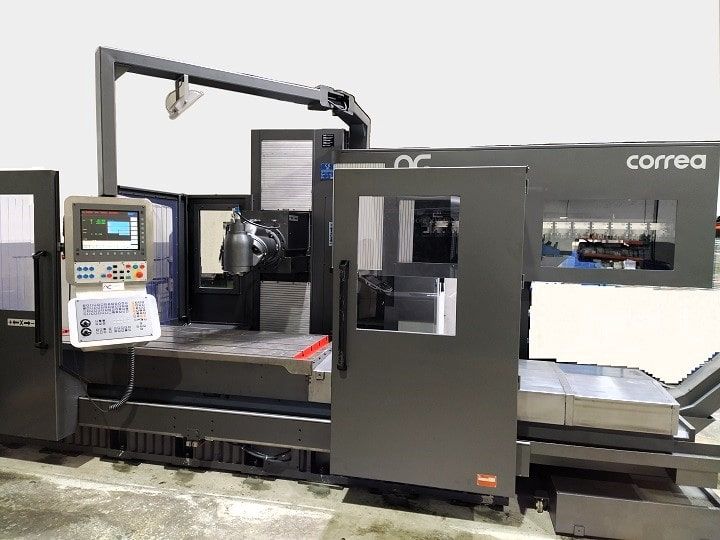

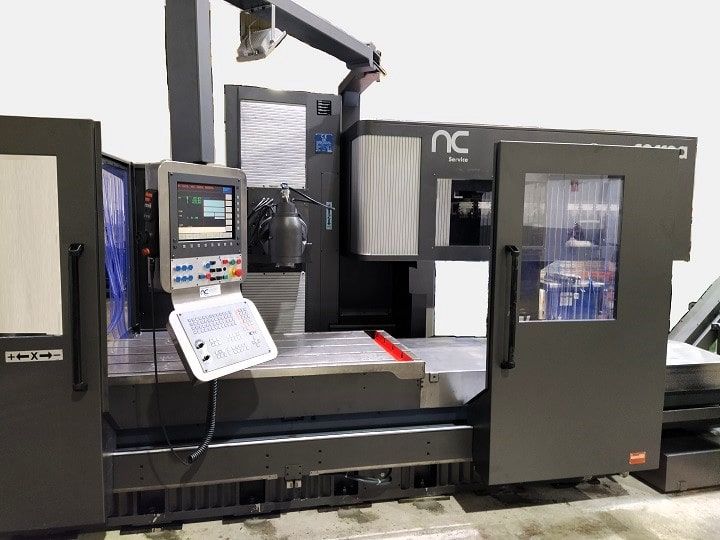

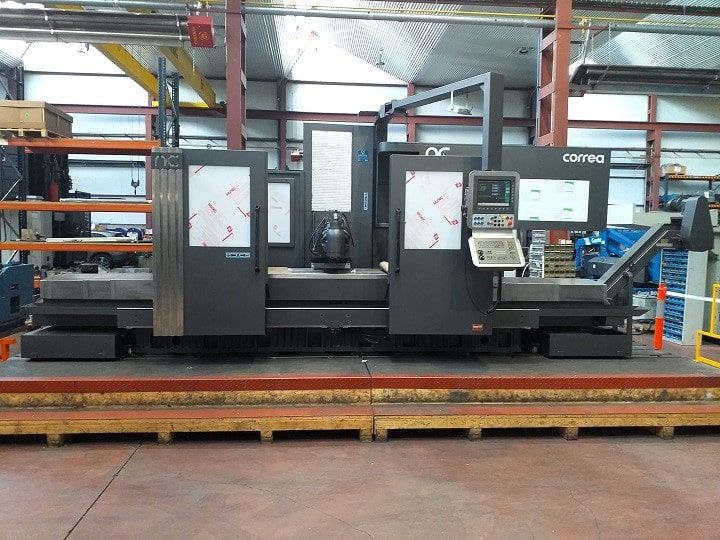

Correa PRISMA25 3000 rpm

Correa PRISMA25
Year of manufacture: 2006
Retrofitted: 2024
Numerical control: HEIDENHAIN TNC-530

Dimensions
Table dimensions: 2800 x 900 mm
Number of T slots: 5
T slots dimensions: 22 mm

Traverses of axis
X axis traverse: 2500 mm
Y axis traverse: 1000 mm
Z axis traverse: 1000 mm

Milling head

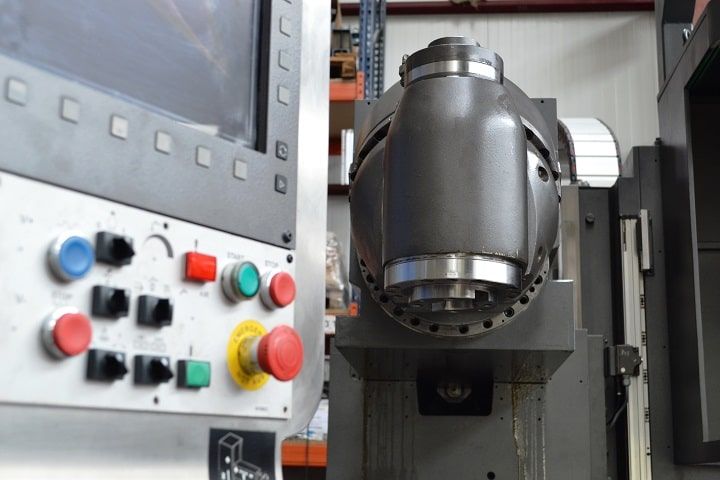

Head type: Universal Auto-indexing UDG (2.5º)
Tool clamping system: Hydraulic
Taper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872
Speed range: 20 - 3000 rpm
Spindle power: 22 kW

Feedrates
Rapid feedrate (X / Y-Z): 20000 mm/min / 12000 mm/min

Weight and dimensions
Maximum weight on table: 4000 kg
Machine weight approx.: 14500 kg
Machine dimensions approx.: 7367 x 5070 x 2803 mm

Accesories
Guarding

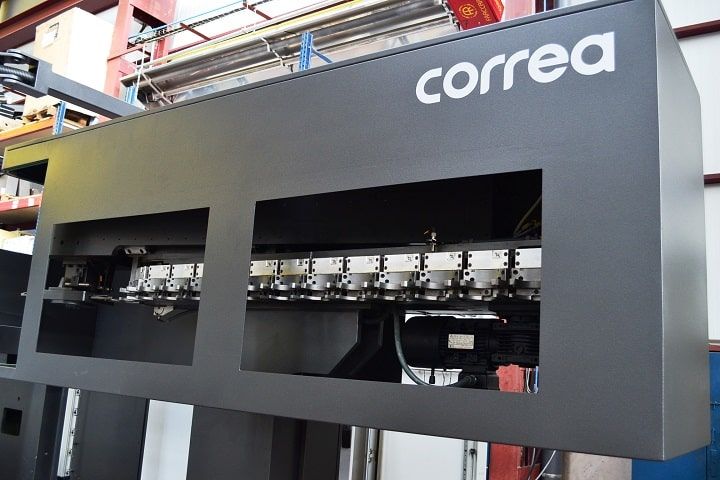

Automatic tool changer: ATC30

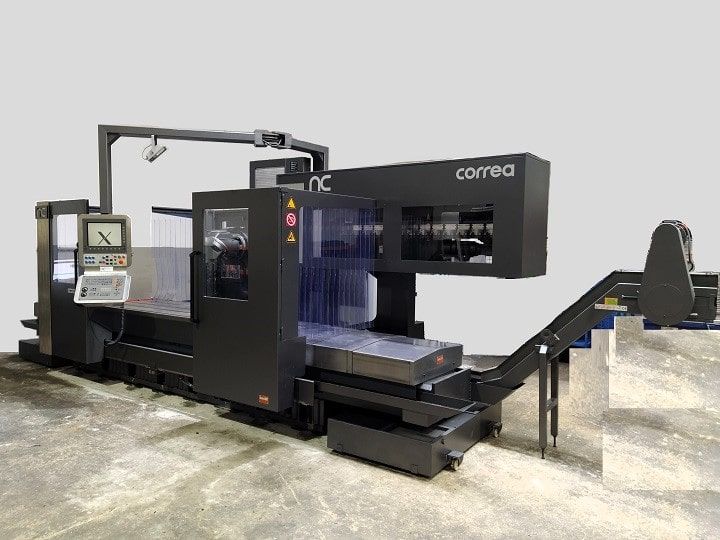

Chip conveyor: rear longitudinal
Rotary table with tailstock
External coolant & high pressure coolant through spindle
Electronic handwheel: HR-420
