Clausing CNC Control 700 RPM TLA 29 X 200 HEAVY DUTY CNC FLATBED LATHE 2 Axis

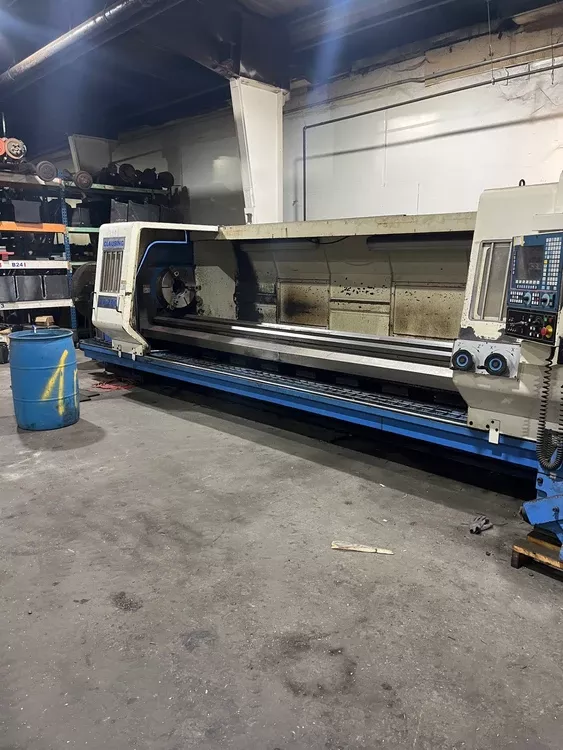

CLAUSING TLA 29 X 200 HEAVY DUTY CNC FLATBED LATHE
Year 2002

Swing Over Bed 29.1" GAP 35"
Turning Diameter, Shaft Diameter 17.3"
Machining Length 190"
Distance Between Centers 200"
Chuck Size 1, 2 20"
Spindle Nose 1, 2 A2 - 11
Spindle Bore Diameter 1, 2 5.9"
Spindle Bar Capacity 1, 2 5.9"
Spindle Speeds 7 - 700 RPM
Gear Ranges 3 AUTO
Spindle Horsepower 1, 2 30 HP
X - Axis Travel 1, 2 19.7"
Z - Axis Travel 1, 2 200"
Rapid Traverse Rates X1, X2 236 IPM
Rapid Traverse Rates Z1, Z2 236 IPM
Turret Configuration 1, 2 4 POSITION
Tailstock Quill Diameter 4"
Tailstock Taper MT 6
Tailstock Quill Travel 5.9"
Tailstock Travel 175"

Equipped with
COOLANT
HARDENED AND GROUND WAYS
MULTIPLE THREADING CYCLES
BOX WAY CROSS SLIDE AND CARRIAGE
HAND WHEELS X AXIS AND Z AXIS FOR MANUAL MOVEMENT
FAGOR 8055TC CNC ''TEACH STYLE CONTROLS'' WITH HANDLES
17" STEADY REST
12 " STEADY REST
ROLLER FOLLOW REST
CHIP CONVEYOR
