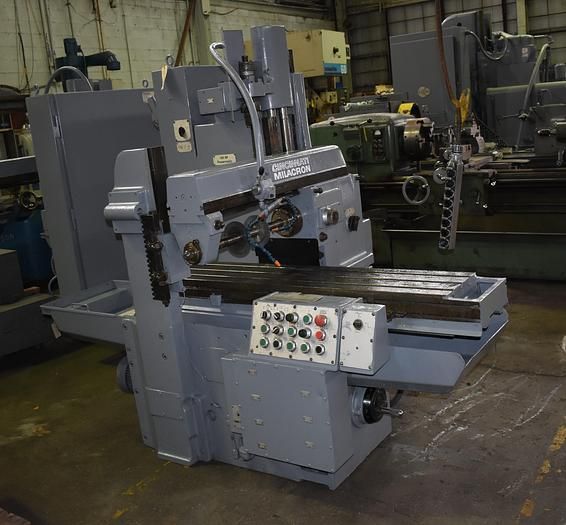

Cincinnati Milacron 105-122 HORIZONTAL-SPINDLE PRODUCTION MILL 1200 RPM

105-122 CINCINNATI-MILACRON "POWERMATIC 100 RF"
Model 105-122

EQUIPPED WITH:
Rise and Fall Head Travel
Outboard Arbor Support - (2) Arbors
Some Change Gears
Bijur Automatic Lubrication System

CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L 12" x 54"
Table Working Surface, W x L 12" x 54"
Table Longitudinal Travel (X-Axis) 24"
Spindle-Head Vertical Travel (Y-Axis) 11"
Quill Cross Adjustment (Z-Axis) 3"
Spindle-Center to Table-Top, Minimum 3.25"
Spindle-Center to Table-Top, Maximum 14.25"
Quill Diameter 6"
Spindle Nose Diameter 5.06"
(16) Spindle Speeds, Range 30 to 1200 RPM
Longitudinal Table Feeds, Range 1 to 40 IPM
Vertical Spindle-Carrier Feeds 1 to 40 IPM
Power Rapid Table Traverse 300 IPM
Spindle Motor, Horsepower 7.5 HP
Feed Drive Motor, Horsepower 1.5 HP
Electrical System 220-440/3/60
Floor Space Required, L x D 7'7" x 5'6"
Overall Height 6'
Weight, Approximately 5700 LBS
