Cincinnati Boring Mill Table Type Machine 20.3 cm Max. 3600 Rpm
Ref :
494644-3-W
Condition :
Used
Manufacturer :
Cincinnati
Model :
Boring Mill Table Type Machine
Spindle Size :
20.3 cm
Spindle Speed :
Max. 3600 Rpm
Year(s) :
1980
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
10 Sep. 2012
Brand: Cincinnati
Year: 1980

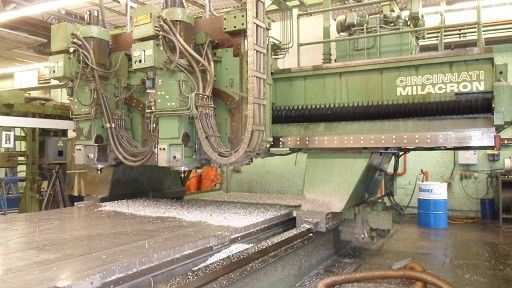

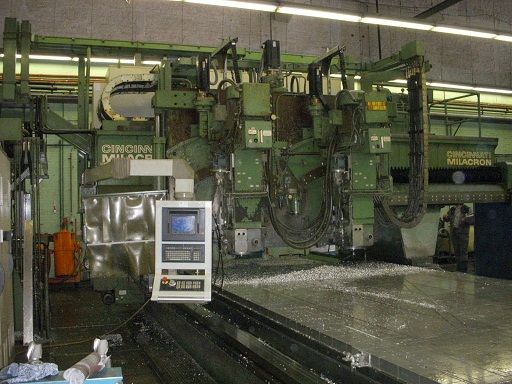

BORING MILL TABLE TYPE MACHINE
Specs
• 2 Milling heads
• 4 axis
• X stroke 6080 mm
• Y stroke 3048 mm left head crossing all table width
• Z stroke 558 mm
• A tilting cap +/-22°
• Table 3048 x 6080 mm
• Spindle 3600 rpm, 22 kw
• Distance between spindle axis 1 524 mm
• Maxi clearance under spindle nozes 711 mm
• Spindle quill ajustable 12 mm
• Spindle dia 203 mm
• Controller NUM
