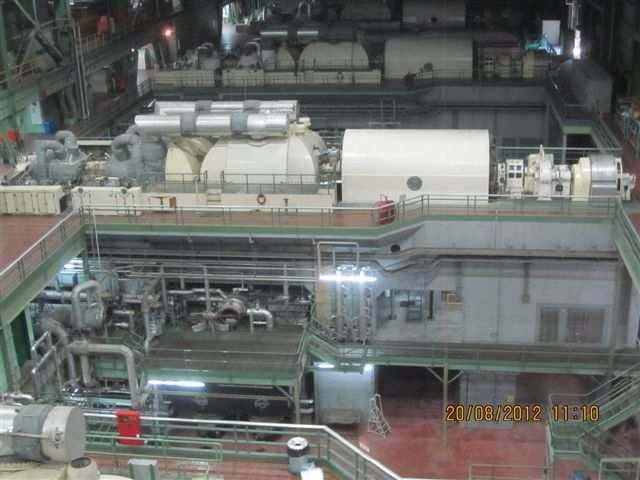

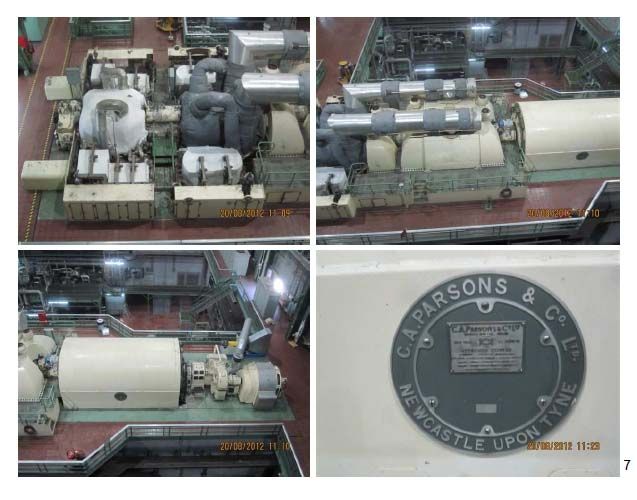

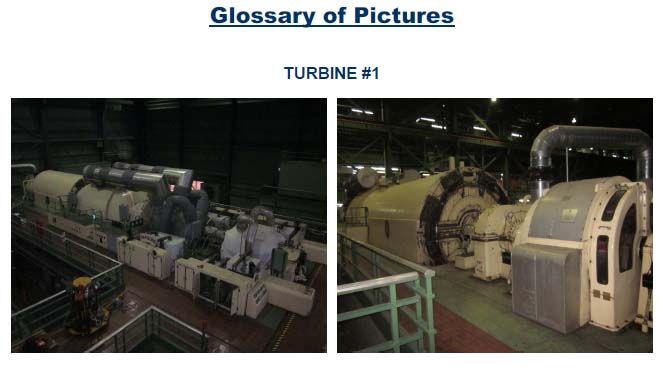

C.A. Parsons Steam Turbine 150/165 MW

Brand: C.A. PARSONS
STEAM TURBINES
(SPECIFICATIONS)
• 150/165 MW
• 176.47/194 MVA
• 30/45 P.S.I.G.
• Is: 6368/7000 AMP
• Es: 16,000 V
• Exc: 350/365 VOLT
• Exc: 1970/2100 AMP
• F.P.: 0.85 – 60 Hz

SCHEDULE OF TURBINE INFORMATION
• Economical and maximum continuous rating M.W. 150
• Steam pressure at main emergency/stop valve lb/sq.in.g. 1800
• Steam temperature at main emergency/stop valve oF 1000
• Steam pressure at H.P. exhaust lb/sq.in.g. 421
• Steam pressure at reheat emergency/stop valve lb/sq.in.g. 387
• Steam temperature at reheat emergency/stop valve oF 1000
• Absolute pressure at L.P. exhaust in.Hg. 1.0
• Rotational speed r.p.m. 3600
• Number of steam bleed stages 6
