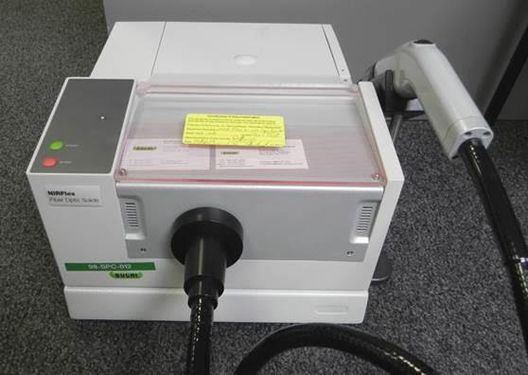

Buchi NIRFlex N-500 FT-NIR Spectrophotometer

With its dedicated operator interchangeable measurement cells to accommodate many different sample types,
the NIRFlex N-500 is a uniquely, flexible FT-NIR Spectrometer.
Its Fourier Transform polarization technology guarantees the same superior performance across
different environmental conditions; from laboratory to warehouse.

Specifications:
Dimensions (W x D x H): 350 x 250 x 450 mm
Spectral range: 800 – 2500 nm (if not specified differently for measuring cell)
Resolution: 8 cm−1 (with boxcar apodization)
Type of interferometer: Polarization interferometer with TeO2 wedges
Wavenumber accuracy: ± 0.2 cm−1 (measured with HF gas cell at an ambient temperature of 25℃ ± 5℃)
Signal-to-noise ratio: 10000 (peak-to-peak noise of a linear corrected baseline)
Number of scans/sec.: 2 – 4 (depends on resolution)
Type of lamp/lifetime lamp (MTBF): Tungsten halogen lamp / 12000 h (2 x 6000 h)
Type of laser: 12 VDC HeNe, wavelength at 632.992 nm
Analog digital converter: 24 bit
Electric power supply: 100 – 230 VAC ± 10%, 50/60 Hz, 350 W
Ethernet connection: 100 Mbit/s
