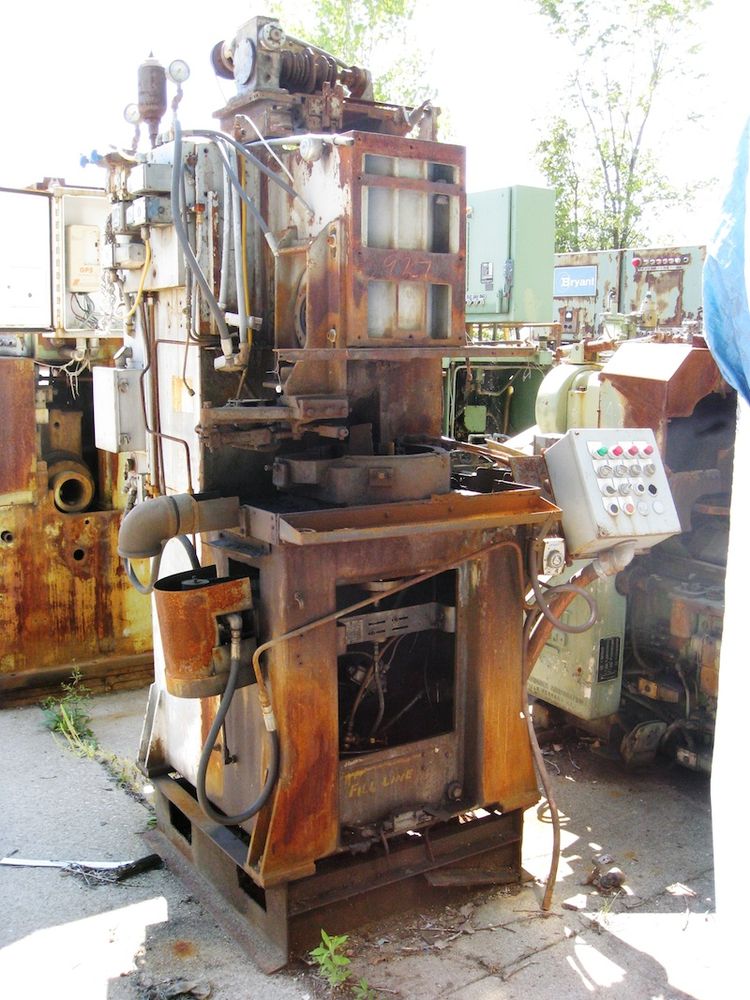

Bryant C

Bryant C


CAM GRINDER
Max. O.D. of work part - power clamping............ 6"
(Larger diameters can be manually clamped)

CHUCKER
Max. swing......................................... 21.5"
Max. grinding stroke (longer stroke attainable, subject to limitations of tooling)........................... 1"
Total wheel slide stroke........................... 8"
Max. cross feed (auto)............................. 040" on dia.
Work head speed, RPM (contour) variable............ 10 to 150
Work head speed, RPM (chucker) variable............ 100 to 450
Grinding strokes/min............................... up to 320
Traverse stroke, ft/min............................ approx. 50
Net weight (approx.) lbs........................... 10,500
Floor space with tank and hydraulic unit........... 62.5" x 105"
Height............................................. 102"
