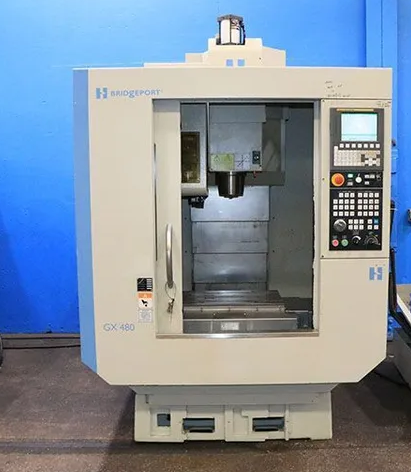

Bridgeport, Hardinge GX480 3 Axis

BRIDGEPORT/HARDINGE GX480
Year: 2010

X AXIS: ................................... 18.90"
Y AXIS: ................................... 15.75"
Z AXIS: ................................... 16.93"
TABLE SURFACE TO SPINDLE .................. 5.9" - 22.8"
MAXIMUM SPINDLE SPEED ..................... 10,000 RPM
SPINDLE TAPER ............................. CAT #40
RAPID RATE (X, Y, Z AXES) ................. 1,417 IPM
FEEDRATE RANGE (X, Y, Z AXES) ............. .1 - 590 IPM
TABLE WORKING SURFACE ..................... 23.6" X 15.8"
TABLE LOAD: ............................... 661 LBS
TOOL CAPACITY ............................. 20 TOOLS
MAX TOOL DIA (FULL DRUM) .................. 3.15"
MAX TOOL DIA (ADJACENT POCKETS EMPTY) ..... 5.9"
MAX TOOL LENGTH ........................... 7.48"
MAX TOOL WEIGHT ........................... 15.7 LBS
APPROXIMATE MACHINE DIMENSIONS ............ 62.01" x 83.35"
82.2"H
APPROX MACHINE WEIGHT ..................... 6204 LBS

- FANUC MODEL: OiMD CNC CONTROL
- HIGH SPEED MACHINING, LOOK AHEAD, FILE SERVER
- ETHERNET
- 20 POSITION SIDE MOUNTED SWING ARM TOOL CHANGER
- THRU SPINDLE COOLANT
- COOLANT SYSTEM
- 10 HORSE POWER SPINDLE MOTOR
