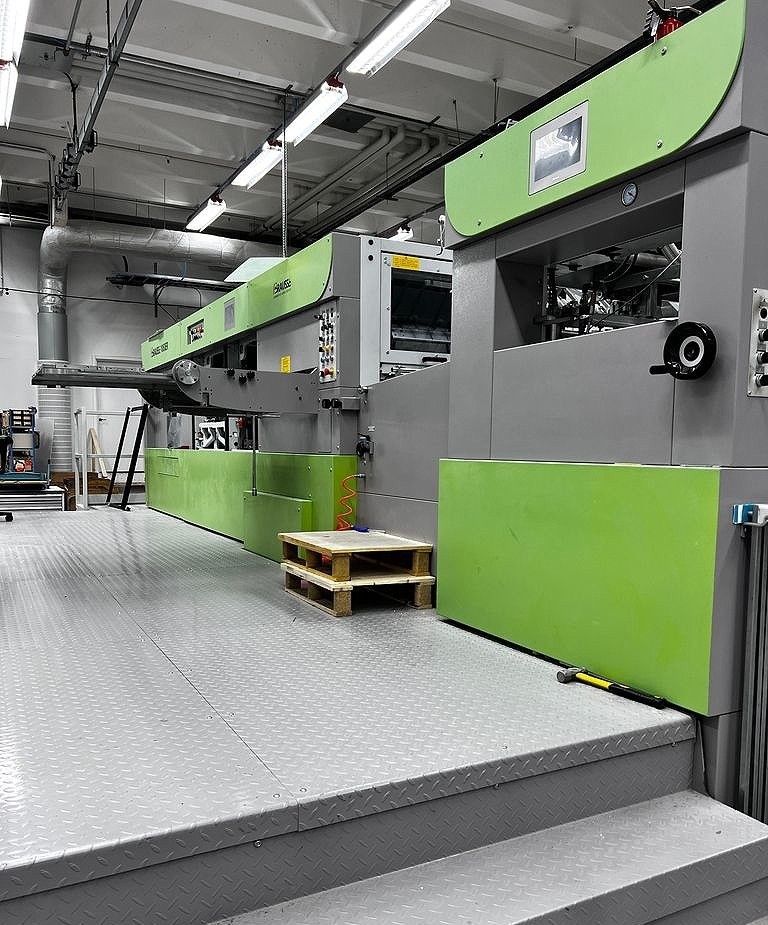

Brausse 1060ER Blanking

Size: 76,0 x 106,0 cm
Impression: ca. 5 mio.
Type: - Automatic punching machine
Format:
- max. with gripper edge: 1060 x 745 mm
- min. 400 x 350 mm
Sheet size:
- Maximum sheet size: 1060 x 760 mm
- Minimum sheet size: 400 x 350 mm
Gripper margin: - 9 to 17 mm
Cutting lines: - Height of the cutting lines: 23.8 mm
Curvature: - Permissible curvature in the carton: 2 % of the sheet width
Convertible:
- Convertible share paper: from 90 g/qm
- Convertible cardboard: up to 2000 g/qm
- Convertible Corrugated board: up to 4 mm
Feeder:
- Automatic non-stop feeder
- Maximum stacking height at the feeder in non-stop mode: 1520 mm
- Maximum stack height at the feeder in normal operation: 1800 mm

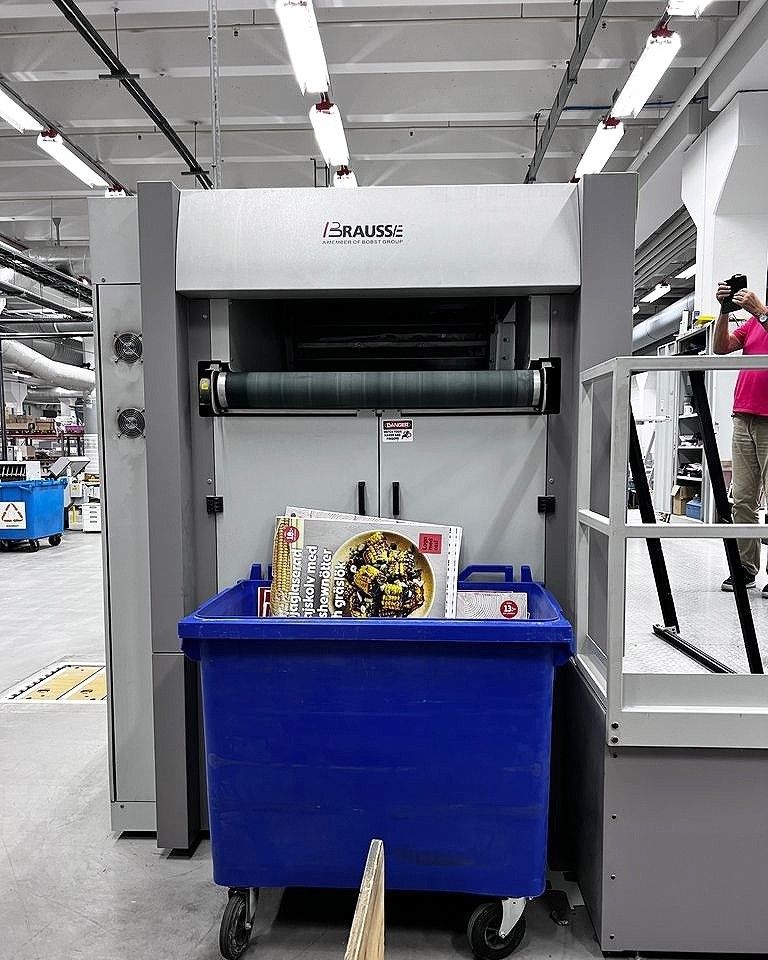

Delivery: - Pile delivery station
Equipment: - Blanking station

Condition: How it stands and goes
Operation hours: 1,300
Speed: - Speed with blanking 7,500 sh./h
Length: 9,425 mm
Width: 4.530
Height: 2,640 mm
Raise machine: Raised machine
Weight: ca. 22,000 kg
Compressed air: Compressed air supply: 6 bar, 600 l/min
Power supply: This machine is connected to 400 V, 50 Hz.
Power input: 26 kW
Important: Connection requirements of any power utility note!
CE mark: The machine bears the CE mark
