Branson

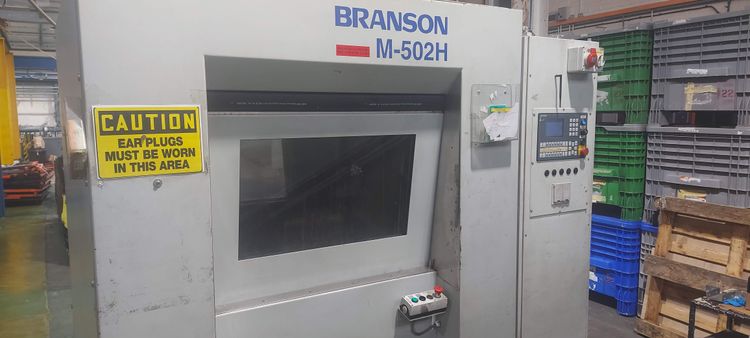

Branson M-502H Plastic Welder

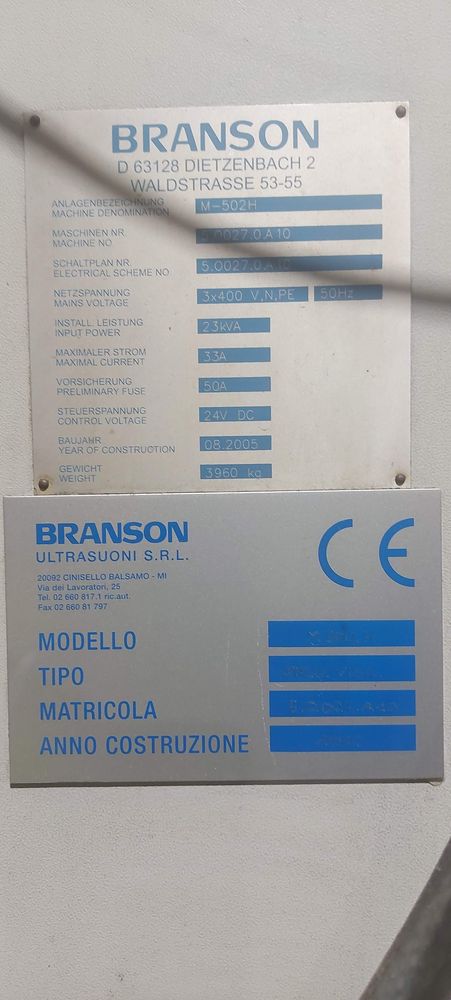

400 Volt x 3 Phase
23kVA input Power @ 33 Amps
Year of Construction: 2005
Weight: 3960KGS
1020 mm x 540 mm hydraulic lift table (40″ x 21.6″)
200 cm2 weld plane
Upper tool weight (15-30 kg)
Vibration Amplitude: 0.9 mm – 1.8 mm
180 – 240Hz vibration frequency
25 kW (33.6 hp)Vectron frequency inverter
front/rear operator access (pass through)
Branson M series two phase digital drive
18 kN clamping force
Weld by distance feature
PLC/VC100 control
7-1/2 x 5-1/2 x 7-1/2 high

This unit has been yearly serviced by Branson Welders
