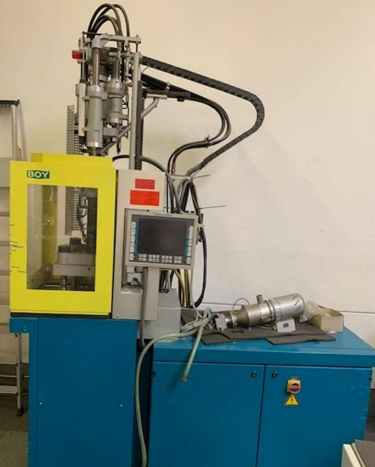

Boy E35 VV 35 T

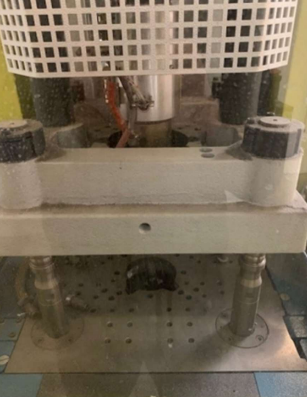

Clamping unit:
- Clamping unit: vertical
- Clamping force: 350 kN
- Opening stroke max.: 300 mm
- Platen distance max.: 500 mm
- Tool installation height min.: 200 mm
- Clear width between the tie bars: 260 x 254 mm
- Ejector stroke max.: 80 mm
- Clamping unit: VV
- Stroke of the protective hood: 500 mm

Injection unit:
- Screw diameter: 28 mm
- Screw L/D ratio: 18.6
- Screw stroke max.: 95 mm
- Injection volume max.: 58.5 cm³
- Injection pressure: 1577 bar
- Plasticizing flow: 8.6 g/s
- Injection flow: 85.5 g/s
- Connected load: 3x 400 V, 50 Hz
- Heating power max.: 5.8 kW
- Drive power: 7.4 kW
- Total power: 13.2 kW
- Hydraulics: 210 bar (tank 65 liters)
- Operating hours approx.: 2,659 hours

Dimensions L/W/H approx.: 2,047 x 803 x 2,710 mm
Installation area: 1.7 m²
Weight approx.: 1,670 kg
Last maintenance: 01.2021

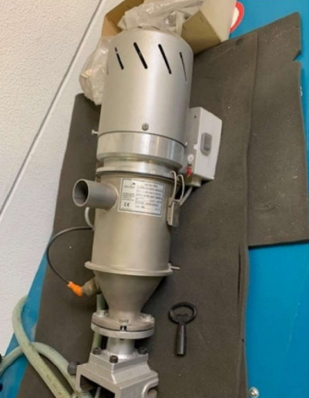

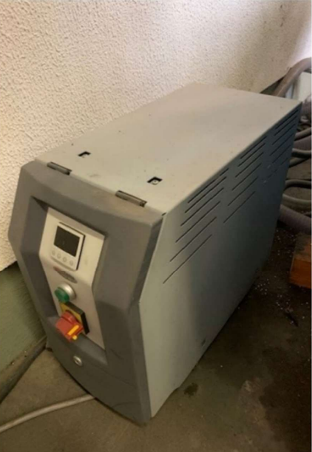

Incl. granulate conveyor and temperature control unit.
