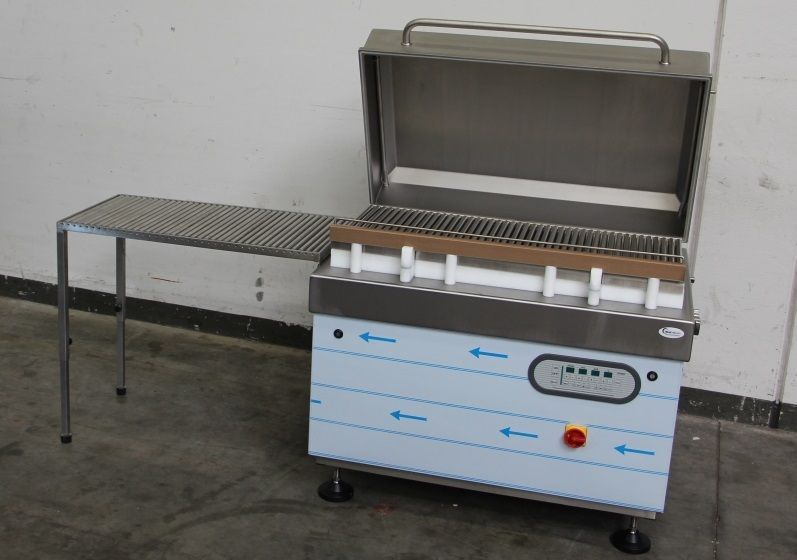

Boss Titan 1100 SM Vacuum Packaging Machine

- Single Chamber Stand Machine stainless steel execution
- plain contour-plate, volume completely in the lid
- usable chamber internal dimensions: approx. 1,150 x 570 x 210 mm
(Width x Depth x Height)
- 1 sealing bar front, length approx. 1,080 mm
with separately adjustable trim-sealing
- 2 plastic insert plates, height: 1x 20 mm, 1x 40 mm
- built-in Busch vacuum pump, type: RA 0160 D5H1, capacity: 160 m³/h
- water separator and dust filter ahead of the pump
- roller conveyor in the machine, height approx. 30 mm,
stainless steel execution
- roller conveyor on the left side of the machine, length approx. 1,000 mm,
stainless steel execution
- soft-air

Control Z 3000 - Special execution
- Option 1:
continuous run with time control (time adjustable 1 - 99 min.)
- Option 2:
pressure difference control
continous vacuum control between adjusted upper and lower set vacuum
reference (time adjustable 1 - 99 min.)
- automatic lid opening and aeration after each cycle
- machine on height rubber feets, height adjustable +/- 70 mm
- machine dimensions: approx. 2,250 x 970 x 1,100 mm
(Length incl. discharge roller conveyor x Width x Height)
- electric: 3 Phases, 230/400 Volt, 50 Hz, CEE-plug, 9.0 A, 4.8 KW
- weight: approx. 520 kg
