Bosch RRU3082 + HQL 3420 + ALF 4080

Complete Lines

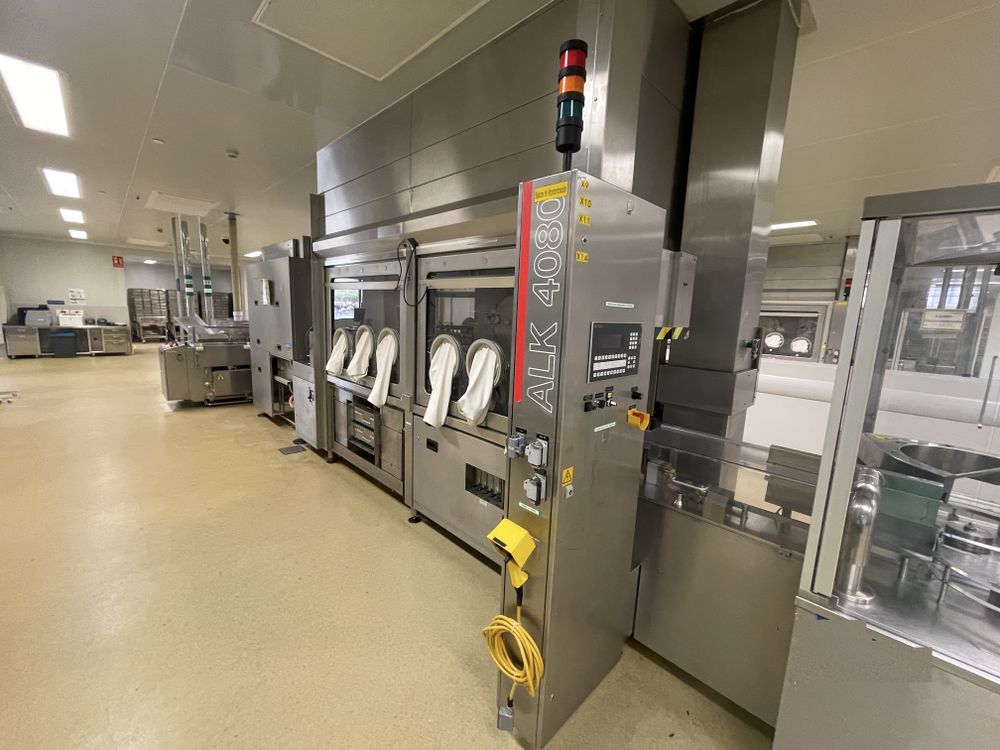

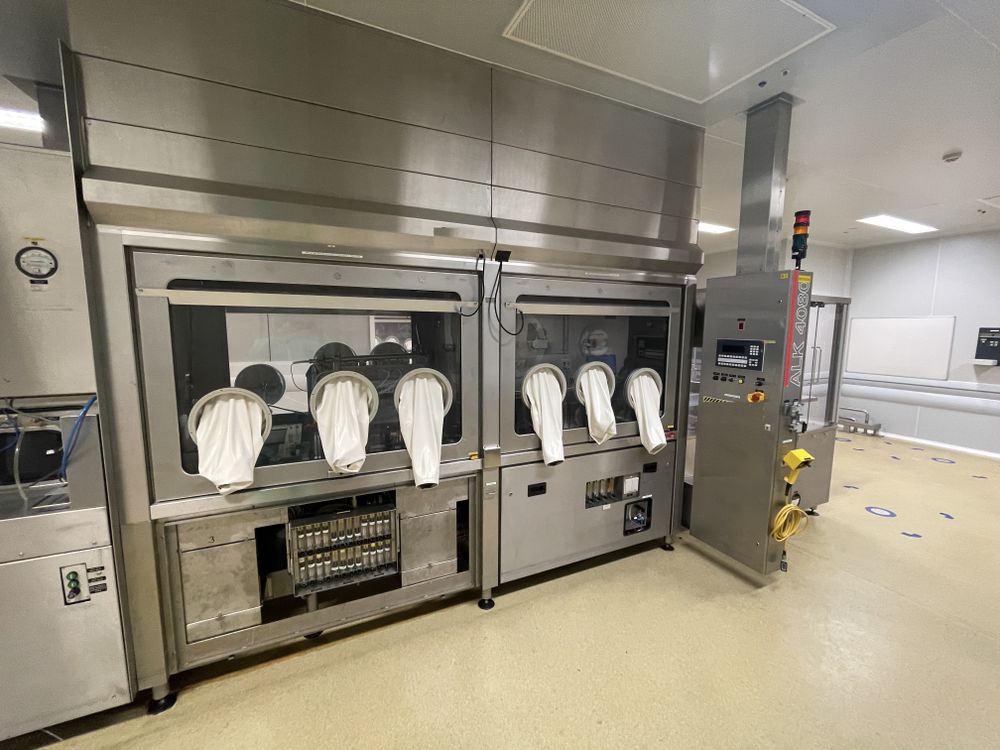

1)Ampoule filler under isolator
Producer : Bosch
Model : ALK 4080
Year of manufacture : 1997
Production : 400 ampoules per minute working range
Diameter : From 9 up to 18 mm
Height : From 60 up to 110 mm
Formats incluided : 1 - 2 -5 - 10 ml ( to be confirmed )

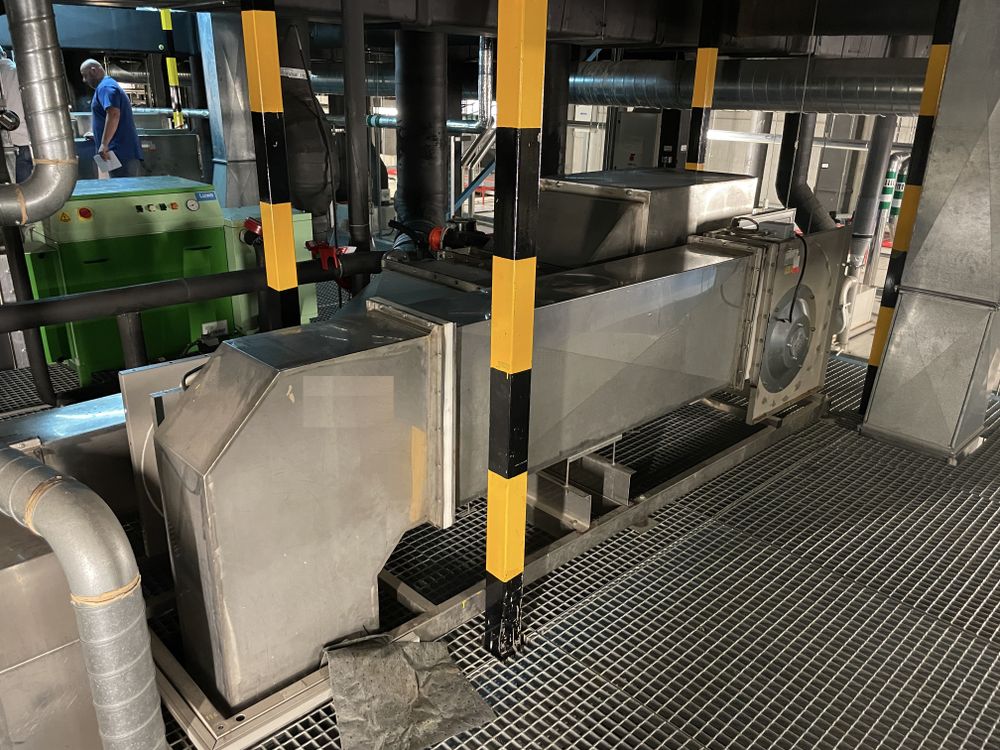

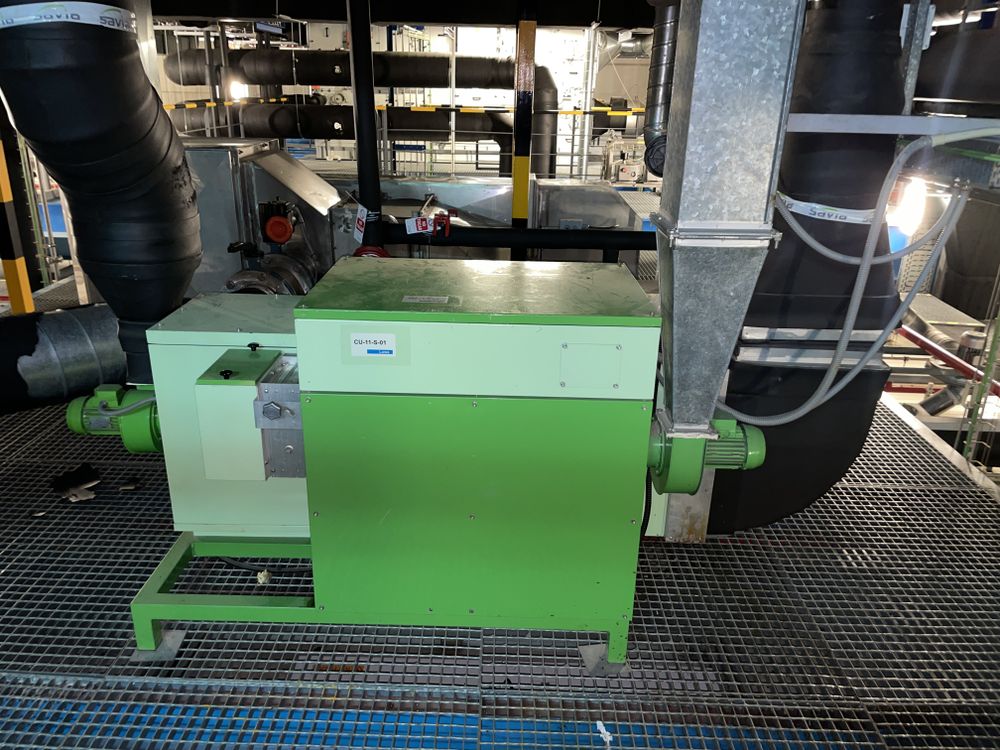

The machine comes with ISOLATOR and DEDICATE AHU

2) Depyrogenation owen for ampoules Bosch Producer : Bosch Model : HQL 3420
Year : 1997
Production : 24.000 ampoules of 1 ml per hour
HQL facilities are ideal for vial sterilization.
This model is exceptional due to the lack of passage in the tunnel,
which is the result of the laminar hot air flow process
with its high degree of efficiency.
Sterilization tunnels are used in pharmaceutical industry filling lines
to sterilize glass containers before aseptically filling them.
These tunnels use forced air at temperatures up to 350 ° C.
Bosch HQL drying and sterilization tunnels operate with unidirectional flow, with process curves of temperature progression
and significantly reduced sterilization times.
They guarantee the consistent precision necessary for validation,
qualification, and reliable production capacity.
Through a filter, the make-up air is introduced into the tunnel.
Inside the tunnel, the air, drawn in by the fans, feeds the supply
and cooling section through the pre-filters
and the air particle filters in the separate areas of the tunnel.
Using the laminar flow principle,
the air flow is directed vertically in the containers.
Below the conveyor, the air is directed back through a recirculation duct to the fan.
The fans need fresh air for the heating section: laminar flow unit.
The heating elements in the recirculation duct serve to heat
the recirculation air to the preset temperature.
Below the particulate air filters are heating elements
that are output to a recording and temperature control device.
The cooling section works with laminar flow.
A fan in the cooling section draws the hot air under the conveyor belt.
The volume of exhaust air is adjusted automatically.
The tunnel is equipped with an automatic overpressure control in the cooling section.
Modular system for tunnel assembly suitable for the required
power range with optimal energy consumption.
Construction according to GMP.
Compatible container transport systems for stable
and non-stable containers. Safe conveyor belts on the floor
and side levels operated simultaneously.
Excellent accessibility and ease of operation.

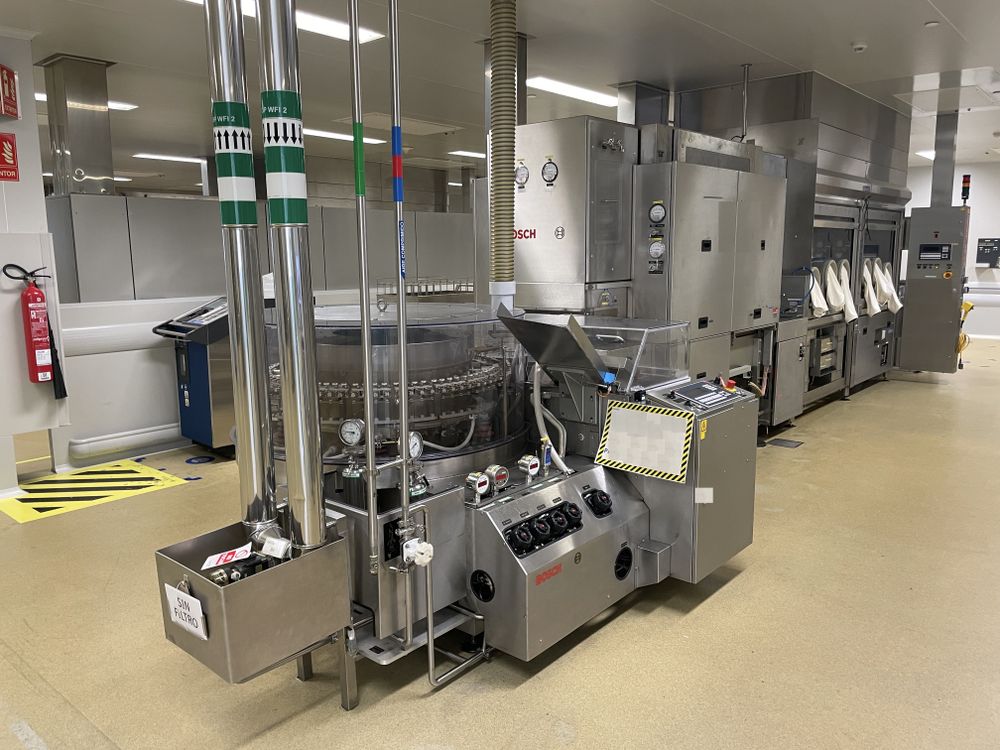

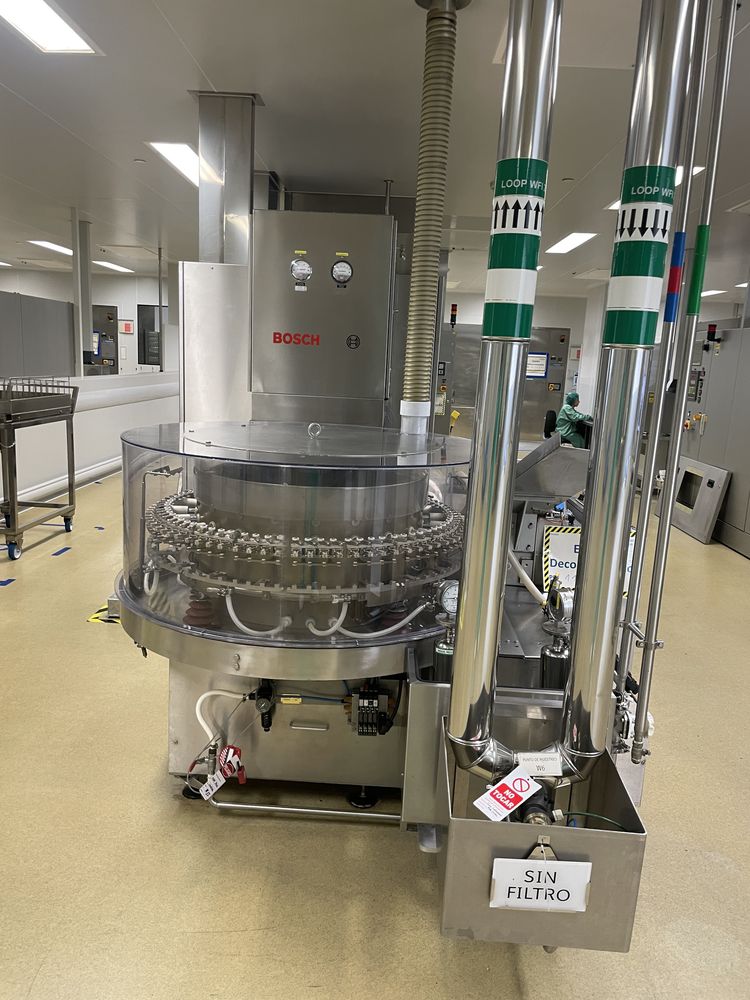

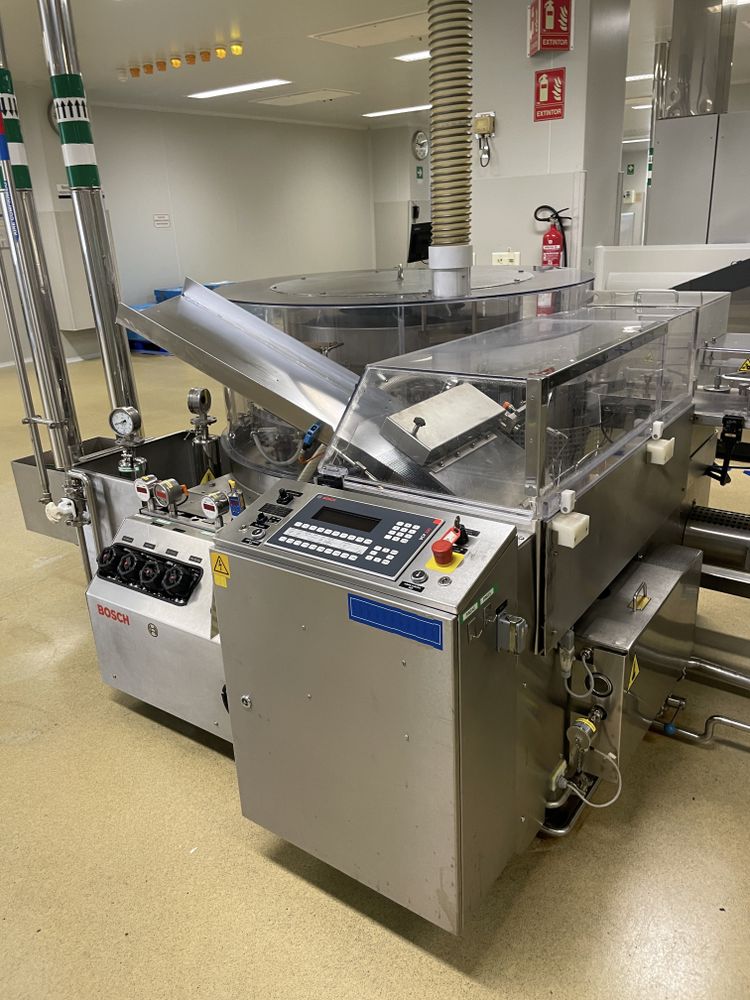

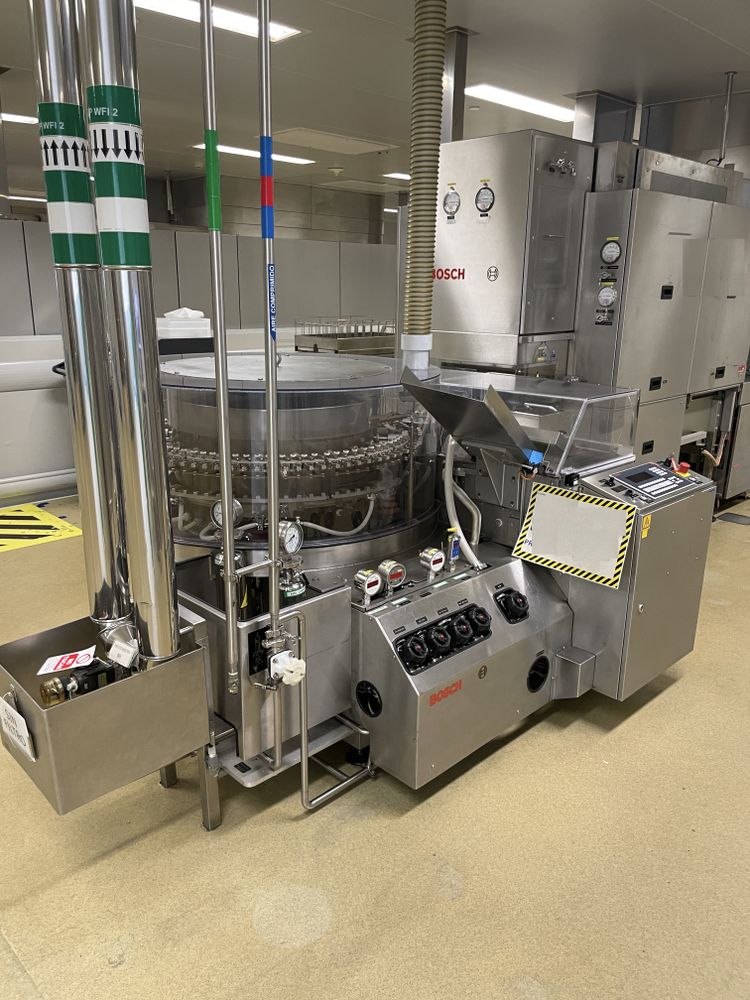

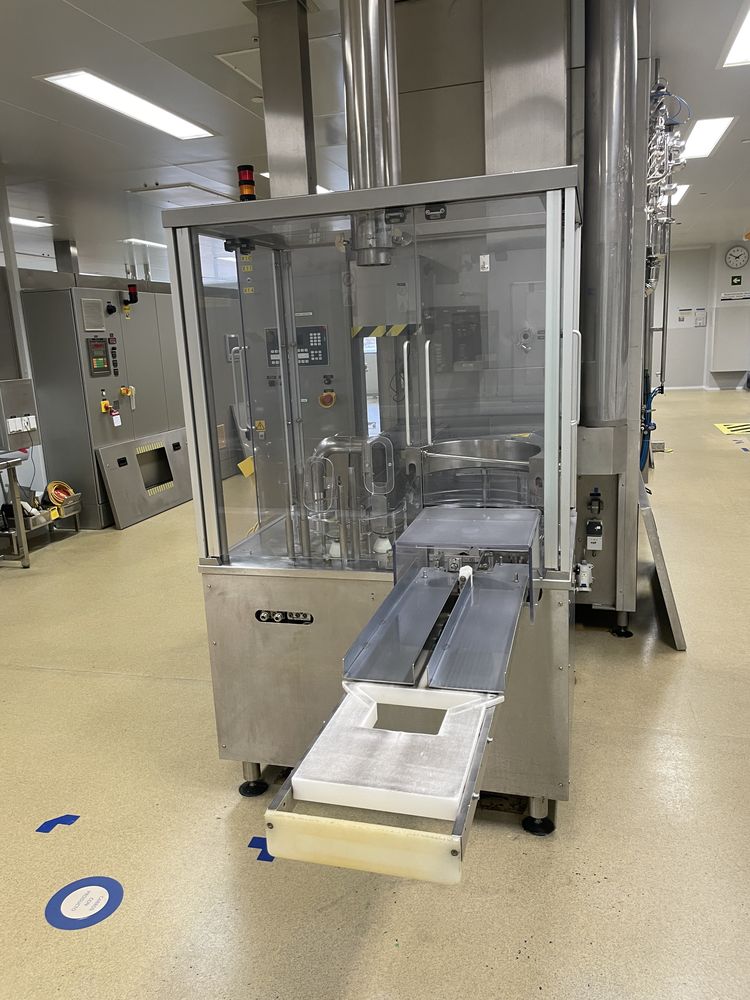

Ampoule washing machine with different washing cicles
(water WFI - sterile air )
Producer : Bosch
Model :RRU 3082
Year of manufacturing :1997
Production : 400 ampoules per minute
Working range : Diameter : 9 - 18 mm
Height : 60 - 110 mm
Formats included : 1 -2 - 5 - 10 ml ( to be verified )
The Bosch RRU series of washers and dryers perform ultrasonic cleaning for fast and accurate removal of particulate matter.
Its swivel design allows for a small footprint
and ease of operation with fast and accurate removal of particulate
matter and reliable feeding of small containers.
RRU Bosch rotary heads will give you excellent results with gentle vial handling.
They can be configured for a wide range of formats.
Rotary washer ideal for cleaning vial bottles.
Exceptional for its optimal accessibility, for example,
and it is very easy to use.
Processing ranges and capacities depend on individual containers,
line integration, etc.
Construction according to GMP; reduced size;
safe transport of containers; high level of ultrasonic cleaning;
stations for internal and external container washing;
with the pumping station; fast format change.

COLOR RING PRINTER BOSCH DRN 3010
This high-speed machine is design to mark ampoules
with single or multiple ring codes.
It is useful for identifying trial batches or for adding colour codes
to standard batches of Ampoules for identification purposes
or to avoid intermixing of batches.
• Included format sets 1 ml - 2 ml - 5 ml- 10 ml To be verified
