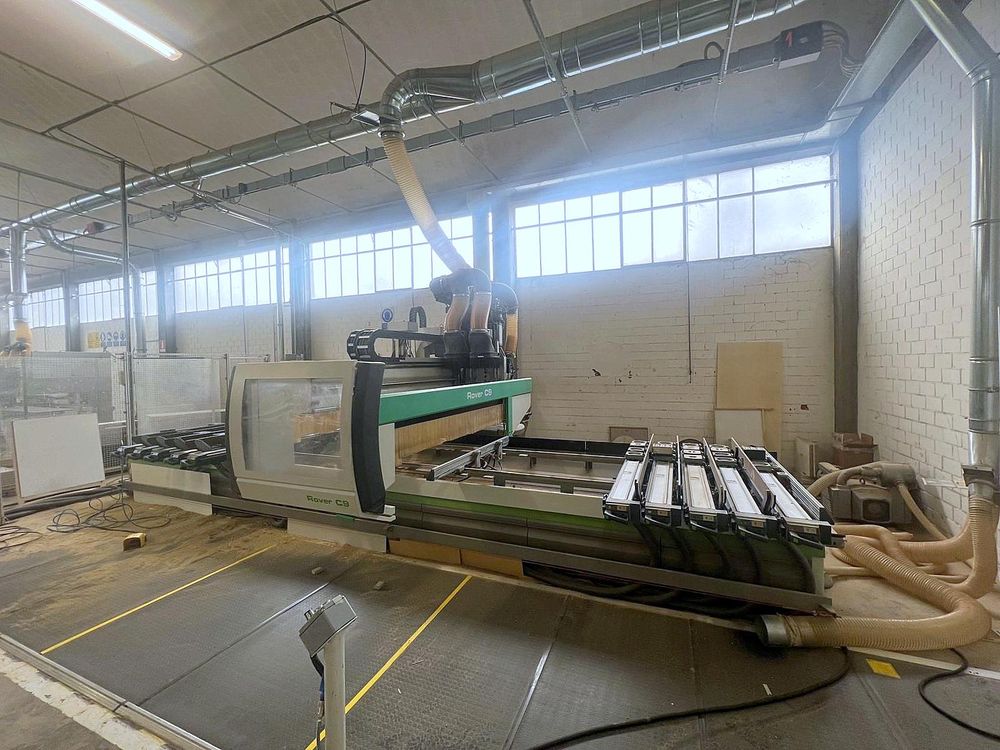

Biesse ROVER C 9.65 EDGE

CONTROL SYSTEM :
• PC-based numerical control
• Advanced BiesseWorks software (office version and machine version)

TECHNICAL CHARACTERISTICS :
• Useful working area (x – y – z): 6,200 x 1,935 x 225 mm
• Useful working area for edgebanding (x – y): 5,330 x 1,972 mm
PANEL SUPPORT AREA :
• No. 4 independent working areas in X and multi-zone 10 shelves and 40 trolleys
• No. 10 EPS worktops for panel support with automatic positioning – no. 40 trolleys
• No. 8 Bar lifts with pneumatic positioning
• No. 1 Vacuum pump 250 m³/h

DRILLING/CUTTING GROUP :
• No. 1 BH 33 L drilling head with quick couplings
MILLING GROUP :
• No. 1 Electrospindle 12 kW (16.1 HP), HSK F-63 connection air-cooled complete with 360° geared operating group device
• No. 1 Electrospindle 12 kW (16.1 HP), HSK F-63 connection air-cooled complete with 360° geared operating group device
• No. 1 Chain tool change magazine with no. 22 positions – 180 mm interaxis
EDGE BANDING GROUP :
• No. 1 Edge banding group complete with:
– pre-melting unit and glue tank for EVA glue
– 1 roll holder magazine with no. 4 positions
– 2 trimming units
– 2 combined edge scraper/glue scraper units
– 1 rounding tool
– 1 blower unit for cleaning the panel

PROVISIONS AND ACCESSORIES :
• Automatic lubrication system
• Chip and waste transport belt

SAFETY REGULATIONS AND OPTIONS :
• Copy of the original CE Declaration of Conformity
• Front electronic safety mats
• Lateral safety grids
