Benhil 8362/100

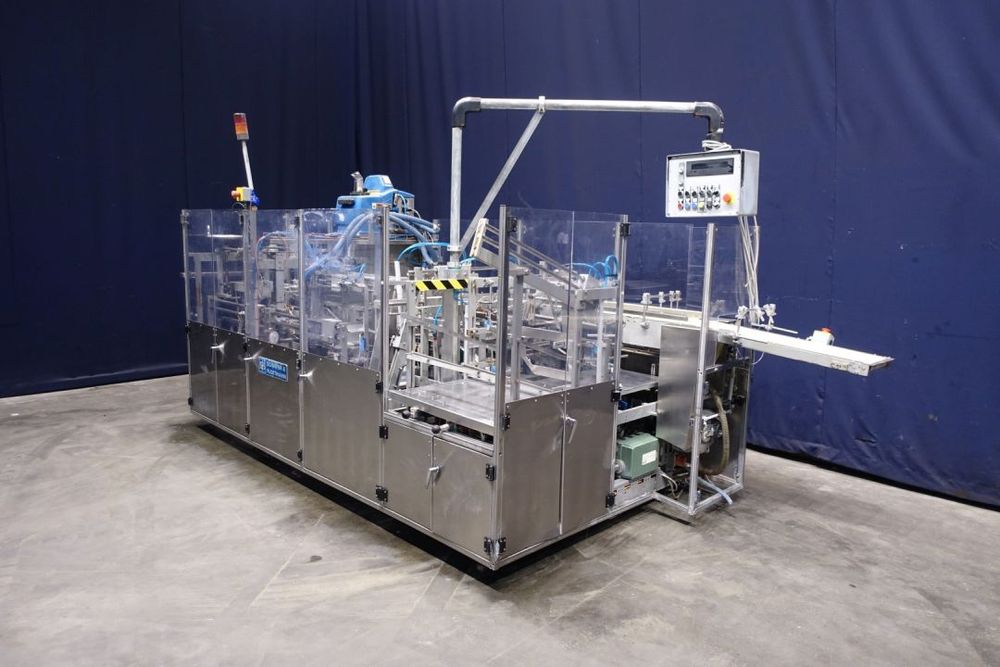

Benhil 8362/100 & Schäfer & Flottmann 276 Automatic packer

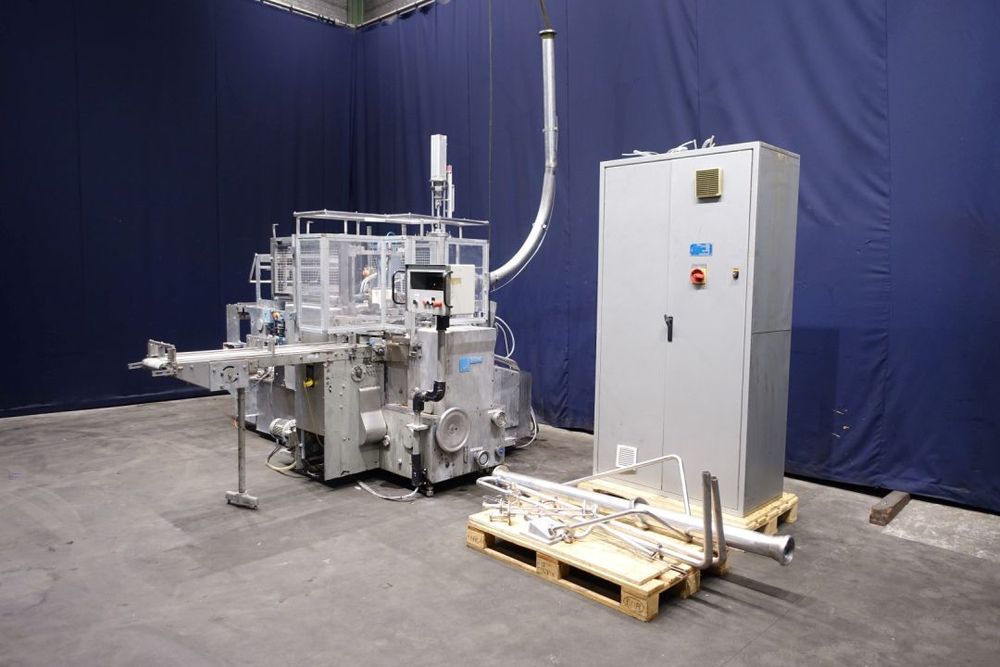

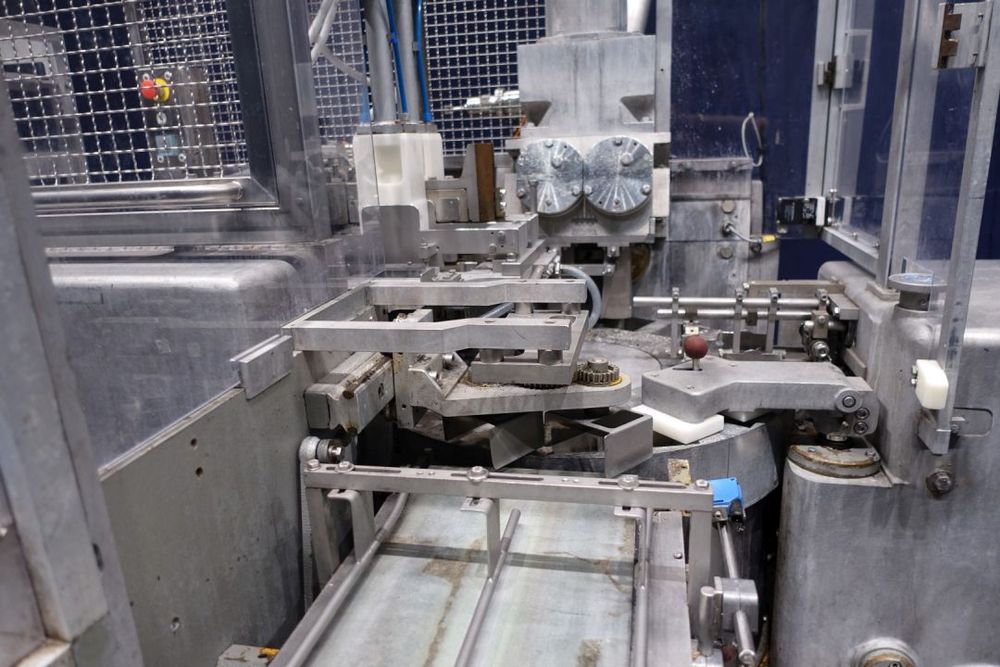

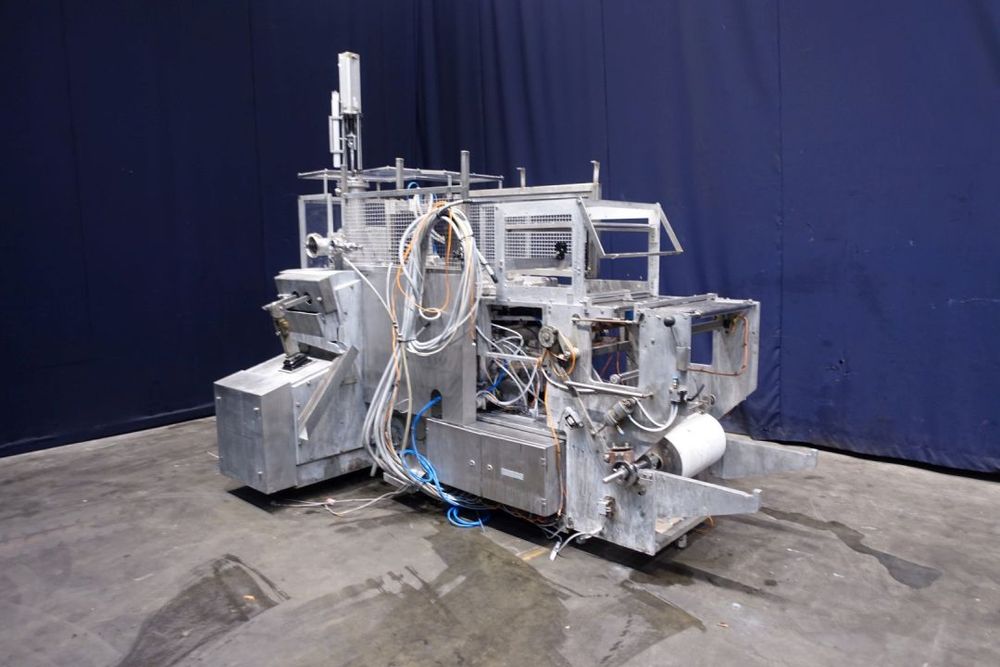

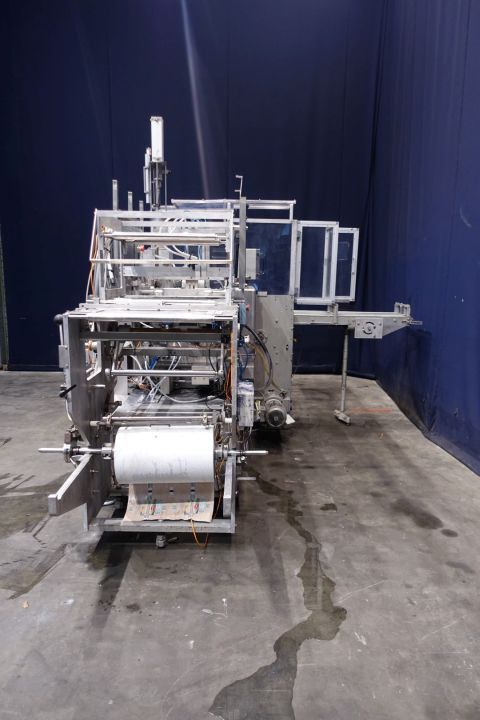

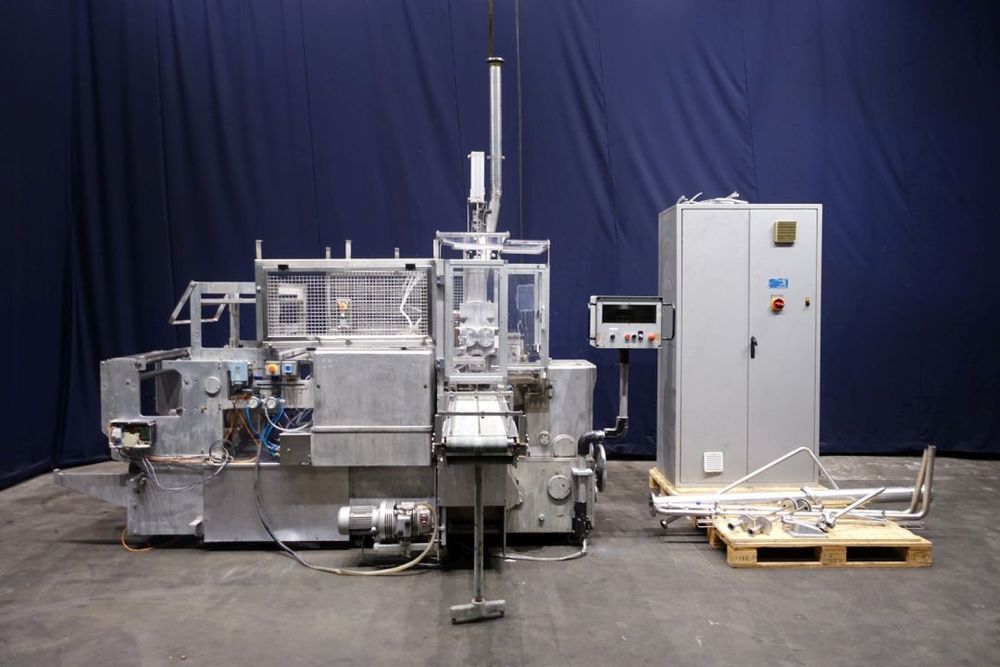

Full Automatic two head filling and wrapping machine
for Butter in aluminum foil or parchment paper.
Product feed by direct link up with compensator
and liniair potentio meter to control feed pump.
Photo cell for print centring device
(paper correction by spot mark).
Servo drive on paperfeed, infeed pipe with extended 90°
Bend 100mm diameter, over pressure valve,

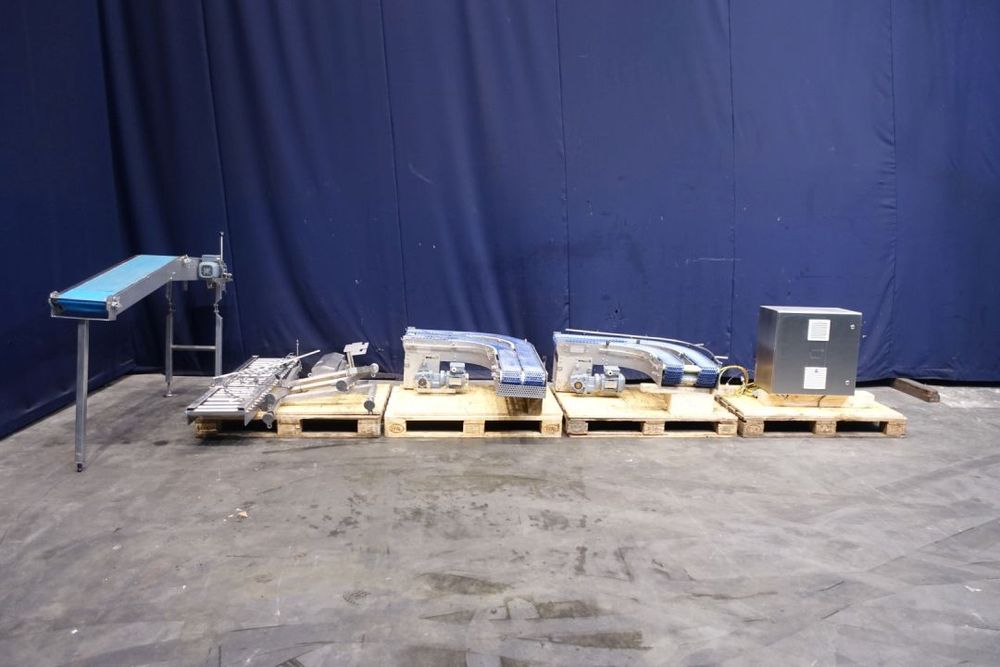

2-Lane outfeed conveyor of 150 cm long,
each lane 10 cm width. and 2 90°C conveyors.
Format sets on this machine: 250 gram, 100 x 75 x 35 mm.

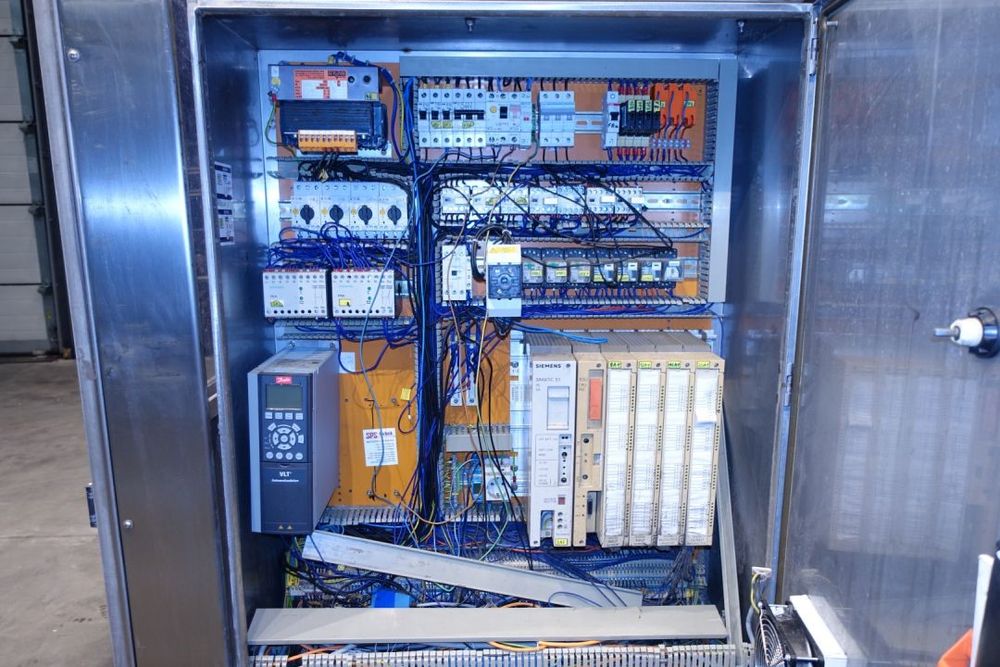

Control panel PLC control Siemens S5,
including operating screen.
Documentation available: operational manual,
electrical diagram, spare parts list and program printout.
Total dimensions 400 x 350 x 360 cm.

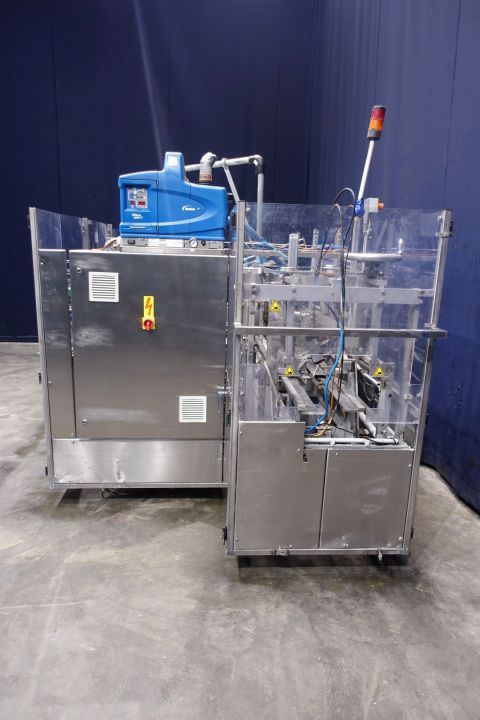

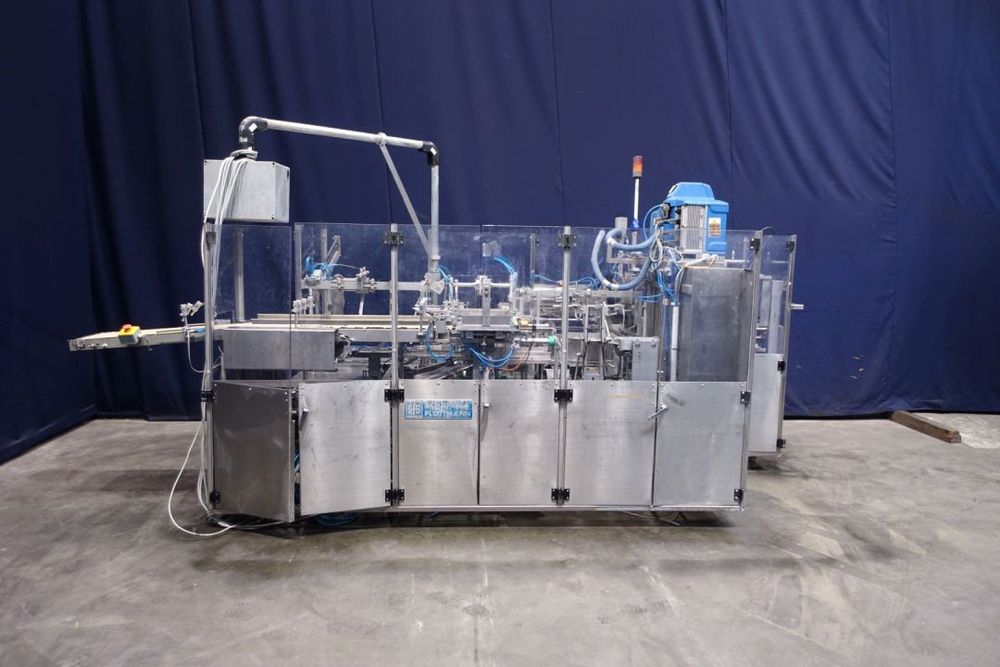

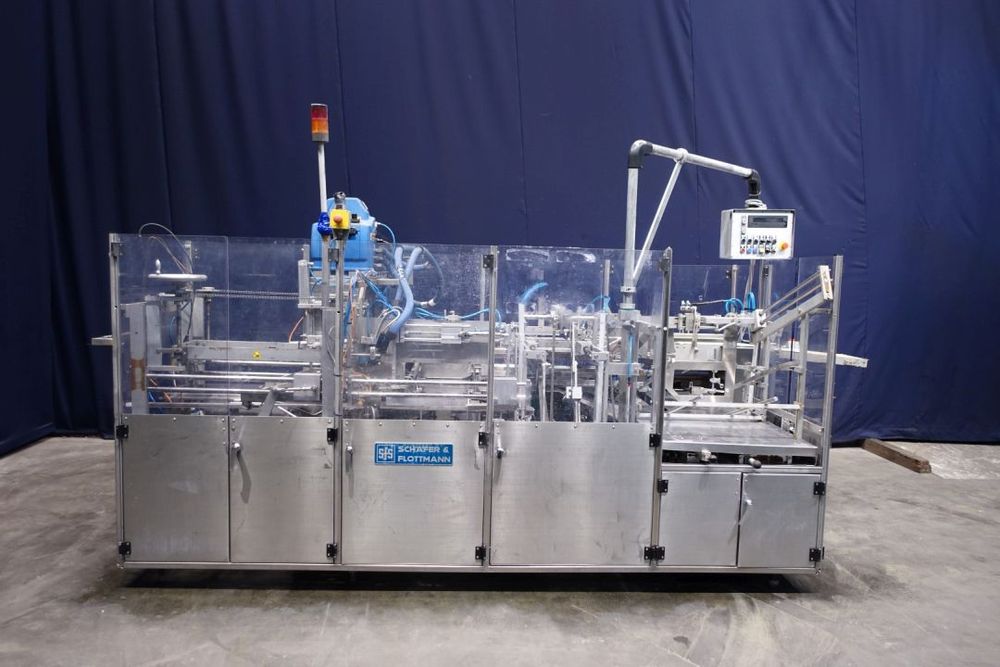

Fully automatic packer, to pack butter packs in an
Carton type: American folding box.
Operates fully automatically and all principal movements are mechanically driven.
Used for 250gr bricks of foil 100 x 75 x 35 mm packed / and wrapped.
Maximum box dimensions 330 x 220 x 230 cm.
Current dimensions of the box/plano: 300 x 200 mm.
Layout of the box 4x2x2 layers =
16 packs of 250 gram per carton = 4kg / carton.
Capacity = max. 15 cartons per min. =
max. 240 packages per min.
Equipped with 3 Glue points.
Controls Siemens S5 PLC. Has been running together
with Benhil 8362 foil packing and wrapping machine.
Total machine dimensions: 415 x 160 x 200 cm.
Excluded hot melt unit, 3 hoses.

Capacity 12.000 packets
Condition 400 x 350 x 360 cm.

Manufacturer Schäfer & Flottmann
Type 276
Capacity 900 boxes per hour
Year of construction 1994
Condition 415 x 160 x 200 cm
