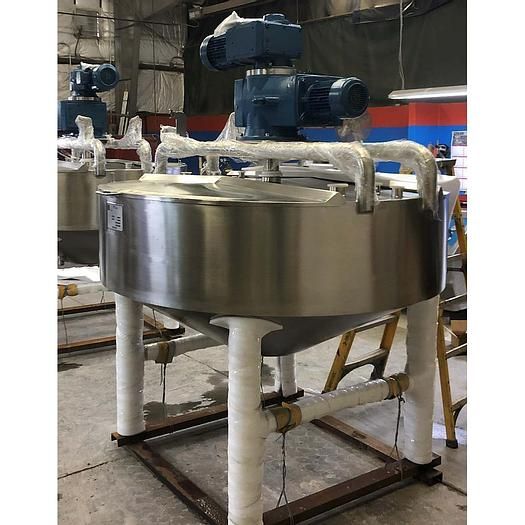

BCast 200 Gallon Kettle

200 Gallon 365 Gallon Capacity) Jacketed
Cook and Cool Tank in accordance with the
following specifications:
with 120° included angle
hinged covers with handles and latch, mounted
from the center bridge
be insulated with chloride free mineral fiber
insulation.
with 120° included angle
feet, T-304 s/s. Leg will mount to inner cone bottom
and extend through outer bottom skin.
floor. less valve height Valve will be supplied by
Bcast.
flush mount
sidewall height x 84” approx. overall height
head will be supplied with 2 mm gauge, T-304 s/s
dimpled heat transfer surface with (1) 2” inlet and
(1) 2” outlet threaded pipe nipple connection and
supplied with directional baffling. Connections
-code stamped heat transfer jacket for use at 75 PSI.
of agitator
counter-rotating agitator with bottom scrape driven
by 5 HP right angle helical bevel gear motor
operating at 23 RPM. Motor will be 230-460/3/60
washdown (less starter) inverter duty. Scraper
blades will be included.

Inner shell 4mm, T-316 stainless steel
Inner bottom 4 mm, T-316 s/s, conical
Top covers 3mm gauge, T-316 s/s, two-piece
Insulation Full sidewall and bottom head will
Outer shell 3 mm gauge, T-304 s/s
Outer bottom 3 mm gauge, T-304 s/s, Conical
Supports (4) 4” pipe legs with adjustable ball
Outlet Flange for flush mount valve 3" , 21"to
Thermowell (1) Pyromation tank adapter
Dimensions 72” ID x 74” OD x 16” straight
Heat transfer surface The full bottom
Bridge T-316L s/s center bridge for supporting
Baffle (1) internal adjustable baffle, T-316L s/s.
Agitator Top entry dual motion
Tank rating Tank is designed for 75 psi @
Material finish All interior surfaces will be
Weld finish All interior and exterior welds will
