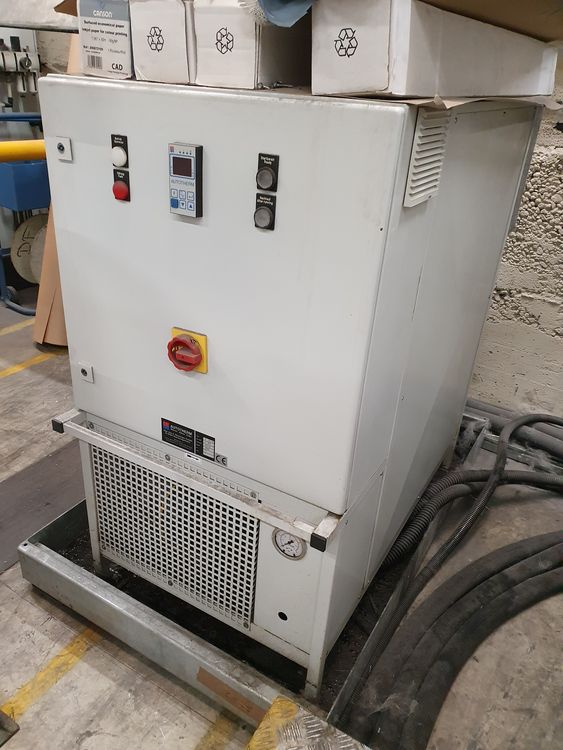

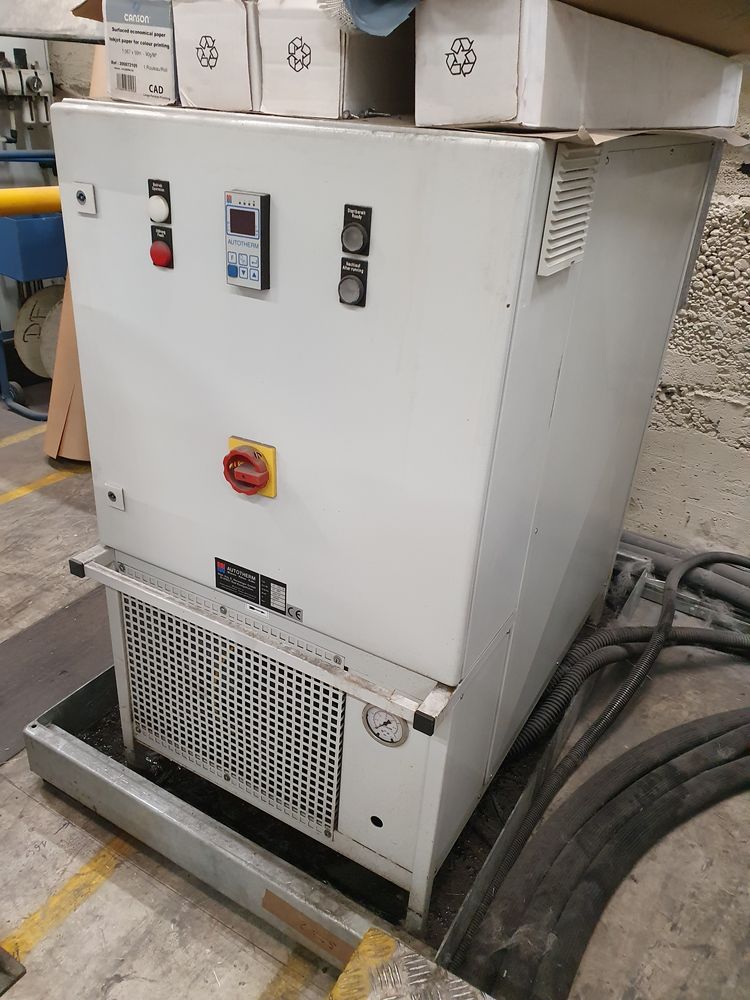

Authoterm AT 250-36
EUROPE (Western and Northern)
brand Authoterm
max T°: 230°C
electric boiler
heat output 36 kW
cooling capacity at a cooling water temperature of 15C and a flow rate of 4 l/min
Fluid temperature 50C: 1.7 KW
Fluid temperature 90C: 5.2 KW
Fluid temperature 140C: 9.9 KW
Fluid temperature 200C: 16.3 KW
Rated voltage: 3/PE AC 50Hz 400V (DIN IEC 38)
Rated power: 39KW
Rated current: 57A
Power cable protection: max C 63 A
Dimension
Width 600mm
Depth 1000 (1060) mm
Height 1100mm
Weight 250 Kg
Inflow and outflow R 1 1/4" IG
Water supply and discharge R 3/8" IG
Heat transfer agent heat transfer oil
Filling and compensation tank 30l
Maximum total filling quantity 80l
user (at 20 C) 53l
Temperature range +250 C
TP pump. 3
Maximum discharge pressure 4 bar
Maximum discharge flow 16 m3/h
Connection diagram number 5.360.03 from 02.05.06
Fluid diagram number 4-12 22 31 10 dated 03.07.97
