American HOLEWIZARD 1500 RPM
AMERICA North (USA-Canada-Mexico)

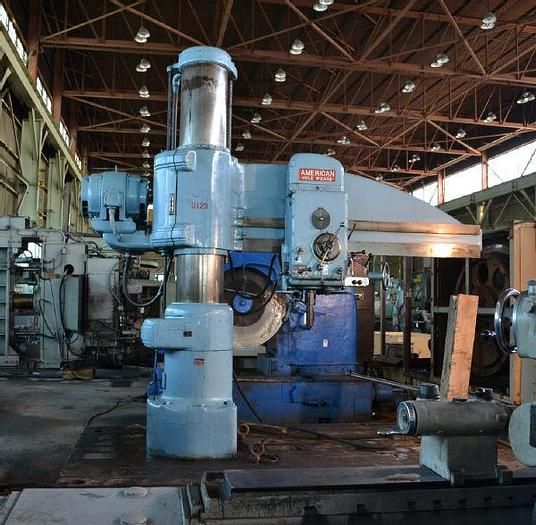

7'17" AMERICAN "HOLEWIZARD" RADIAL DRILL
NEW 1955
EQUIPPED WITH:
TAPPING CAPABILITIES
POWER ARM ELEVATION
POWER CLAMPING TO COLUMN & HEAD
POWER RAPID TRAVERSE TO HEAD
12" RISER BLOCK (REMOVEABLE)
90" X 156" T-SLOTTED FLOOR PLATE (USED AS BASE)
Arm length 7'
Column diameter 17"
Horizontal head travel on arm 70"
Vertical arm travel on column 43.5"
Vertical spindle travel in head 18"
Spindle-nose to base, minimum 10.5"
Spindle-nose to base, maximum 72"
Spindle nose diameter 3.25"
Spindle taper #5
(32) spindle speeds, range 15 TO 1500 RPM
(16) spindle feeds, range .003 TO .125 IPR
(4) tapping leads, range 8 TO 18 TPI
Main motor, horsepower 25 HP/1770 RPM
Electrical system 220-440/3/60
Weight, approximately 24000 LBS
