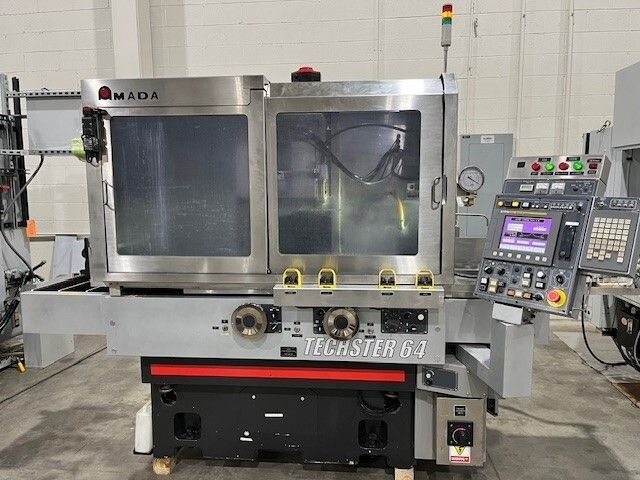

Amada Techster 64

Amada Techster 64
New – 2015

SPECIFICATIONS:
Capacity:
– Table Working Surface…………26.5″L x 15.7″W
– Longitudinal Travel – Maximum…………30.7″
– Cross Travel – Maximum…………17.7″
– Distance from Table Top to Wheel Center…………19.68″
– Working Surface Height from Floor…………35.4″
– Standard Chuck Size…………23.6″ L x 15.7″ W x 3.9″ H
– Allowable Work Weight (Chuck Included)…………771.6 Lbs.
LEFT/RIGHT:
– Manual – Handle Feed (Normal)…………3.9″ per revolution (0.04″ per graduation)
– Manual – Handle Feed (Inching)…………0.197″ per revolution (0.00197″ per graduation)
– Manual – Jog Feed Speed…………32.8 fpm (3.28 fpm for inching)
– Manual – Drive System…………Ball Screw, Jog Lever, Manual Pulse Handle
– Auto – Feed Speed (Normal)…………3.28 – 98.4 fpm
– Auto – Feed Speed (Creep)…………0.4 – 7.87 ipm Low speed (393.7 ipm for High speed)
– Setting Increment – Minimum…………0.000004″
– Guide Surface…………VV Turcite
FORWARD/BACKWARD:
– Manual – Handle Feed (Magnification OFF, x1, x10, x100, x400, Automatic)…………0.0004″, 0.004″, 0.04″, 0.15″ per revolution (0.000004″, 0.00004″, 0.0004″, 0.0015″ per graduation)
– Manual – Jog Feed Speed…………0-15.7, 19.6, 39.3, 78.7, 118.1 ipm
– Manual – Drive System…………Ball Screw, Manual Pulse Handle
– Auto – Feed Speed (Fast)…………196.8 ipm
– Auto – Feed Speed (Grinding)…………0.004″ – 196.8 ipm
– Setting Increment – Minimum…………0.000004″
– Guide Surface…………Linear Ball Guide
UPWARD/DOWNWARD:
– Manual – Handle Feed (Magnification OFF, x0.1, x1, x10, x40, Automatic)…………0.0004″, 0.004″, 0.04″, 0.15″ per revolution (0.000004″, 0.00004″, 0.0004″, 0.004″ per graduation)
– Manual – Jog Feed Speed…………3.93, 7.87 ipm
– Manual – Drive System…………Ball Screw, Jog Lever, Manual Pulse Handle
– Auto – Feed Speed (Fast)…………78.7 ipm
– Auto – Feed Speed (Grinding)…………0.004″ – 19.6 ipm
– Setting Increment – Minimum…………0.000004″
– Guide Surface…………Linear Ball Guide
Wheel:
– Size (OD x Width x ID)…………Ø13.97″ x 1.49-1.96″ x Ø5″
– Spindle Speed…………1500/1800 RPM (50/60Hz)
– Wheel Speed – Maximum…………9800 fpm
Motors:
– Wheel Spindle…………5 HP
– Forward/Backward…………1.6 HP
– Upward/Downward…………2.4 HP
– Left/Right…………2.4 HP
Lubrication Oil Capacity…………3.9 gal.
Electrics…………200-220V/3Ph
Machine Dimensions – Approximate…………88″ L x 94″ W x 81″ H
Machine Weight – Approximate…………8800 Lbs

EQUIPPED WITH:
Fanuc Series 32i-Model B CNC Controller (with Teaching Cycle)
23.6″ x 15.7″ Electromagnetic Chuck w/Neutrifier
Rotary Wheel Dresser
Chip Blaster H30 High Pressure Coolant System w/Filtration and Mist Collector
Prab Coolant System w/Paper Media Filtration
Daikin Inverter Oil Cooling Unit
(2) Pneumatic Clamping Fixtures
Banner Dual Hand Activation for Fixture & Door
