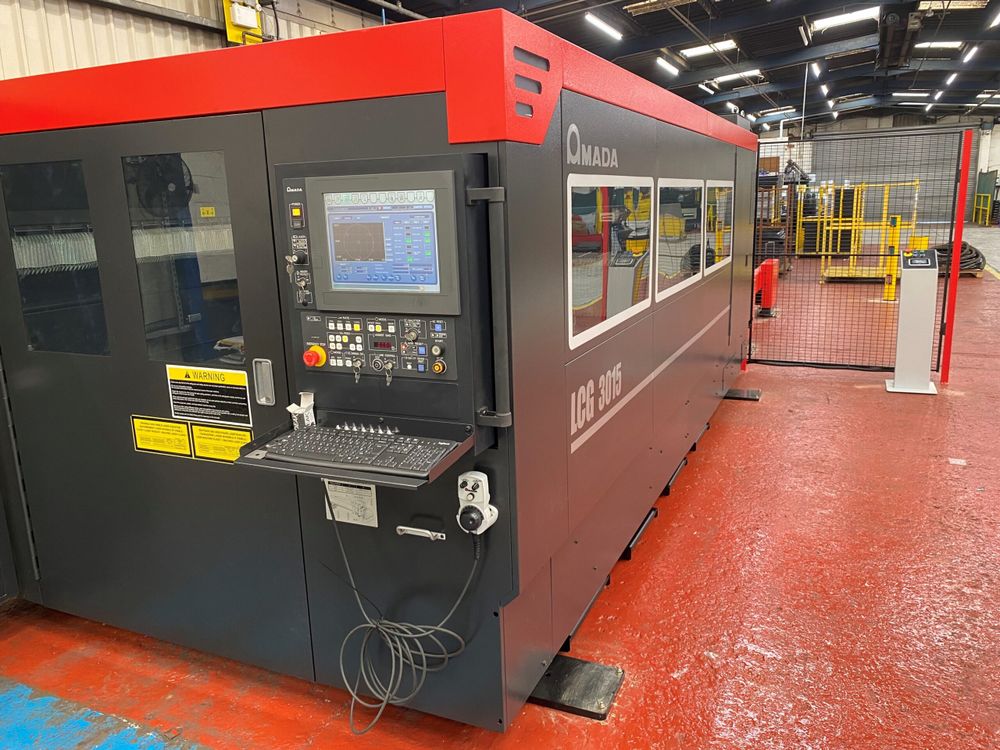

Amada LCG3015 CNC Control

Amada LCG3015 3.5kw Laser with LST3015 Shuttle Table
LOW CUTTING HOURS - 3,558
Year 2014

Controlled Axis X, Y, Z axes (three axes controlled simultaneously ) + B axis
Axis Traverse Distance 3070 x 1550 x100mm (Z Axis)
Max. Guaranteed
Material Thickness 20mm Mild Steel
10mm Stainless
8mm Aluminium (A5052)

Max. Processing Dimensions 3070mm x 1550mm
Maximum Simultaneous feed rate X/Y, 170m/min
Positioning Accuracy +/- 0.01mm
Maximum material mass 920 Kg
Rated Output 3500W

Processing Surface height 840 mm
Oscillator AF 4000i - C
Machine Length (including shuttle table 9997mm

Machine Width 2840mm
Machine Height 2166mm
Machine Weight 8,200 kg
