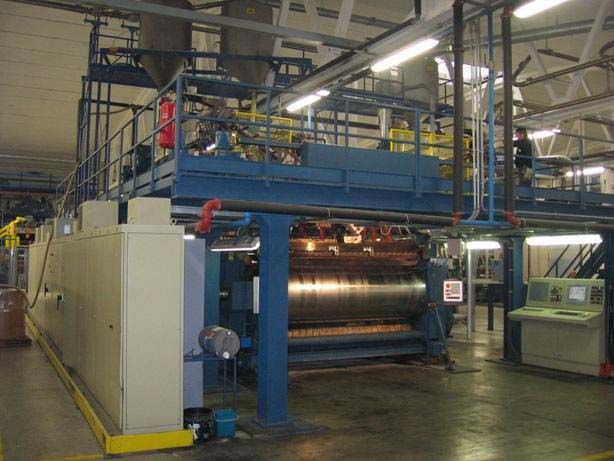

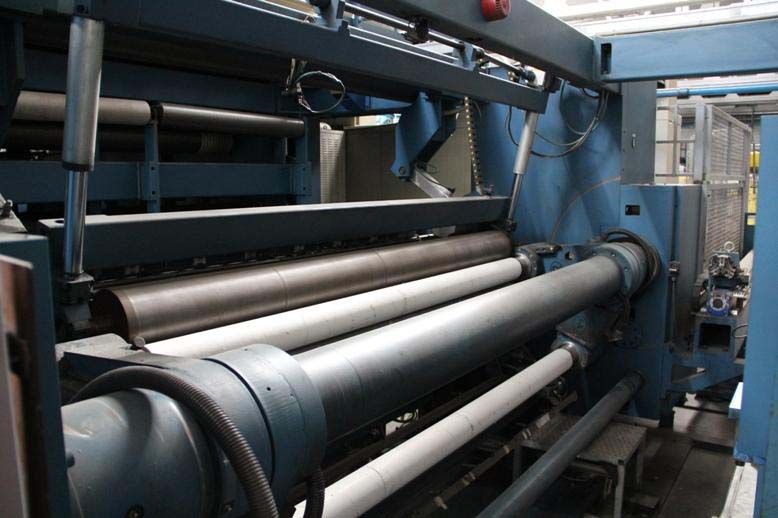

Altex Cast Line for strecth film
RUSSIA and Central Asia
Film extrusion lines
Manufacturer: ALTEK - PROVERA
Year: 2001
Number of layers: 3
Film structure: ABC (foreseen for extension to 4 layer ABCD)
Material: LLDPE stretch film
Film width (mm): 2000
Speed (m/min): 700 mpm mechanical; 600mpm production
Output (Kg/h): 1000
Extruder A Screw diam: 120mm L/D 30; RPM screw 100; Motor power 205Kw; heating power
86Kw; Output 650Kg/h; Hardness screw and barrel 63HRC
Extruder B Screw diam: 160mm L/D 30; RPM screw 100; Motor power 340Kw; heating power
125Kw; Output 840Kg/h; Hardness screw and barrel 63HRC;
Extruder C Screw diam: 80mm L/D 30; RPM screw 100; Motor power 94Kw; heating power 40Kw;
Output 300Kg/h;Hardness screw and barrel 63HRC;
Head description: Head Type: L13 RB CN BA; flex lip with thermo bolts evrey 25 mm for profile
adjustments; 94 thermo bolts with electric heater 150 W each; Lip finishing with Ra
