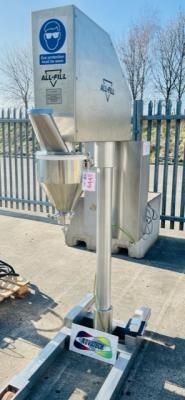

All Fill S10, Powder Filler

Semi automatic powder filler in stainless steel Conical product hopper 530mm dia x approx 500mm deep,
gross volume approx 25-35 litres.
The hopper has a rotating scraper arm
which assists the product flow by preventing product
bridging in the narrow zone of the hopper.
There is a 40mm dia auger/funnel set with mirror polished finish.
A freeflow set is fitted to the auger to stop product leakage between fills.
The hopper has a safety interlocked top cover
with a 200mm x 100mm hatch and cover
and a 120mm dia powder loading port
and a level sensor which controls the loading cycle pneumatic transfer system.
The machine QUANTUM II control panel
features stop/start; emergency stop;
mode selector; fill enable; status;
auger setting; cut off; agitation; empty hopper.
The machine is mounted onto a column
with a 700mm x 500mm base and there is
a position adjustable 310mm dia platform
for the container being filled. Overall height 2.2m

Touchscreen HMI control panel, previously
used for micro-dosing. Auger and funnel set 5mm dia.
