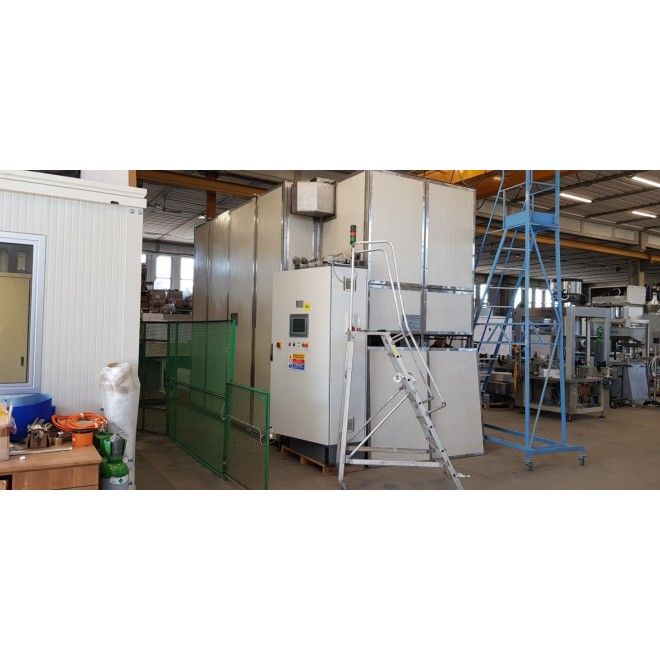

Alco CONTINUOUS DRYER OVEN + QEL

The system consists of 3 fundamental parts:
-Section of dehydration
- Air handling unit, later AHU
-Product lifting / feeding belt with inclination equal to 45 °

Technical features
Installed power Kw 30
Production capacity of fresh sliced ​​mushrooms Kg / h 18-20 approximately
Total machine length approximately 10,000 mm including the elevator
Total machine width approx.2,400 mm
Overall height approx. 4,300 mm
Weight 3,500 kg
Useful belt length 3600 mm approx. Each level
Useful belt width 1000 mm approx. Each level

COMPLETE WITH PRODUCT LOADING ELEVATOR AND STAR VALVE
Compressor Brand BITZER
N.1 model 4G.30.2Y-40P
Alternative semi-hermetic
1 degree of partialization 50%
ALCO oil separator
Model: OSH413-CE
ONDA liquid receiver
Model: RL30 / S-CE0
Volume 30 l
ALCO filter drier
Model FDS247
Safety valve NEW GENERAL INSTRUMENTS
Model D10 / CS
Calibration pressure: 28 bar
ALCO thermostatic valve
Model TX6-M07
ALCO low / high pressure switch
PS2 model
Manual reset A / B
BITZER oil differential pressure switch
Model KT-170-5
High pressure probe Pressure range 0-30 bar
Current measurement 4.20 mA
Low pressure probe Pressure range 0-10 bar
Current measurement 4.20 mA
