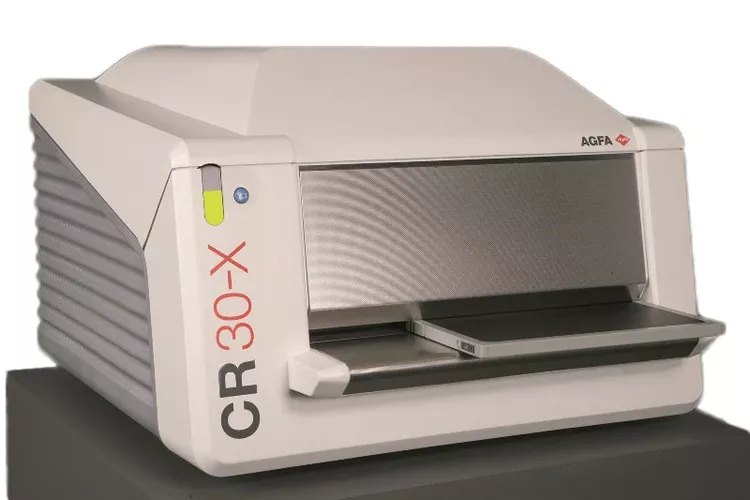

Agfa CR 30 X

Condition: Refurbished

SPECIFICATIONS GENERAL
Digitizer type
• Model number : 5175/100, 5175/105
• Single cassette feed
• Throughput model number 5175/100: 35 x 43 cm (14 x 17”) = approx. 60 plates/hour
• Throughput model number 5175/105: 35 x 43 cm (14 x 17”) = approx. 35 plates/hour
Display
• LED Status Indicator
• Status and error messages on external PC monitor Greyscale resolution
• Data acquisition: 20 bits/pixel
• Output to processor: 16 bits/pixel Dimensions and weight
• (W x D x H): 693 x 701 x 464 mm (27.2 x 27.6 x 18.2”) Depth including input tray: 769 mm (30.3”)
• Weight: approx. 80 kg (176 lbs) Power
• 220 - 240 V/50-60 Hz Standby 120W, max 320W, 16A fuse
• 120V/60Hz (USA) Standby 120W, max 320W, 15A fuse
• 100V/60Hz (Japan) Standby 120W, max 320W, 15A fuse Minimum requirements }
• CR MD4.0T General Cassette
• CR MD4.0T FLFS Cassette
• CR MD4.0 General Plate
• NX Environmental conditions
• Temperature: 15 - 30° C (59 - 86° F)
• Humidity: 15 - 80 % RH
• Magnetic fields: max. 3.8 µT in conformance with EN 61000-4-8: level 2
• Rate of change of temperature: 0.5° C/minute (0.9° F) Environmental effects
• Noise level: max. 65 dB (A)
• Heat dissipation: standby 120 W, max. 320 W SAFETY Approvals
• UL, cUL, CE Transport details
• Temperature: -25 to +55° C (-4 to 131° F), -25° C for max. 72 hours, +55 °C for max. 96 hours
• Humidity: 5 - 95 % RH
