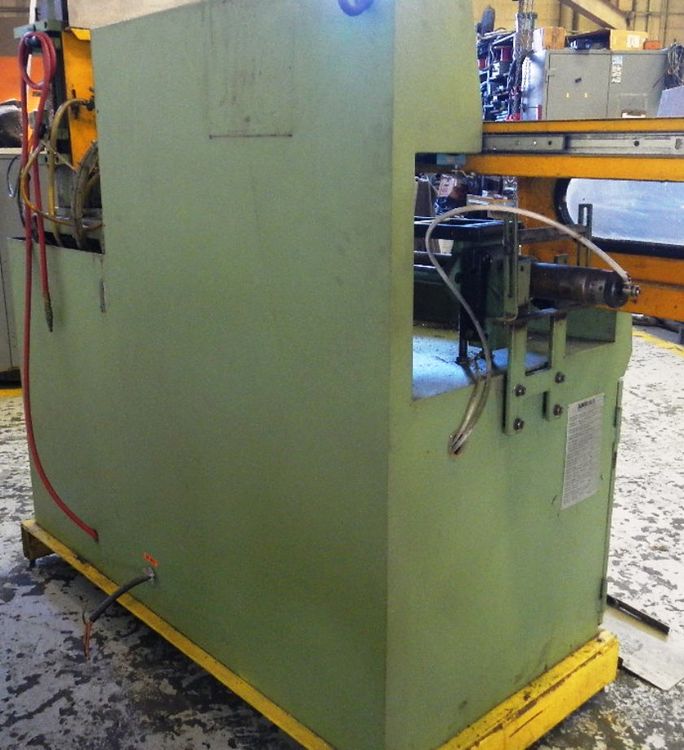

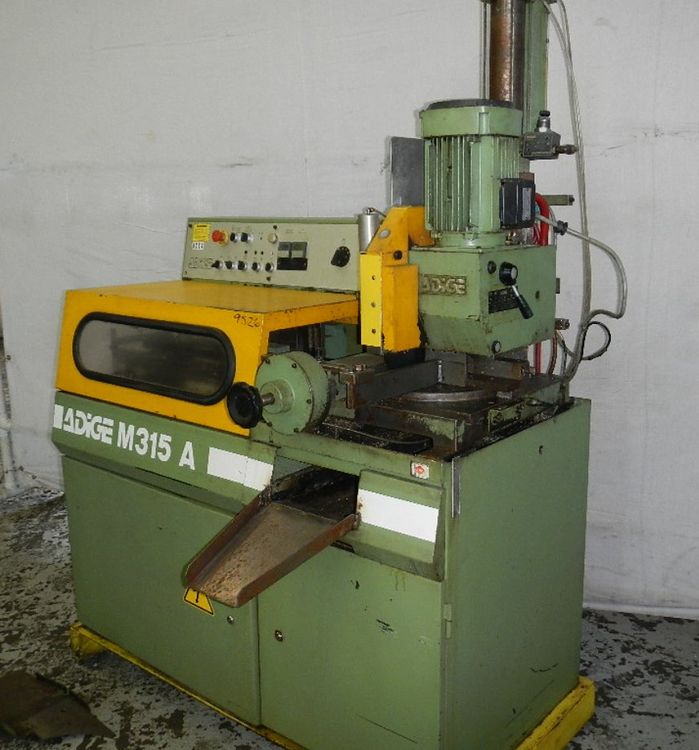

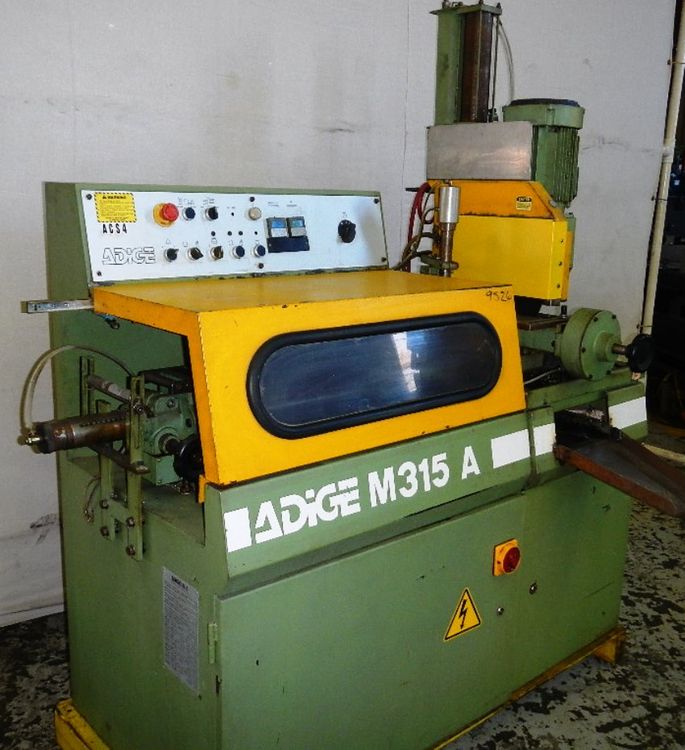

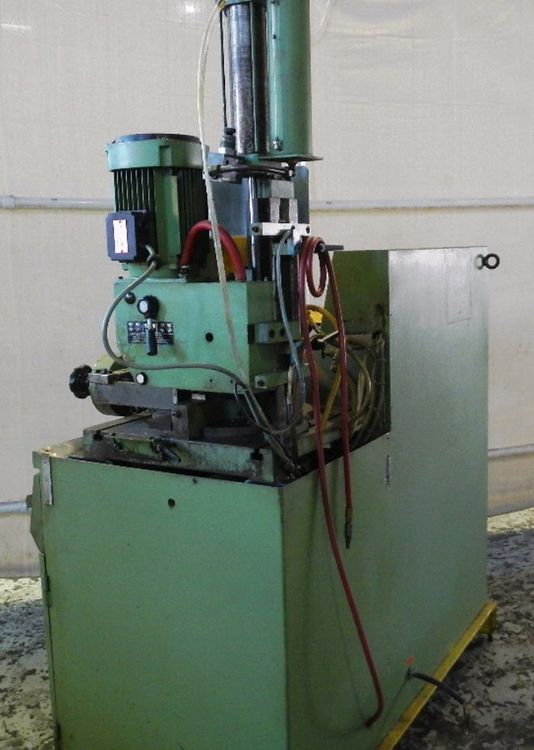

Adige M315A Cold Saw Machine

Ref : 985286-3-W
Condition : Used
Manufacturer : Adige
Model : M315A
Type : Cold Saw Machine
Controller : -
Year(s) : 1988
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 16 Nov. 2024

ADIGE Model: M315A
Cold Saw Machine

Maximum saw blade diameter 315 mm (12 1/2")
Cut length 1 1/4" - 60"
Cutting capacity round tube 3 7/8"
round solid 2"
square tube 3 1/8" x 3 1/8"
square solid 2" x 2"

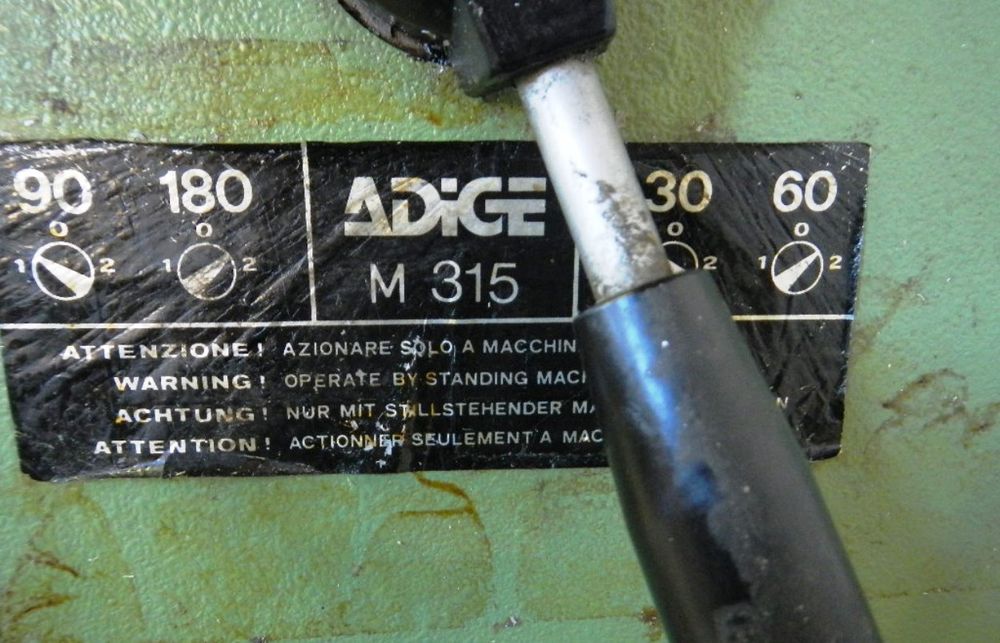

Cutting speeds 30 / 60 / 90 / 180 rpm
Work height 41 1/2"
Motor 2.2 / 1.8 KW 3 / 2.4 HP
Voltage 230V

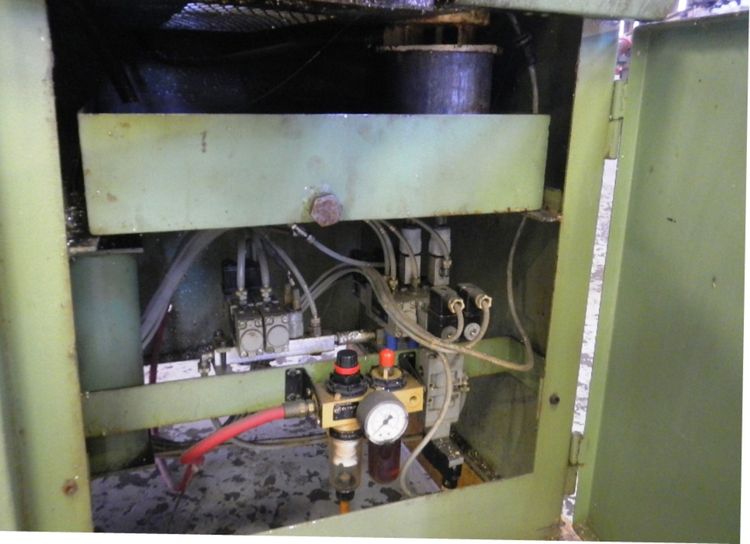

Air pressure 90 Lbs.
Dimensions 65" x 32" x 80" high
Approximate weight 3,250 lbs.

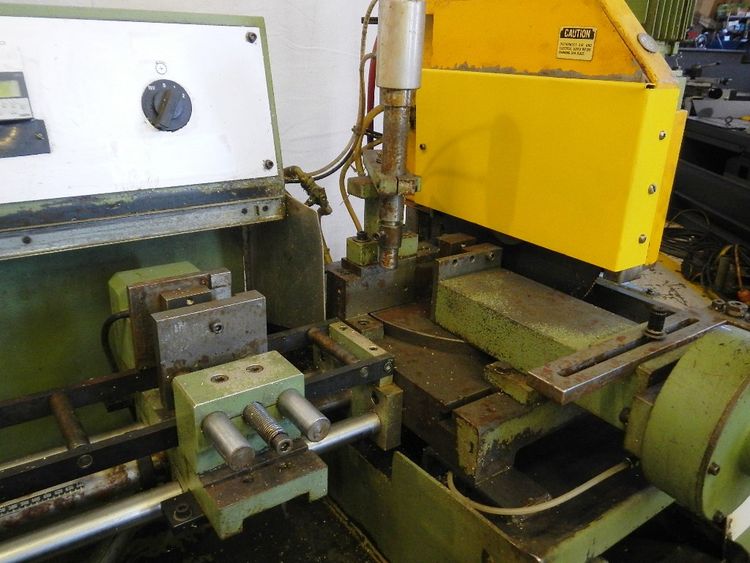

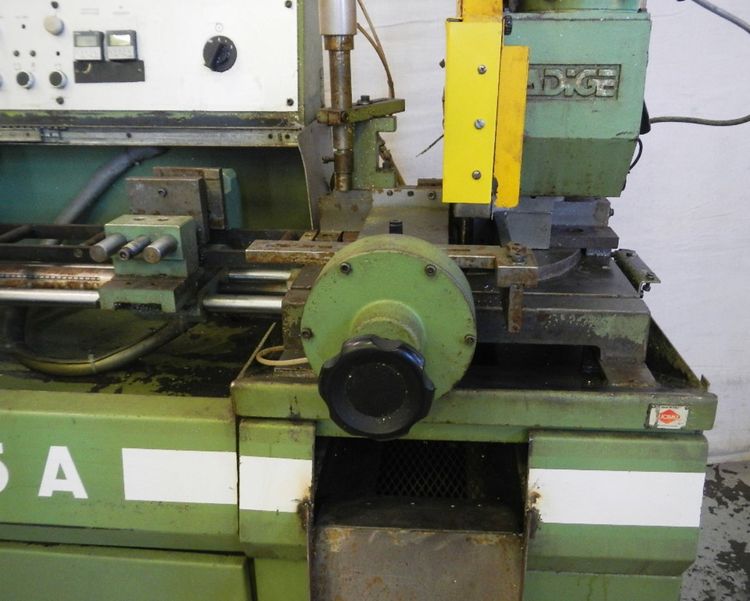

Machine is equipped with full auto feed, adjustable feed cutting pressure, adjustable blade stroke via limit switches, digital length of cut, multistroke, dual clamps on cutting area (vertical & horizontal), 4-speed gearbox, coolant, removable chip drawer.
